JOHNSON CONTROLS
35
SECTION 2 - OPTIVIEW CONTROL CENTER INTRODUCTION
FORM 160.78-O2
ISSUE DATE: 5/22/2017
2
OVERVIEW
This screen displays a cutaway view of the chiller com-
pressor, revealing the impeller, and shows all condi-
tions associated with the compressor. In addition, with
the proper Access Level, the pre-rotation vanes may be
calibrated. Animation of the compressor impeller indi-
cates whether the chiller is presently in a RUN condi-
tion. This screen also serves as a gateway to subscreens
for calibrating the pre-rotation vanes, jumping to ca-
pacity control for manual controls, and displaying
MBC, Surge and VGD detail.

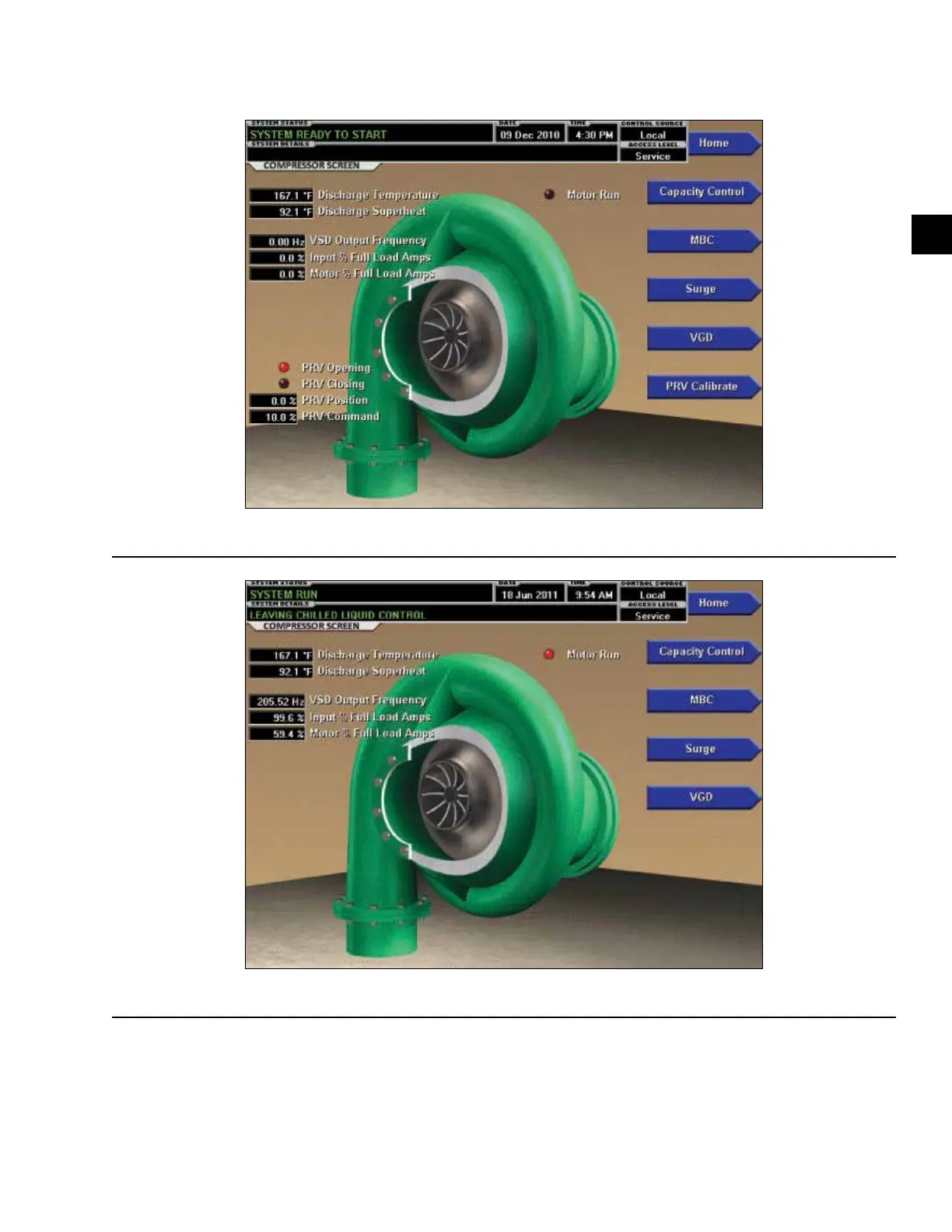

COMPRESSOR SCREEN
LD16112
FIGURE 12 - COMPRESSOR SCREEN - GAS PATH REVISION "A"
LD14853c
FIGURE 13 - COMPRESSOR SCREEN - GAS PATH REVISION "B"
