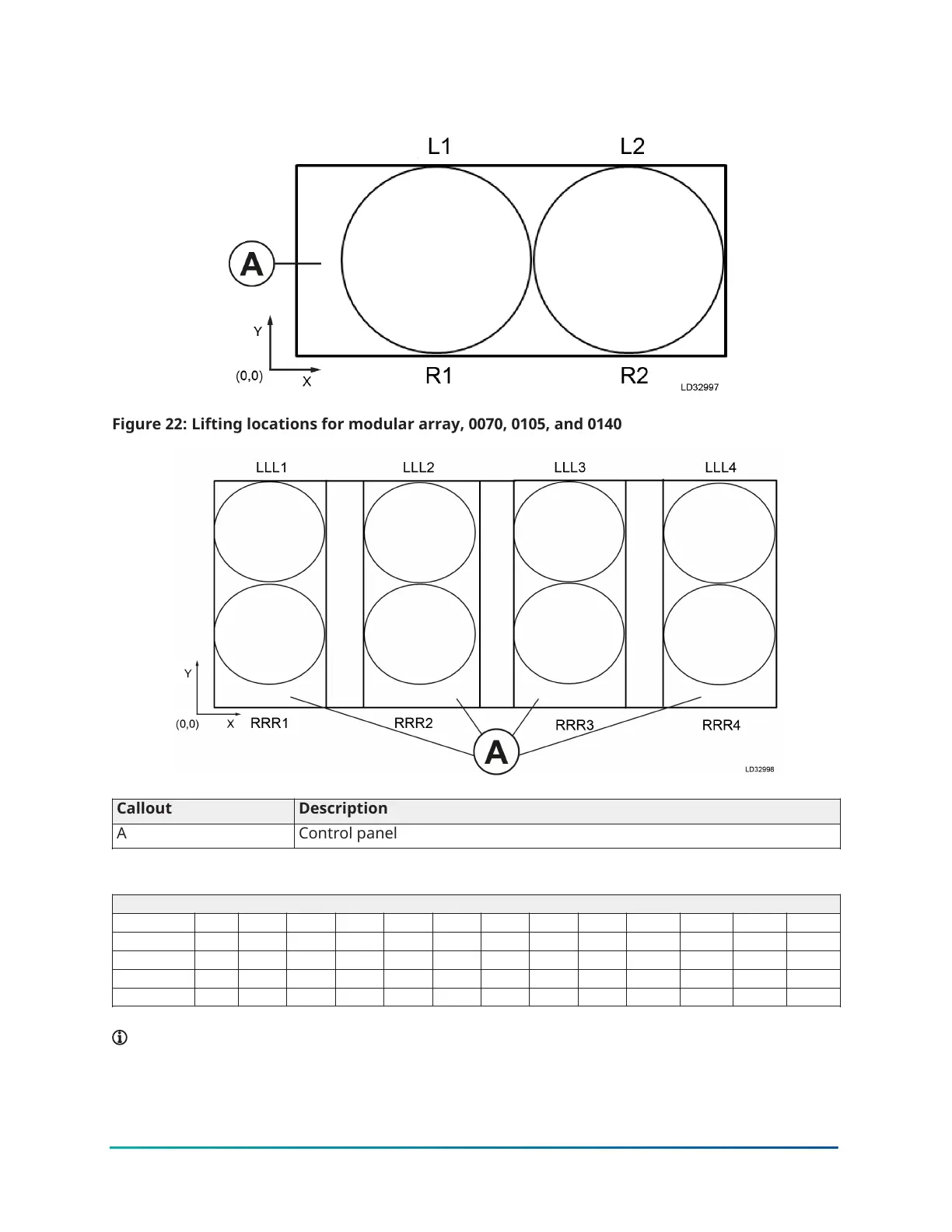

Figure 21: Lifting locations for single module, 0035
Figure 22: Lifting locations for modular array, 0070, 0105, and 0140
Callout Description
A Control panel
Table 4: Unit lifting locations
Location coordinates (X, Y)
R1 L1 R2 L2 RR1 LL1 RR2 LL2 RR3 LL3 RR4 LL4
X Distance mm 223 223 2,017 2,017 600 600 2,450 2,450 4,300 4,300 6,150 6,150
Y Distance mm 0 1,199 0 1,199 39 2,201 39 2,201 39 2,201 39 2,201
X Distance in. 8.78 8.78 79.41 79.41 23.62 23.62 96.46 96.46 169.29 169.29 242.13 242.13
Y Distance in. 0.00 47.20 0.00 47.20 1.54 86.65 1.54 86.65 1.54 86.65 1.54 86.65
Note: Coordinates are measured from the geometric center of the unit, excluding the hydro
kit.
37YMAE Air-Cooled Inverter Scroll Chiller and Heat Pump
