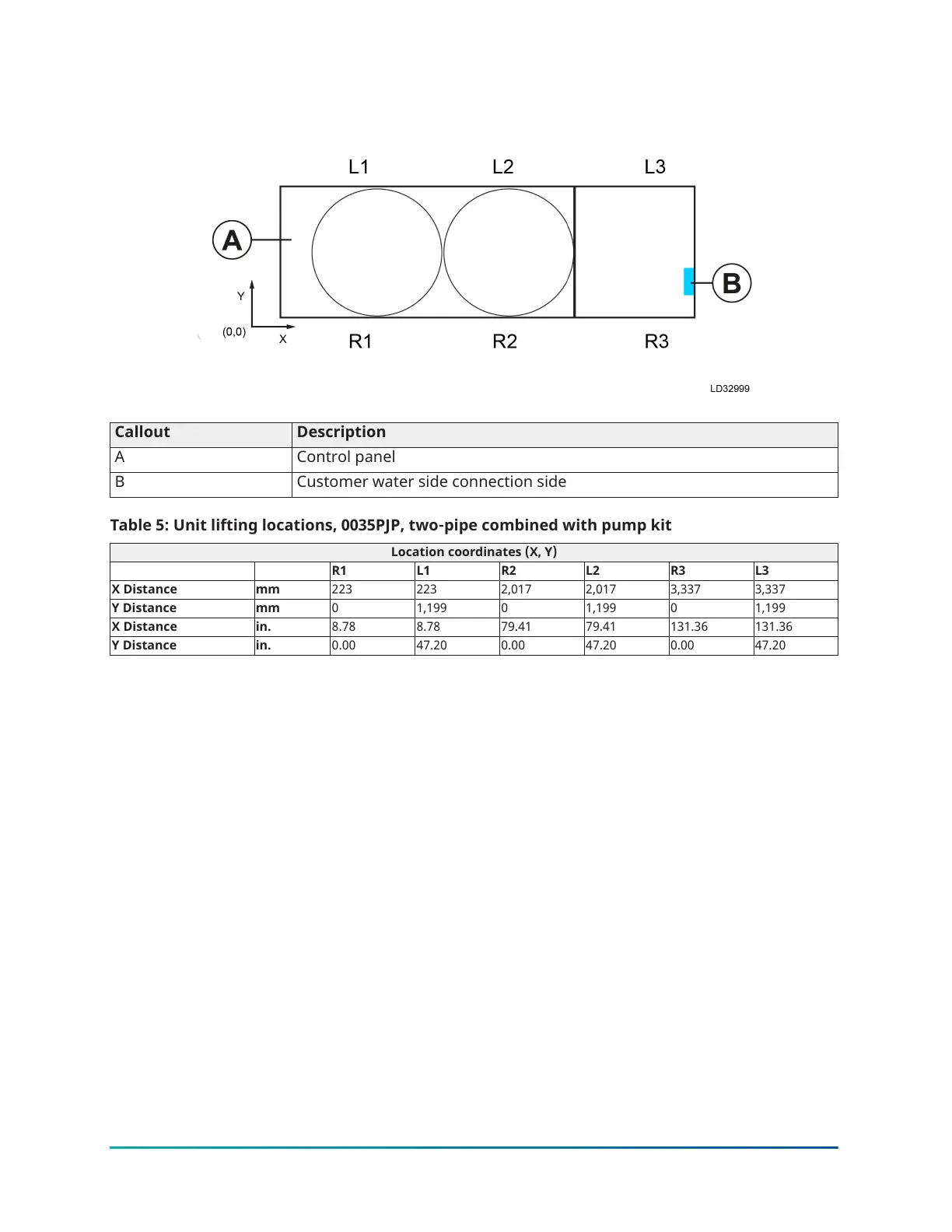

Figure 23: Lifting locations for modular array, 0035PJP with two-pipe combined pump kit,
0035SA/0035DA
Callout Description
A Control panel
B Customer water side connection side
Table 5: Unit lifting locations, 0035PJP, two-pipe combined with pump kit
Location coordinates (X, Y)
R1 L1 R2 L2 R3 L3
X Distance mm 223 223 2,017 2,017 3,337 3,337
Y Distance mm 0 1,199 0 1,199 0 1,199
X Distance in. 8.78 8.78 79.41 79.41 131.36 131.36
Y Distance in. 0.00 47.20 0.00 47.20 0.00 47.20
YMAE Air-Cooled Inverter Scroll Chiller and Heat Pump38
