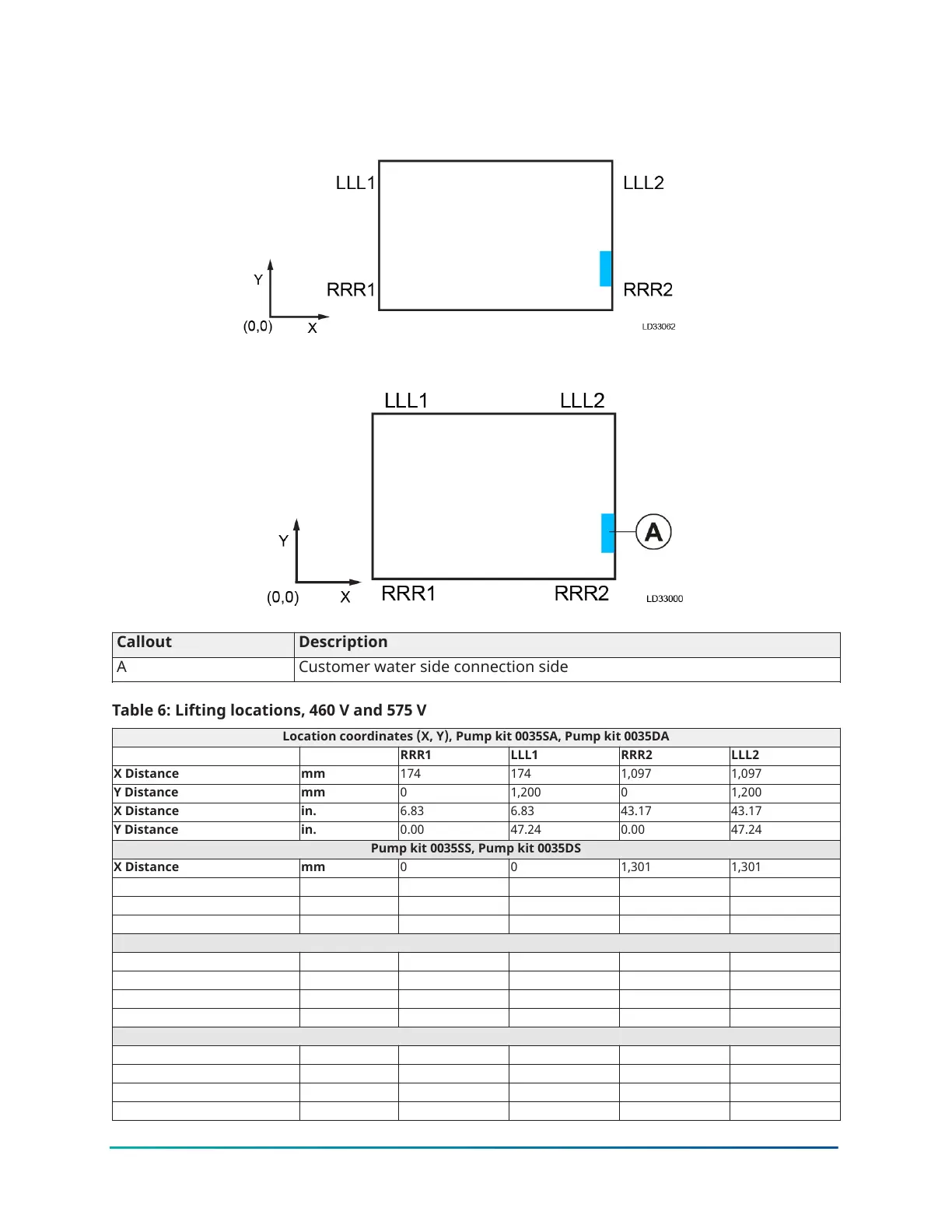

Figure 24: Lifting locations for pump kits only, 0035*S, 0070*S, single and dual, 450 V and 575 V
Figure 25: Lifting locations for pump kits only, 0035*A, 0105*S, single and dual, 450 V and 575 V
Callout Description
A Customer water side connection side
Table 6: Lifting locations, 460 V and 575 V
Location coordinates (X, Y), Pump kit 0035SA, Pump kit 0035DA
RRR1 LLL1 RRR2 LLL2
X Distance mm 174 174 1,097 1,097
Y Distance mm 0 1,200 0 1,200
X Distance in. 6.83 6.83 43.17 43.17
Y Distance in. 0.00 47.24 0.00 47.24
Pump kit 0035SS, Pump kit 0035DS
X Distance mm 0 0 1,301 1,301
Y Distance mm 185 815 185 815
X Distance in. 0.00 0.00 51.22 51.22
Y Distance in. 7.28 32.09 7.28 32.09
Pump kit 0070SS, Pump kit 0070DS
X Distance mm 0 0 1,663 1,663
Y Distance mm 255 920 255 920
X Distance in. 0.00 0.00 65.47 65.47
Y Distance in. 10.02 36.22 10.02 36.22
Pump kit 0105SS, Pump kit 0105DS
X Distance mm 414 414 1,635 1,635
Y Distance mm 0 1,403 0 1,403
X Distance in. 16.28 16.28 64.35 64.35
Y Distance in. 0.00 55.24 0.00 55.24
