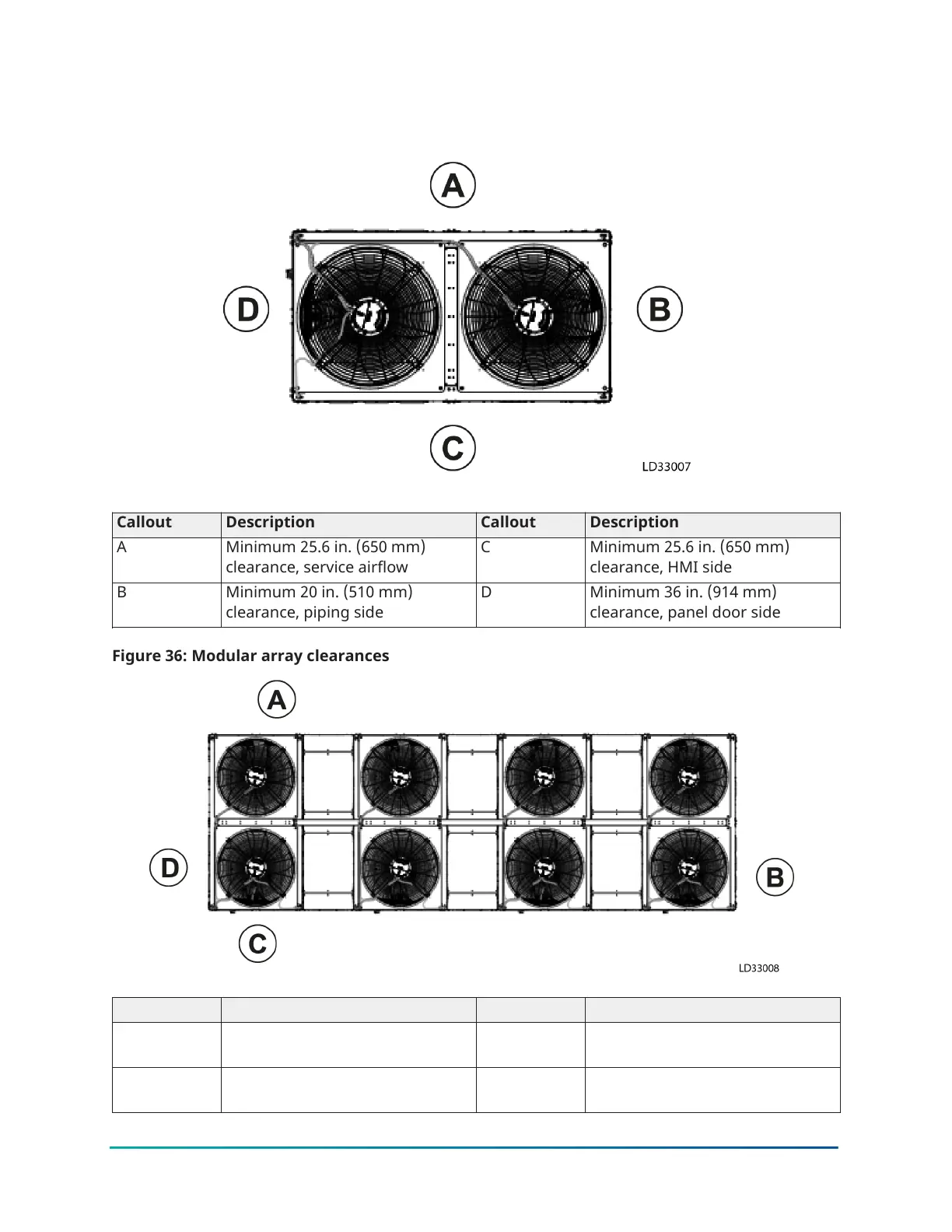

Figure 35: Single module clearances
Callout Description Callout Description
A Minimum 25.6 in. (650 mm)
clearance, service airflow
C Minimum 25.6 in. (650 mm)
clearance, HMI side
B Minimum 20 in. (510 mm)
clearance, piping side
D Minimum 36 in. (914 mm)
clearance, panel door side
Figure 36: Modular array clearances
Callout Description Callout Description
A Minimum 20 in. (510 mm)
clearance, piping side
C Minimum 36 in. (914 mm)
clearance, panel door side
B Minimum 25.6 in. (650 mm)
clearance, HMI side
D Minimum 25.6 in. (650 mm)
clearance, service airflow
49YMAE Air-Cooled Inverter Scroll Chiller and Heat Pump
