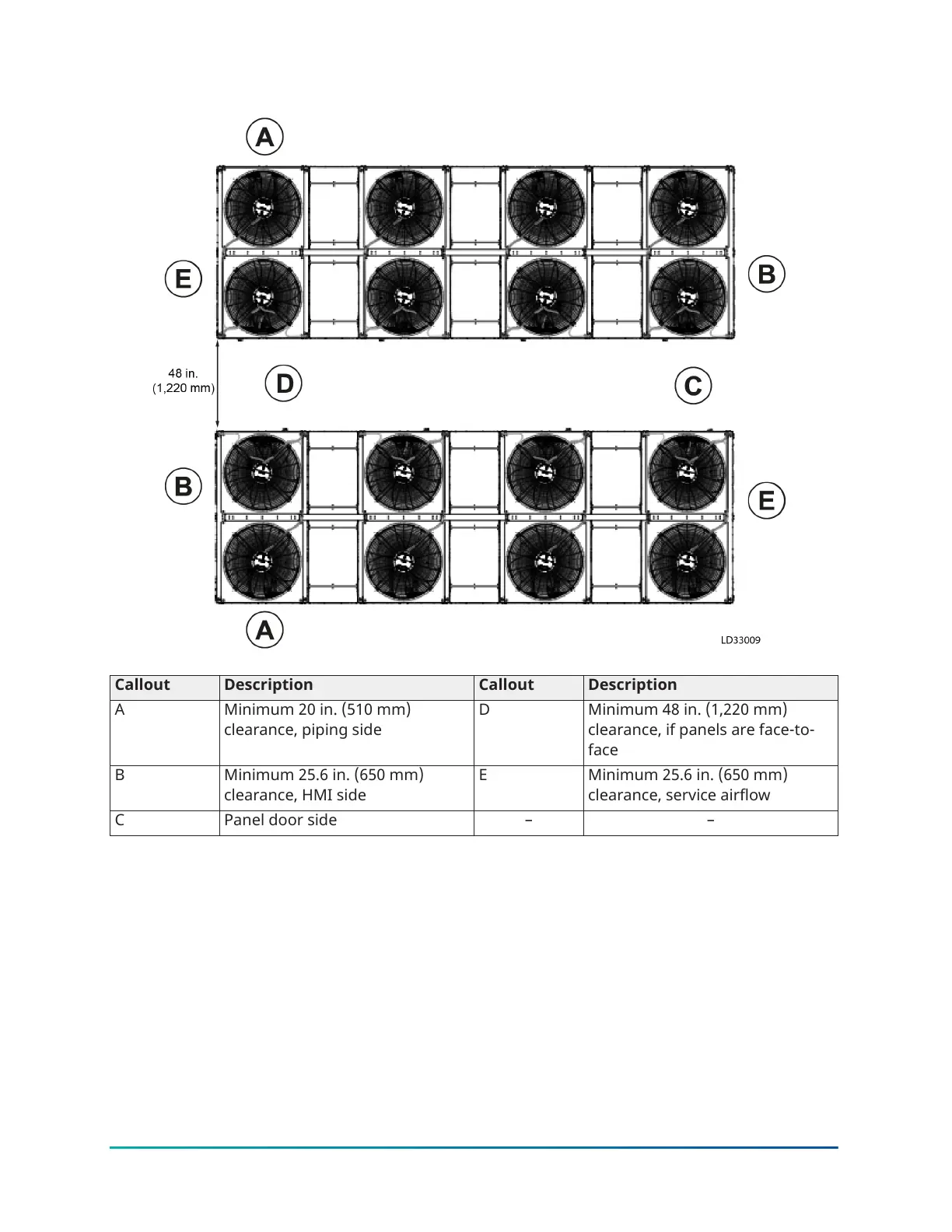

Figure 37: Modular array panel face-to-face clearance
Callout Description Callout Description
A Minimum 20 in. (510 mm)
clearance, piping side
D Minimum 48 in. (1,220 mm)
clearance, if panels are face-to-
face
B Minimum 25.6 in. (650 mm)
clearance, HMI side
E Minimum 25.6 in. (650 mm)
clearance, service airflow
C Panel door side – –
YMAE Air-Cooled Inverter Scroll Chiller and Heat Pump50
