Figure 70: Lifting locations for single module, 0035

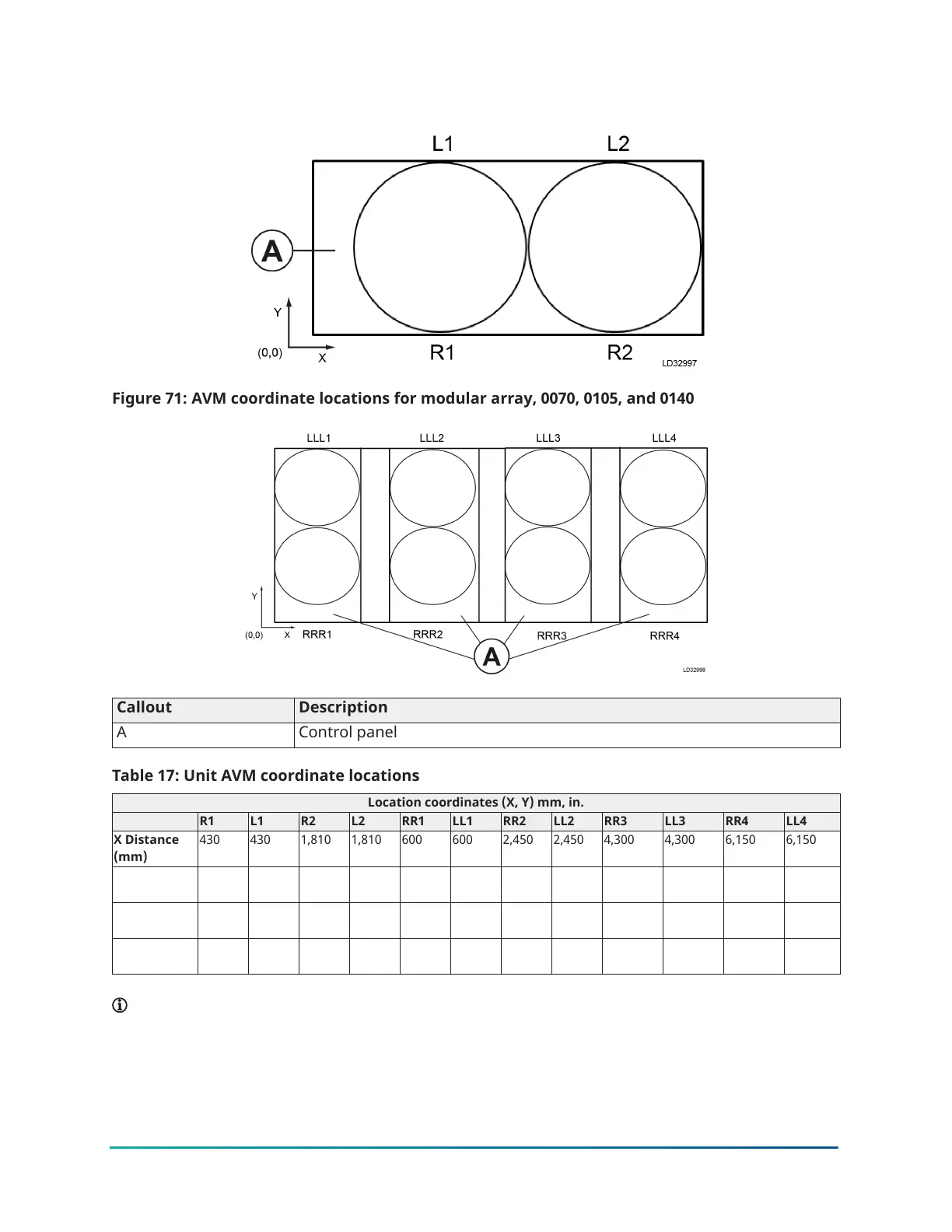

Figure 71: AVM coordinate locations for modular array, 0070, 0105, and 0140
Callout Description
A Control panel
Table 17: Unit AVM coordinate locations
Location coordinates (X, Y) mm, in.
R1 L1 R2 L2 RR1 LL1 RR2 LL2 RR3 LL3 RR4 LL4
X Distance
(mm)
430 430 1,810 1,810 600 600 2,450 2,450 4,300 4,300 6,150 6,150
Y Distance
(mm)
39 1,161 39 1,161 39 2,201 39 2,201 39 2,201 39 2,201
X Distance
(in.)
16.93 16.93 71.26 71.26 23.62 23.62 96.46 96.46 169.29 169.29 242.13 242.13
Y Distance
(in.)
1.54 45.71 1.54 45.71 1.54 86.65 1.54 86.65 1.54 86.65 1.54 86.65
Note: Coordinates are measured from the geometric center of the unit, excluding the hydro
kit.
