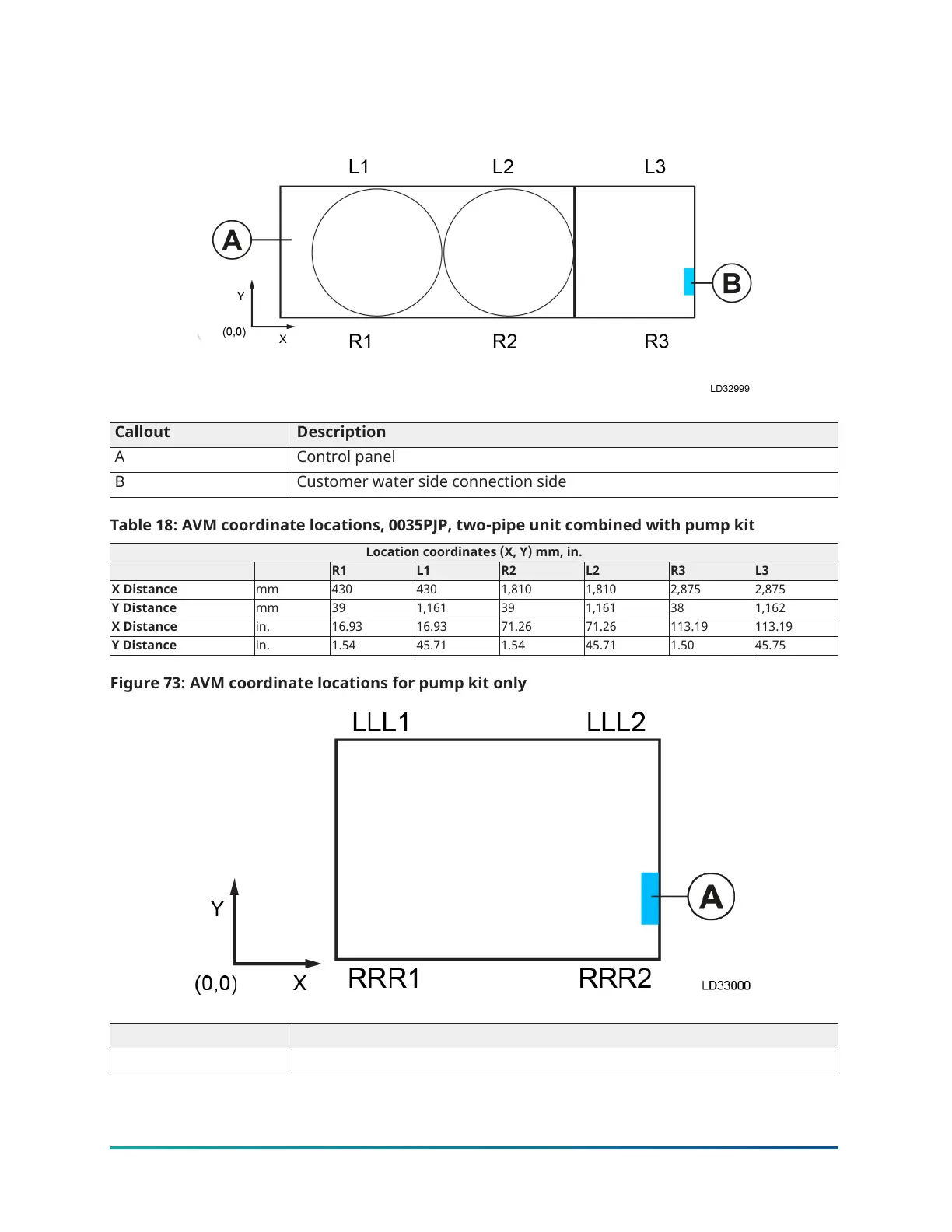

Figure 72: AVM coordinate locations for modular array, 0035PJP two-pipe unit combined pump
kit, 0035SA and 0034DA
Callout Description
A Control panel
B Customer water side connection side
Table 18: AVM coordinate locations, 0035PJP, two-pipe unit combined with pump kit
Location coordinates (X, Y) mm, in.
R1 L1 R2 L2 R3 L3
X Distance mm 430 430 1,810 1,810 2,875 2,875
Y Distance mm 39 1,161 39 1,161 38 1,162
X Distance in. 16.93 16.93 71.26 71.26 113.19 113.19
Y Distance in. 1.54 45.71 1.54 45.71 1.50 45.75
Figure 73: AVM coordinate locations for pump kit only
Callout Description
A Customer water side connection side
YMAE Air-Cooled Inverter Scroll Chiller and Heat Pump98
