Introduction
Control Panel Display
7/3/13 P1056468-002

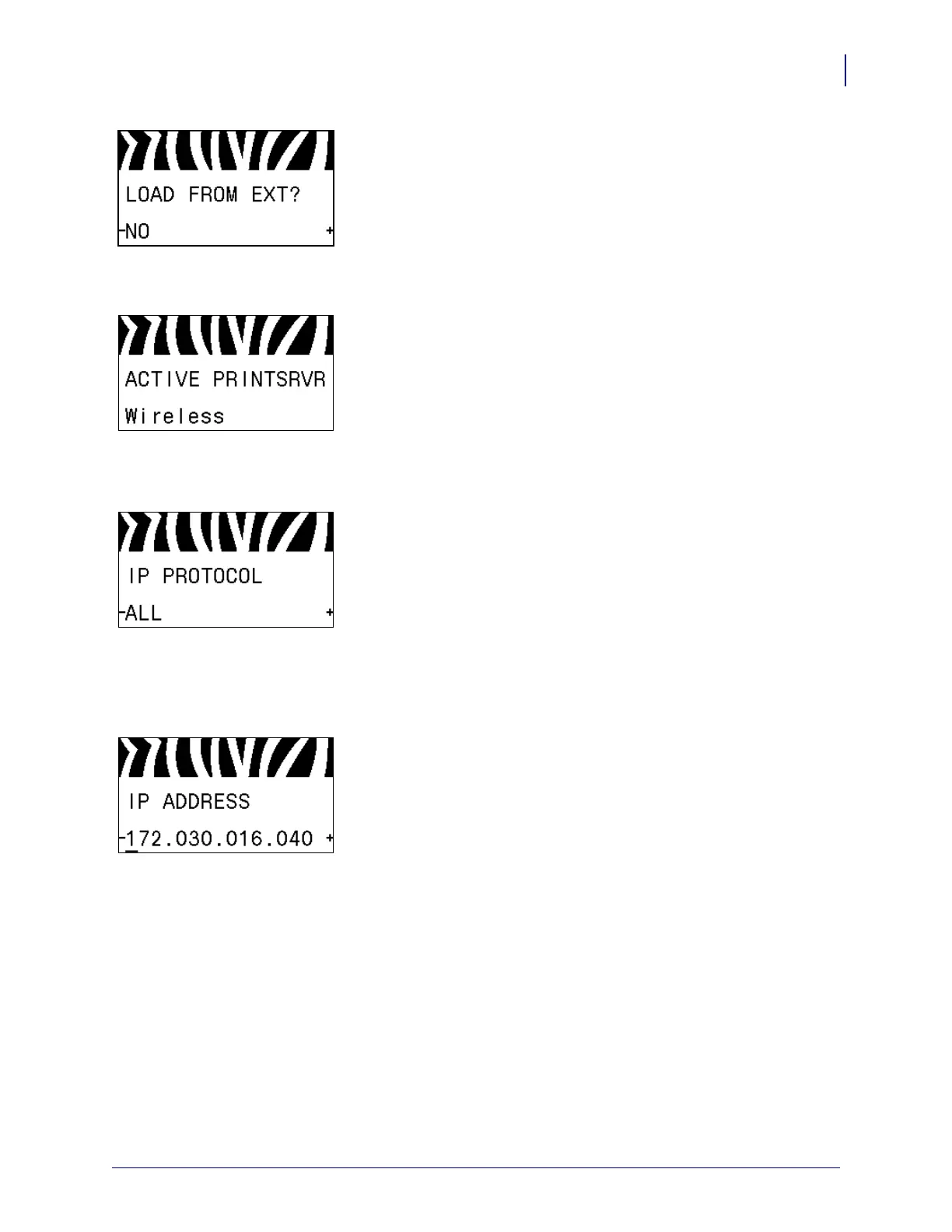

View if IP Settings Are Loaded from the Printer or Print
Server
This parameter tells whether to use the printer’s or the print
server’s LAN/WLAN settings at power-up. The default is to use
the printer’s settings.
See Load from External Device on page 96 for more information.
View the Active Print Server*
This menu item displays which print server is being used. This tells
which device’s settings such as IP protocol and IP address are
being displayed under those menu items.
* This menu item, which cannot be modified from the control
panel, appears only if a wired or wireless print server is
installed in your printer.
Set the IP Resolution Method*
This parameter tells if the user (permanent) or the server (dynamic)
selects the IP address. If a dynamic option is chosen, this
parameter tells the method(s) by which the wired or wireless print
server receives the IP address from the server.
See IP Protocol on page 97 for more information.
* This menu item appears only if a wired or wireless print server
is installed in your printer.
Set the Printer’s IP Address*
View and, if necessary, change the printer’s IP address.
Changes are saved only if IP PROTOCOL is set to
PERMANENT.
To allow any saved changes to take effect, use RESET NETWORK
on page 35 to reset the print server.
See IP Address on page 97 for more information.
* This menu item appears only if a wired or wireless print server
is installed in your printer.

Zebra 105SL Plus Specifications

General

Weight	50 lbs / 22.7 kg
Humidity	20-85% non-condensing
Print Method	Thermal Transfer
Resolution	203 dpi (8 dots/mm)
Max Print Width	4.09 inches / 104 mm
Max Print Speed	12 inches per second / 305 mm per second
Memory	16 MB SDRAM, 8 MB Flash
Media Width	0.79 inches / 20 mm to 4.5 inches / 114 mm
Media Thickness	0.003 inches / 0.076 mm to 0.012 inches / 0.305 mm
Media Types	Continuous, die-cut, black mark
Ribbon Width	2.00 inches / 51 mm to 4.33 inches / 110 mm
Ribbon Length	1476'/450 m
Connectivity	Parallel, Serial
Optional Connectivity	Ethernet, Wireless
Power Requirements	90-264 VAC; 48-62 Hz
Operating Temperature	40°F to 105°F / 5°C to 40°C
Storage Temperature	-40°F to 140°F / -40°C to 60°C
