Introduction
Control Panel Display
34
P1056468-002 7/3/13

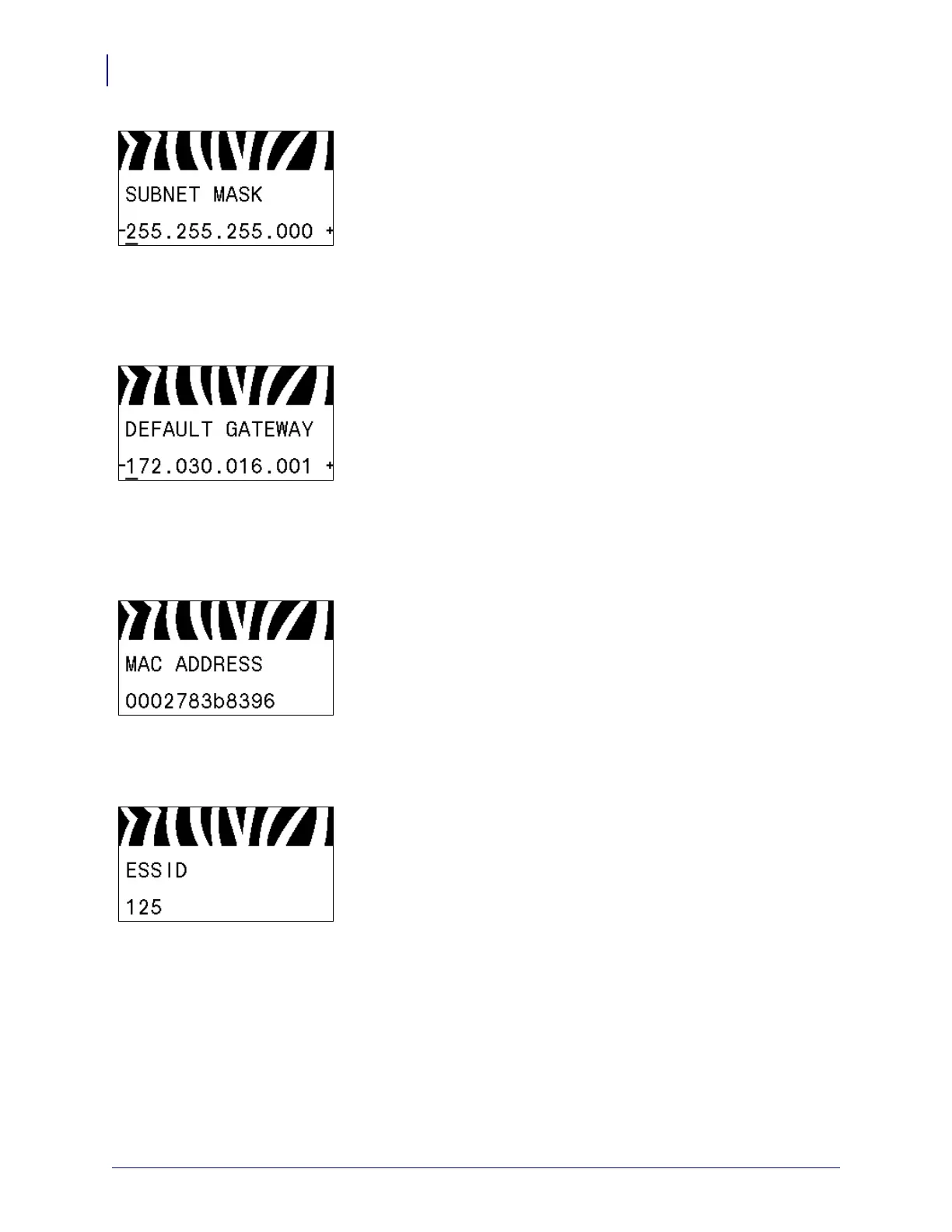

Set the Subnet Mask*
View and, if necessary, change the subnet mask.
Changes are saved only if IP PROTOCOL is set to
PERMANENT.
To allow any saved changes to take effect, use RESET NETWORK
on page 35 to reset the print server.
See Subnet Mask on page 98 for more information.
* This menu item appears only if a wired or wireless print server
is installed in your printer.
Set the Default Gateway*
View and, if necessary, change the default gateway.
Changes are saved only if IP PROTOCOL is set to
PERMANENT.
To allow any saved changes to take effect, use RESET NETWORK
on page 35 to reset the print server.
See Default Gateway on page 98 for more information.
* This menu item appears only if a wired or wireless print server
is installed in your printer.
View the MAC Address*
View the Media Access Control (MAC) address of the print server
that is installed in the printer (wired or wireless).
See MAC Address on page 98 for more information.
* This menu item, which cannot be modified from the control
panel, appears only if a wired or wireless print server is
installed in your printer.
View the ESSID Value*
The Extended Service Set Identification (ESSID) is an identifier
for your wireless network. This setting, which cannot be modified
from the control panel, gives the ESSID for the current wireless
configuration.
See ESSID on page 99 for more information.
* This menu item, which cannot be modified from the control
panel, appears only if a wireless print server is installed in your
printer.

Zebra 105SL Plus Specifications

General

Weight	50 lbs / 22.7 kg
Humidity	20-85% non-condensing
Print Method	Thermal Transfer
Resolution	203 dpi (8 dots/mm)
Max Print Width	4.09 inches / 104 mm
Max Print Speed	12 inches per second / 305 mm per second
Memory	16 MB SDRAM, 8 MB Flash
Media Width	0.79 inches / 20 mm to 4.5 inches / 114 mm
Media Thickness	0.003 inches / 0.076 mm to 0.012 inches / 0.305 mm
Media Types	Continuous, die-cut, black mark
Ribbon Width	2.00 inches / 51 mm to 4.33 inches / 110 mm
Ribbon Length	1476'/450 m
Connectivity	Parallel, Serial
Optional Connectivity	Ethernet, Wireless
Power Requirements	90-264 VAC; 48-62 Hz
Operating Temperature	40°F to 105°F / 5°C to 40°C
Storage Temperature	-40°F to 140°F / -40°C to 60°C
