Zebra 105SL Plus User Manual

35
Introduction
Control Panel Display
7/3/13 P1056468-002

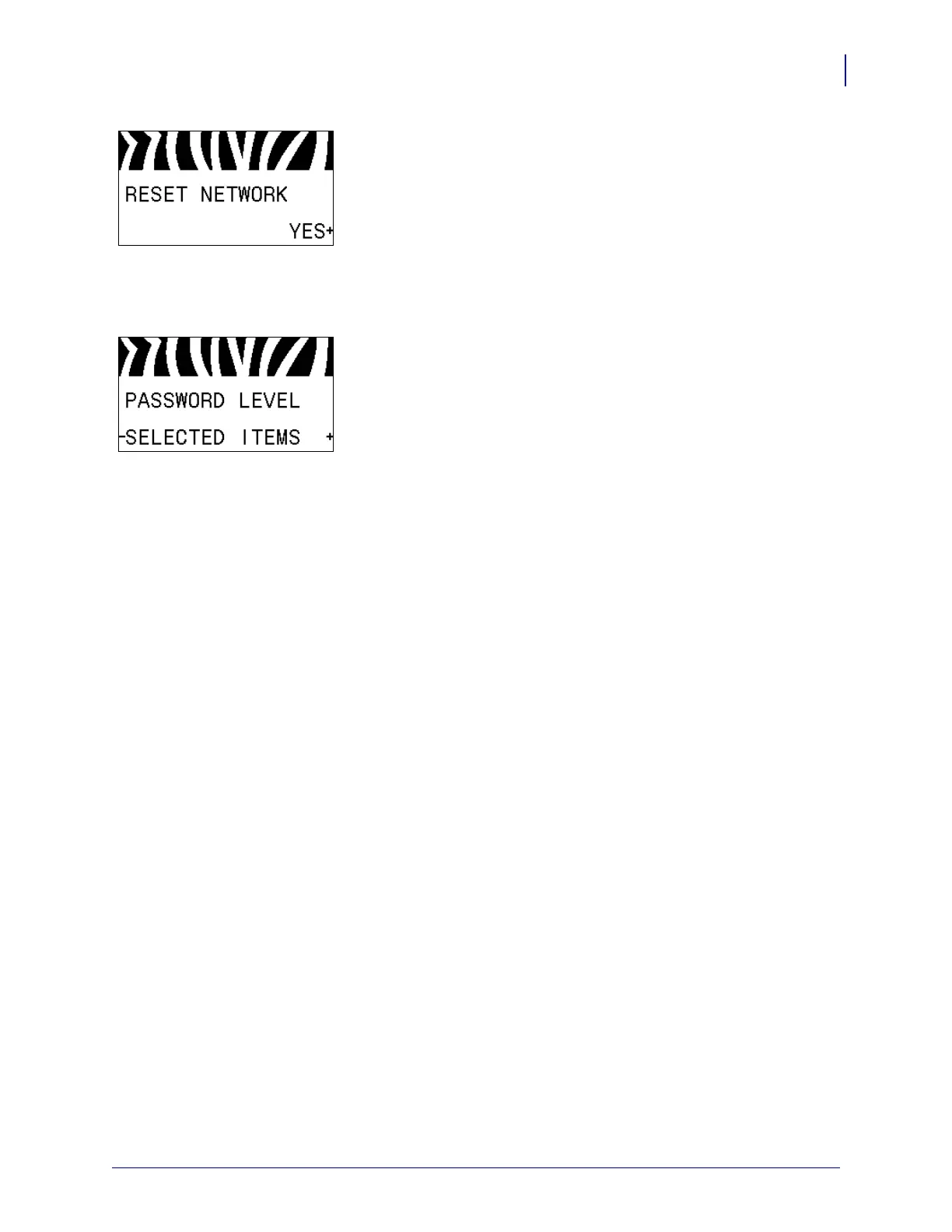

Reset the Network Settings*
This option resets the wired or wireless print server. You must reset
the print server to allow any changes to the network settings to take
effect.
See Reset Network on page 99 for more information.
* This menu item appears only if a wired or wireless print server
is installed in your printer.
Specify the Password Level
This parameter allows you to select whether certain factory-
selected menu items or all menu items are password protected.
See Password Level on page 95 for more information.

Zebra 105SL Plus Specifications

General

Weight	50 lbs / 22.7 kg
Humidity	20-85% non-condensing
Print Method	Thermal Transfer
Resolution	203 dpi (8 dots/mm)
Max Print Width	4.09 inches / 104 mm
Max Print Speed	12 inches per second / 305 mm per second
Memory	16 MB SDRAM, 8 MB Flash
Media Width	0.79 inches / 20 mm to 4.5 inches / 114 mm
Media Thickness	0.003 inches / 0.076 mm to 0.012 inches / 0.305 mm
Media Types	Continuous, die-cut, black mark
Ribbon Width	2.00 inches / 51 mm to 4.33 inches / 110 mm
Ribbon Length	1476'/450 m
Connectivity	Parallel, Serial
Optional Connectivity	Ethernet, Wireless
Power Requirements	90-264 VAC; 48-62 Hz
Operating Temperature	40°F to 105°F / 5°C to 40°C
Storage Temperature	-40°F to 140°F / -40°C to 60°C
