Zebra 105SL Plus User Manual

Printer Setup and Operation
Load the Media
62
P1056468-002 7/3/13

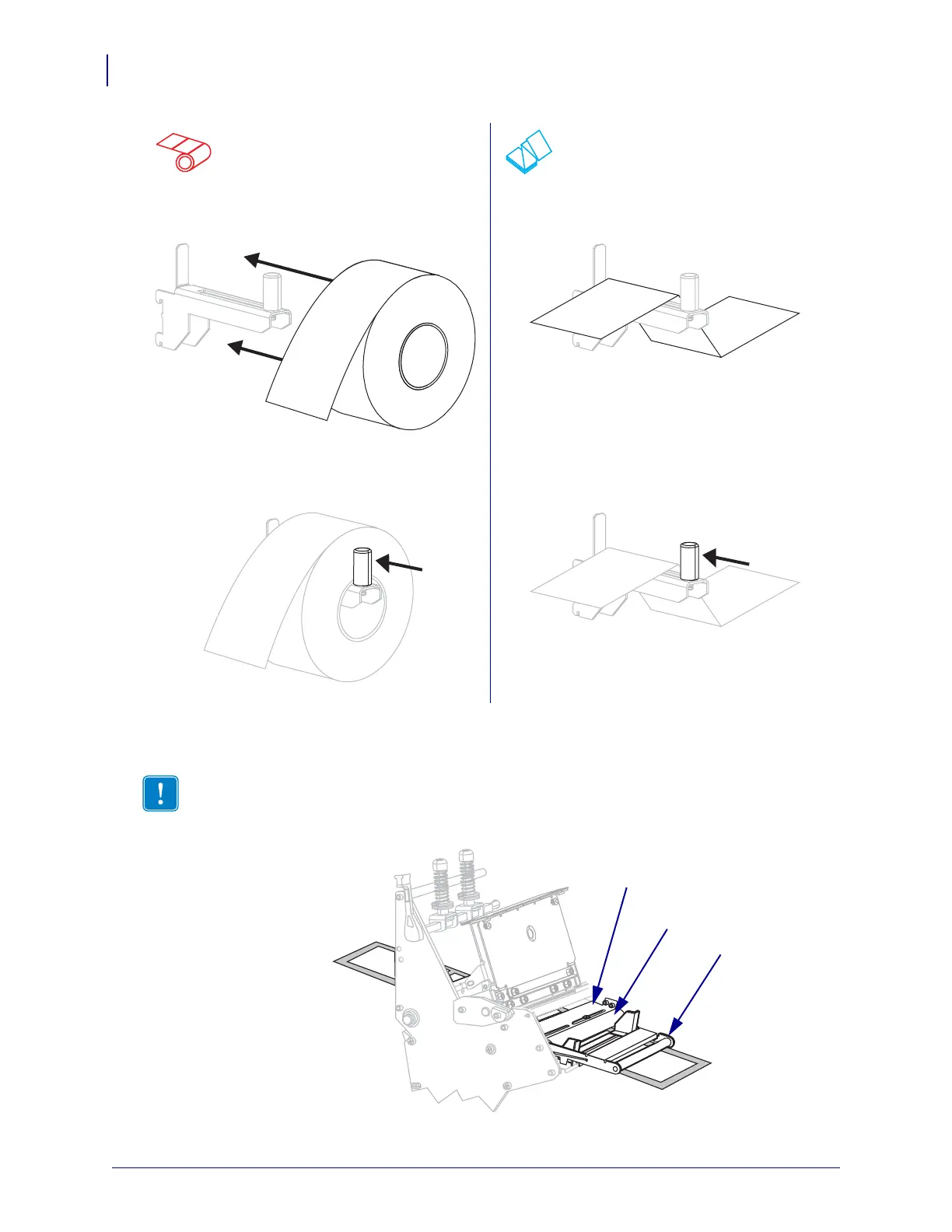

5. Thread the media under the media dancer assembly roller (1), the media guide roller (2),
and then the upper media sensor (
3).
c. Place the roll of media on the media supply
hanger. Push the roll back as far as it will go.
c. Drape the media over the media supply
hanger.
d. Slide in the media supply guide until it
touches the edge of the roll.
d. Slide in the media supply guide until it
touches the edge of the media.
Roll Media (Continued)
Fanfold Media (Continued)
Important • Make sure that you thread the media under these components. If you thread
the media over them, the media obstructs the ribbon sensor and causes a false
RIBBON OUT error.
2
3
1

Zebra 105SL Plus Specifications

General

Weight	50 lbs / 22.7 kg
Humidity	20-85% non-condensing
Print Method	Thermal Transfer
Resolution	203 dpi (8 dots/mm)
Max Print Width	4.09 inches / 104 mm
Max Print Speed	12 inches per second / 305 mm per second
Memory	16 MB SDRAM, 8 MB Flash
Media Width	0.79 inches / 20 mm to 4.5 inches / 114 mm
Media Thickness	0.003 inches / 0.076 mm to 0.012 inches / 0.305 mm
Media Types	Continuous, die-cut, black mark
Ribbon Width	2.00 inches / 51 mm to 4.33 inches / 110 mm
Ribbon Length	1476'/450 m
Connectivity	Parallel, Serial
Optional Connectivity	Ethernet, Wireless
Power Requirements	90-264 VAC; 48-62 Hz
Operating Temperature	40°F to 105°F / 5°C to 40°C
Storage Temperature	-40°F to 140°F / -40°C to 60°C
