Loading the Media
Media widths and thicknesses vary between applications. To maintain print
quality from one application to another, refer to “Print Quality
Adjustments” in Routine Care and Adjustments.
NOTE: Zebra recommends using media that is outside wound (you can see
the labels on the outside of the roll).
Tear-Off Mode
1. Refer to Figure 7. Move the head open lever (a) counterclockwise to the
open position to raise the printhead (b).
2. Slide the media guide (c) and the media supply guide (d) as far out from
the printer frame as possible.
If you are loading roll media in Tear-Off mode, follow steps 3-5. For
loading fanfold media in Tear-Off mode, skip to step 6.
3. Place the media roll on the media supply hanger (e), and thread the me-
dia through the printhead assembly as shown.
S400 & S600 User’s Guide 7
d
c
e
a
b

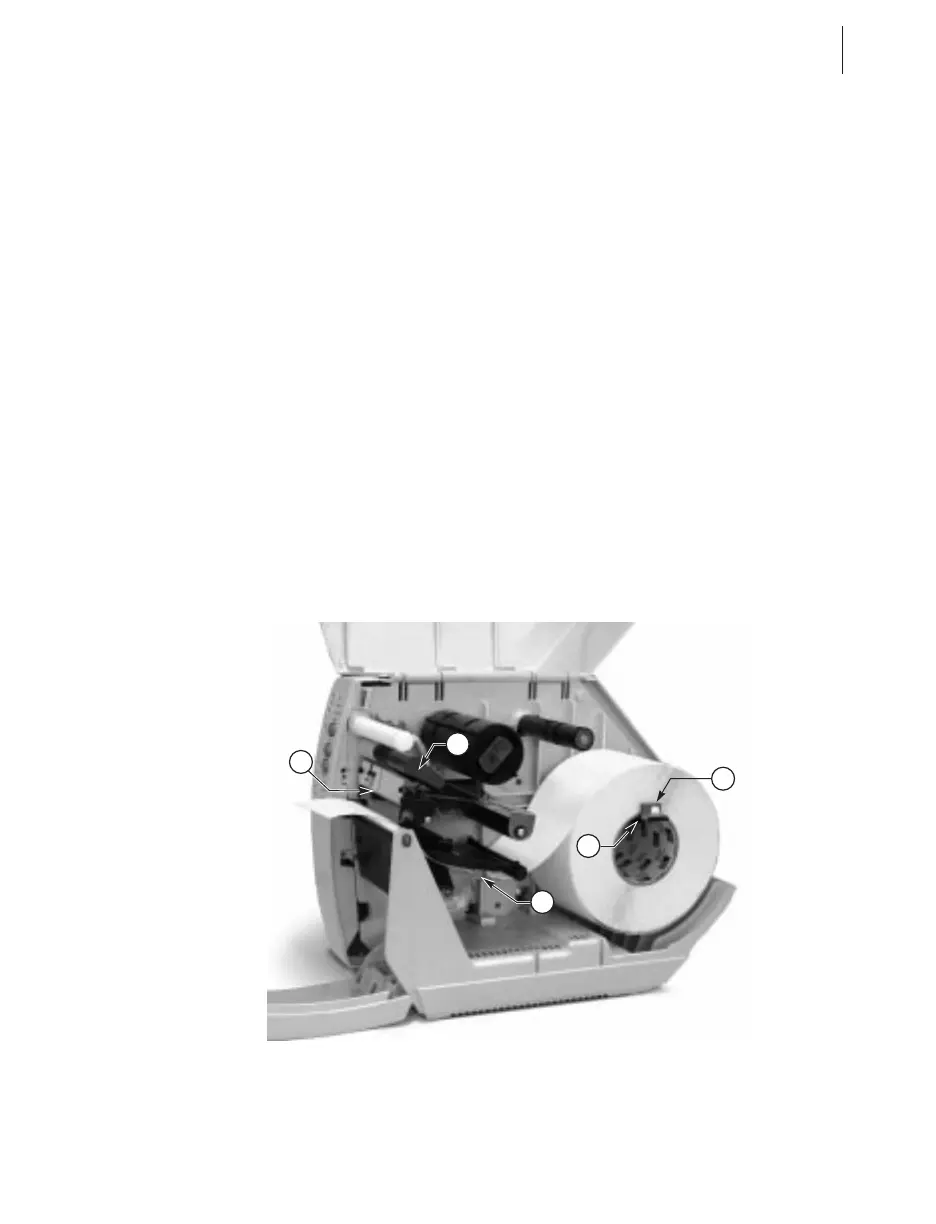

Figure 7
