4. Adjust the media supply guide and the media guide against the outer
edge of the media. These guides must not cause pressure or excessive
drag on the media.
5. Close the head open lever, and see “Adjusting the Media Sensor” later in
this chapter to adjust the media sensor position.
For loading fanfold media:
6. Refer to Figure 8. Make sure the fanfold media feeds through either the
bottom (e) or rear (f) access slot.
NOTE: When utilizing the bottom access slot, be sure to thread media over
the media supply hanger.
7. Thread the media through the printhead as shown in Figure 8.
8. Adjust the media supply guide and the media guide against the outer
edge of the media. These guides must not cause pressure or excessive
drag on the media.
9. Close the head open lever, and see “Adjusting the Media Sensor” later in
this chapter to adjust the media sensor position.
8 S400 & S600 User’s Guide
f
e

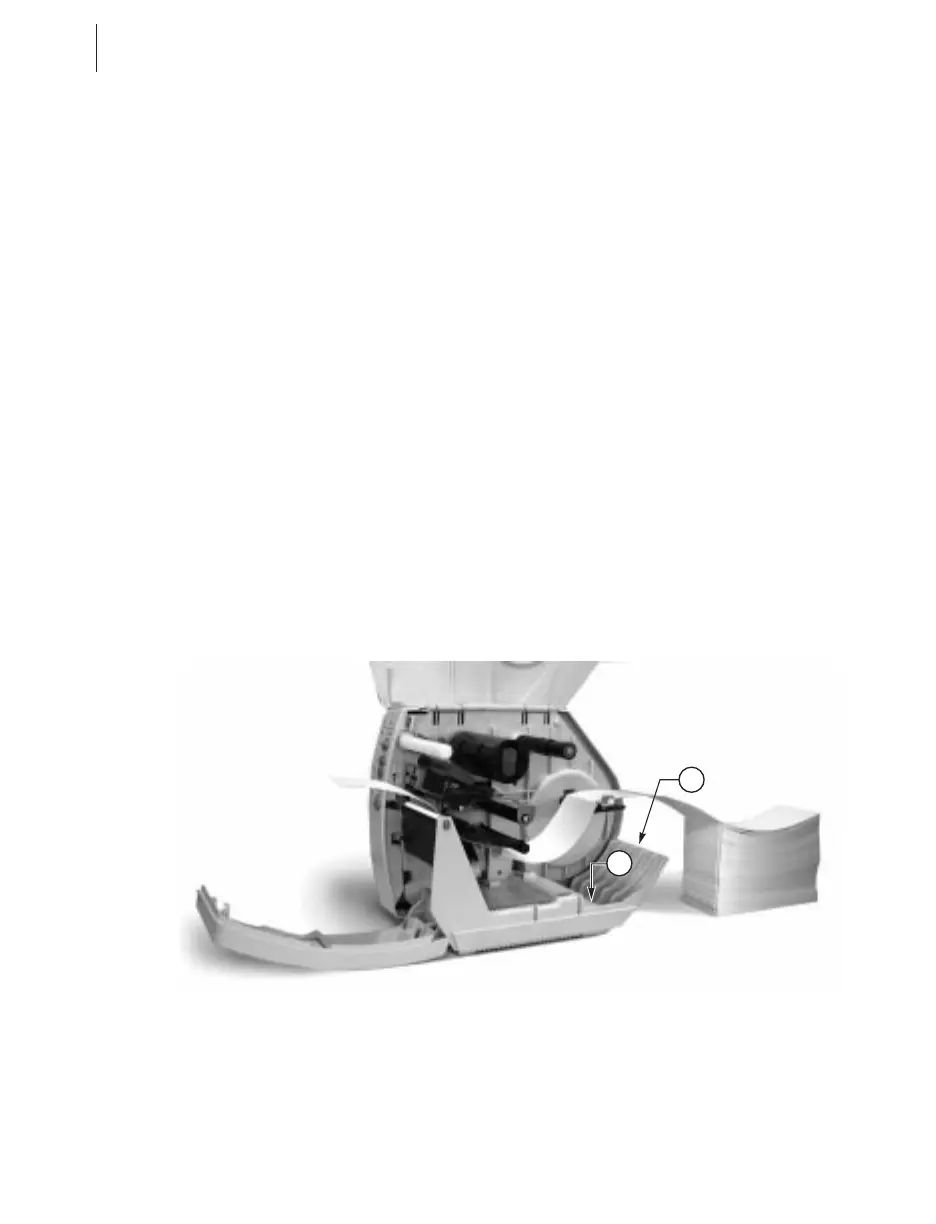

Figure 8
