Zebra ET51 - Page 51

Accessories
51

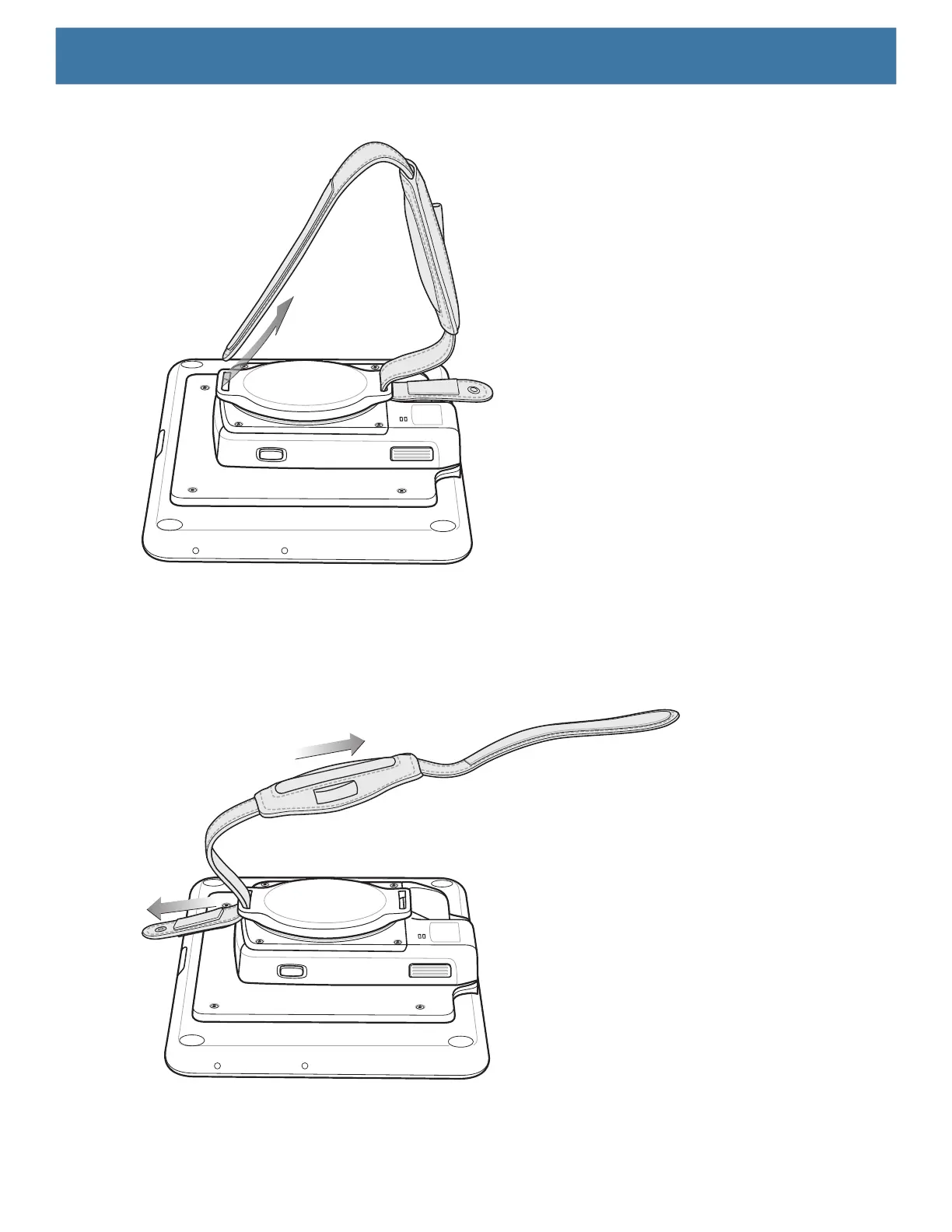

Figure 53 Remove Strap
5. Rotate the disk 180°.
6. Slide the pad off the hand strap.
7. Pull the eyelet end through the slot on the Expansion Back.
Figure 54 Pull Eyelet End
8. Remove pad from new replacement hand strap.
9. Rotate the disk so that one of the slots is aligned with the Power Pack opening.
