Zebra GC420t User Manual

Zebra GC420t User Guide COBISS System Management
16/23 © IZUM, 21. 1. 2014, VIF-NA-26-EN, V1.0

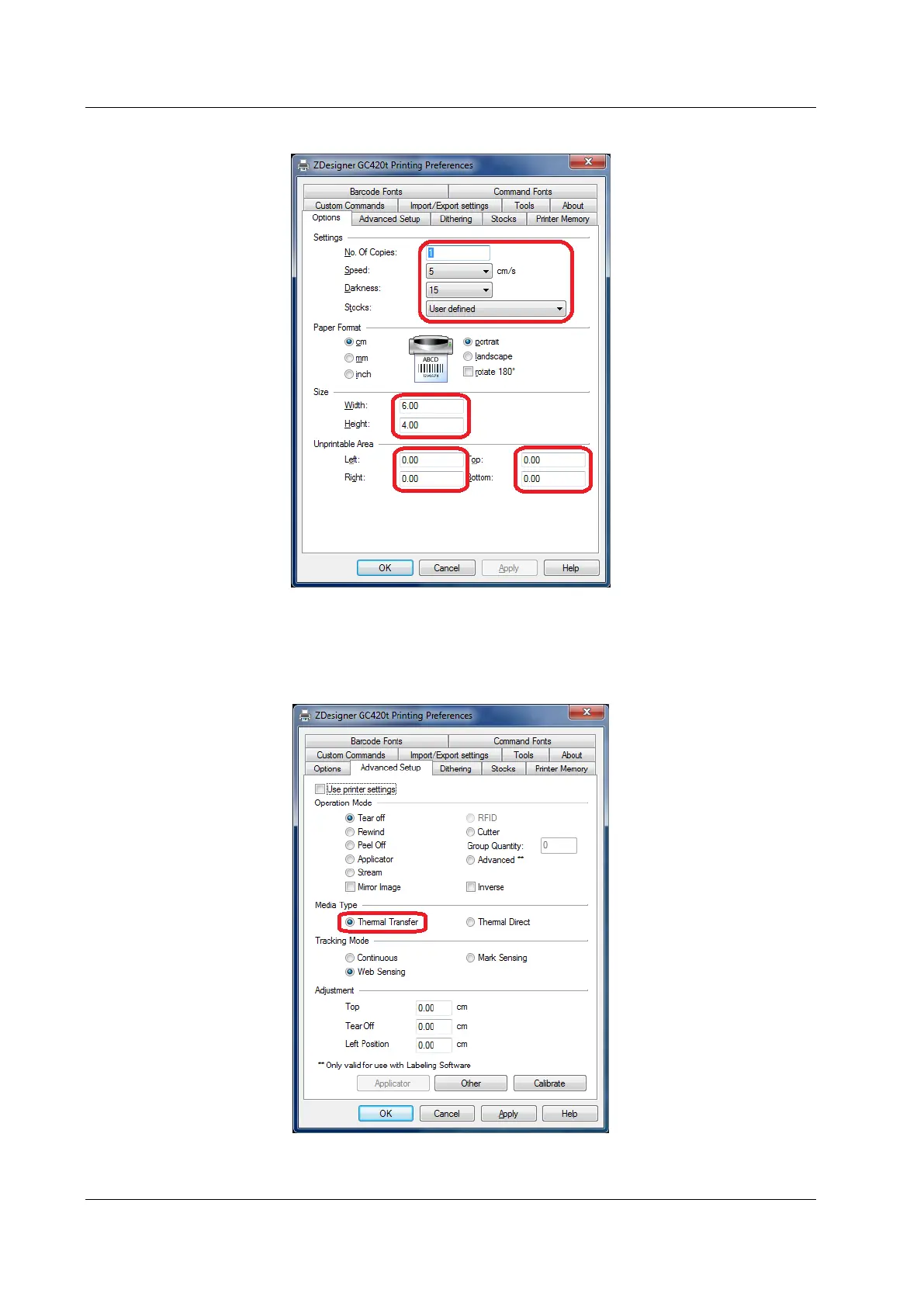

Figure 20: Printing Preferences
Once you set up the parameters under the Options tab, click the Advanced Setup tab and make
sure that Thermal Transfer is selected under “Media Type” (see Figure 21).
Figure 21: Advanced Setup

Zebra GC420t Specifications

General

Print Method	Thermal Transfer and Direct Thermal
Resolution	203 dpi (8 dots/mm)
Storage Temperature	-40°F to 140°F (-40°C to 60°C)
Max Print Width	4.09 inches
Max Print Speed	4 inches per second
Max Print Length	39 inches
Memory	8 MB SDRAM; 8 MB Flash
Connectivity	USB, Parallel, Serial
Media Width	1.00 inch to 4.25 inches
Media Length	0.38"/9.6 mm to 39"/991 mm
Media Thickness	0.003"/0.08 mm to 0.007"/0.18 mm
Media Type	Roll-fed or fan-fold, die-cut or continuous with or without black mark, tag stock, continuous receipt paper, wristbands
Power Requirements	100-240 VAC, 50/60 Hz
Operating Temperature	40°F/5°C to 105°F/41°C
Humidity	10% to 90% non-condensing
Weight	3 lbs
