Zebra GC420t User Manual

COBISS System Management Zebra GC420t User Guide
© IZUM, 21. 1. 2014, VIF-NA-26-EN, V1.0 19/23

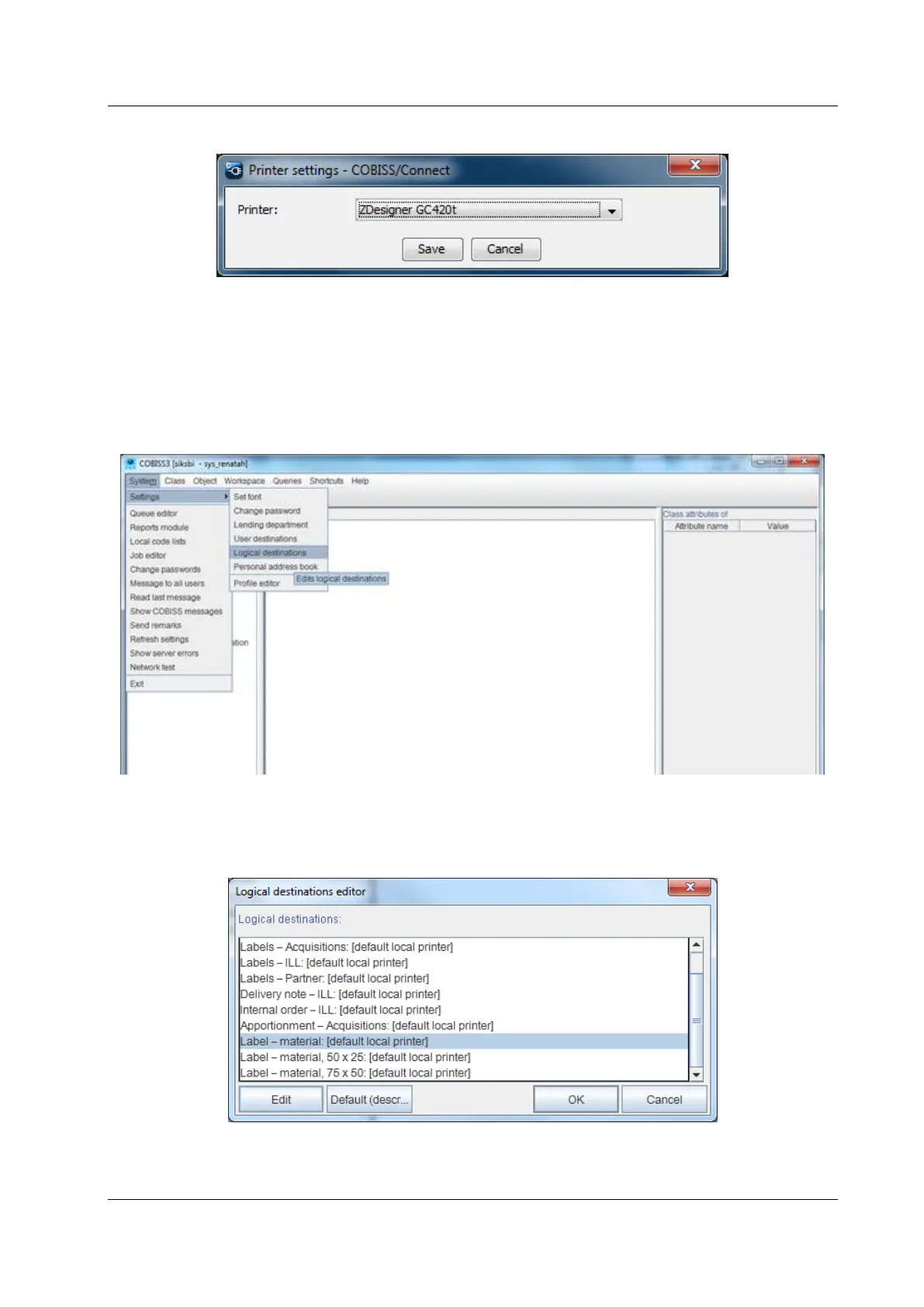

Figure 25: Third option, setting up under tab – connection
8.3 Setting logical destinations in COBISS3
In COBISS3, select a printer for printing labels for the material in logical destinations. Select
System / Settings / Logical destinations (see Figure 26).
Figure 26: COBISS3 user interface
A new Logical destinations editor window will open, in which you will select the option Label
– material: [default local printer], and click Edit (see Figure 27).
Figure 27: Logical destinations editor

Zebra GC420t Specifications

General

Print Method	Thermal Transfer and Direct Thermal
Resolution	203 dpi (8 dots/mm)
Storage Temperature	-40°F to 140°F (-40°C to 60°C)
Max Print Width	4.09 inches
Max Print Speed	4 inches per second
Max Print Length	39 inches
Memory	8 MB SDRAM; 8 MB Flash
Connectivity	USB, Parallel, Serial
Media Width	1.00 inch to 4.25 inches
Media Length	0.38"/9.6 mm to 39"/991 mm
Media Thickness	0.003"/0.08 mm to 0.007"/0.18 mm
Media Type	Roll-fed or fan-fold, die-cut or continuous with or without black mark, tag stock, continuous receipt paper, wristbands
Power Requirements	100-240 VAC, 50/60 Hz
Operating Temperature	40°F/5°C to 105°F/41°C
Humidity	10% to 90% non-condensing
Weight	3 lbs
