Accessories
146

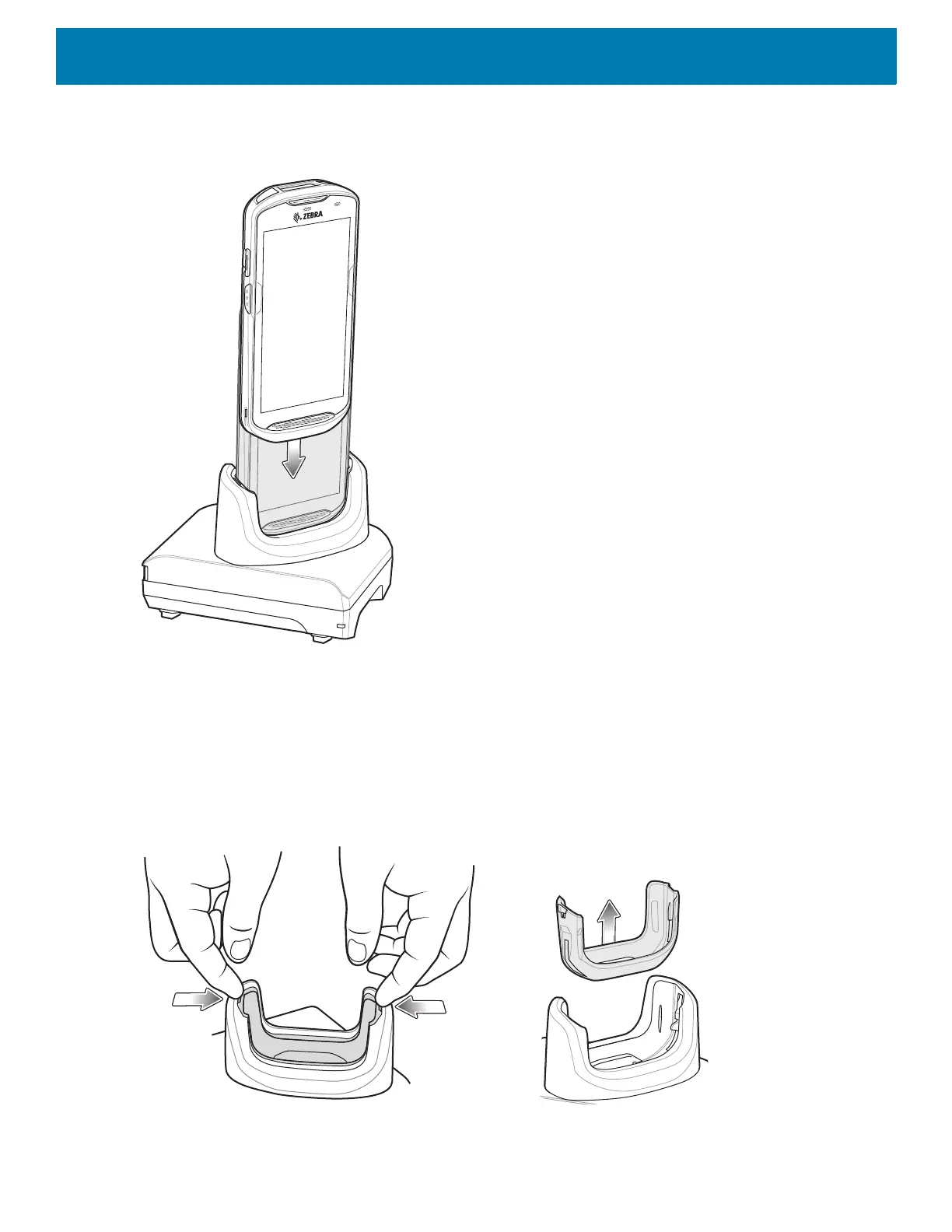

1. Insert the device into the slot to begin charging.
Figure 118 Battery Charging
2. Ensure the device is seated properly.
Inserting a Device with Rugged Boot into Cradle
Each cradle cup has an insert that must be removed prior to inserting the device with Rugged Boot. Remove
the insert and then insert the device into the cup.
Figure 119 Remove Insert from Cup
