Accessories
176

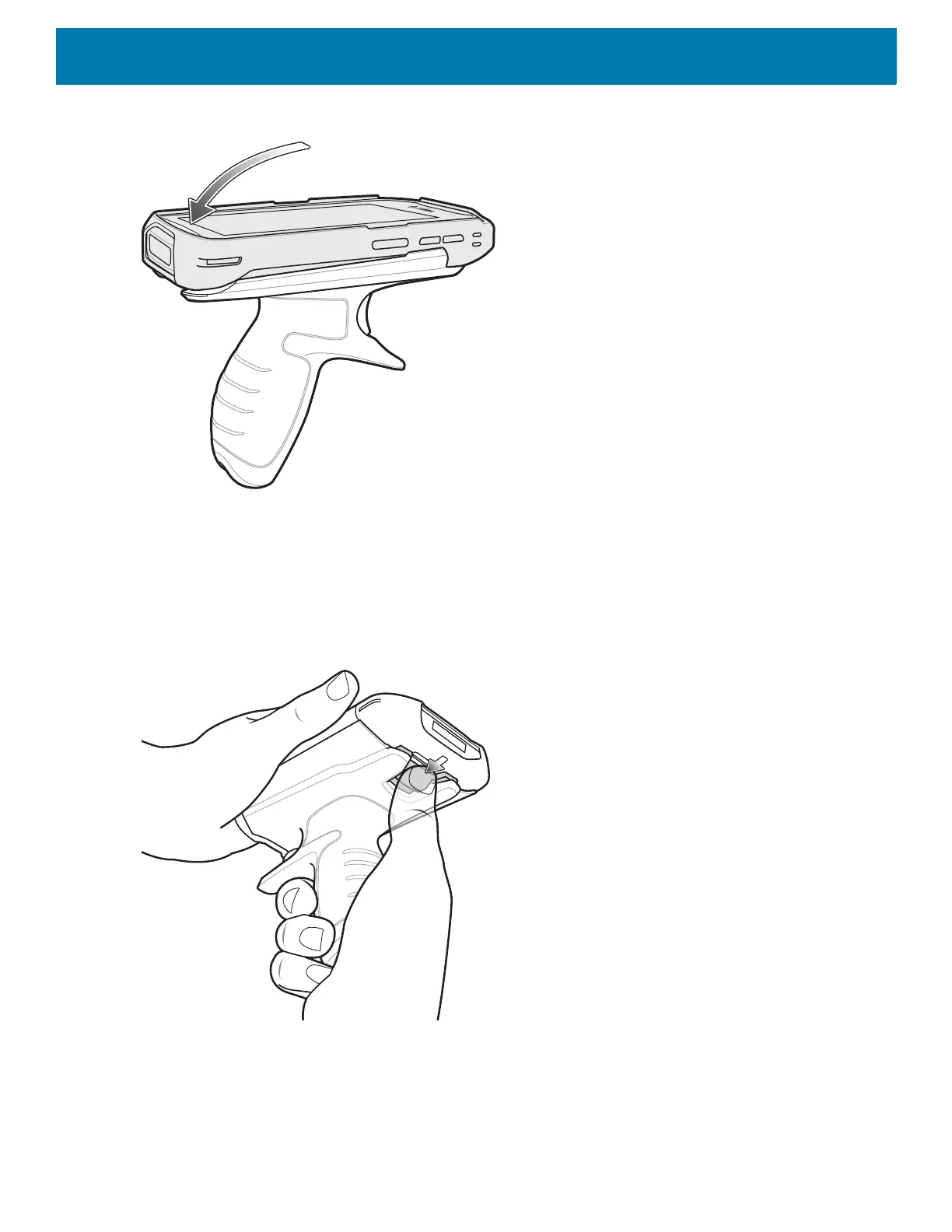

Figure 165 Rotate Device onto Trigger Handle
Removing the Device from the Trigger Handle
To remove the device from the Trigger Handle:
1. Press Trigger Handle release latch.
Figure 166 Press Release Latches
2. Slide the device forward and then rotate the bottom of the device up.
