Zebra TC52 User Manual

Accessories
175

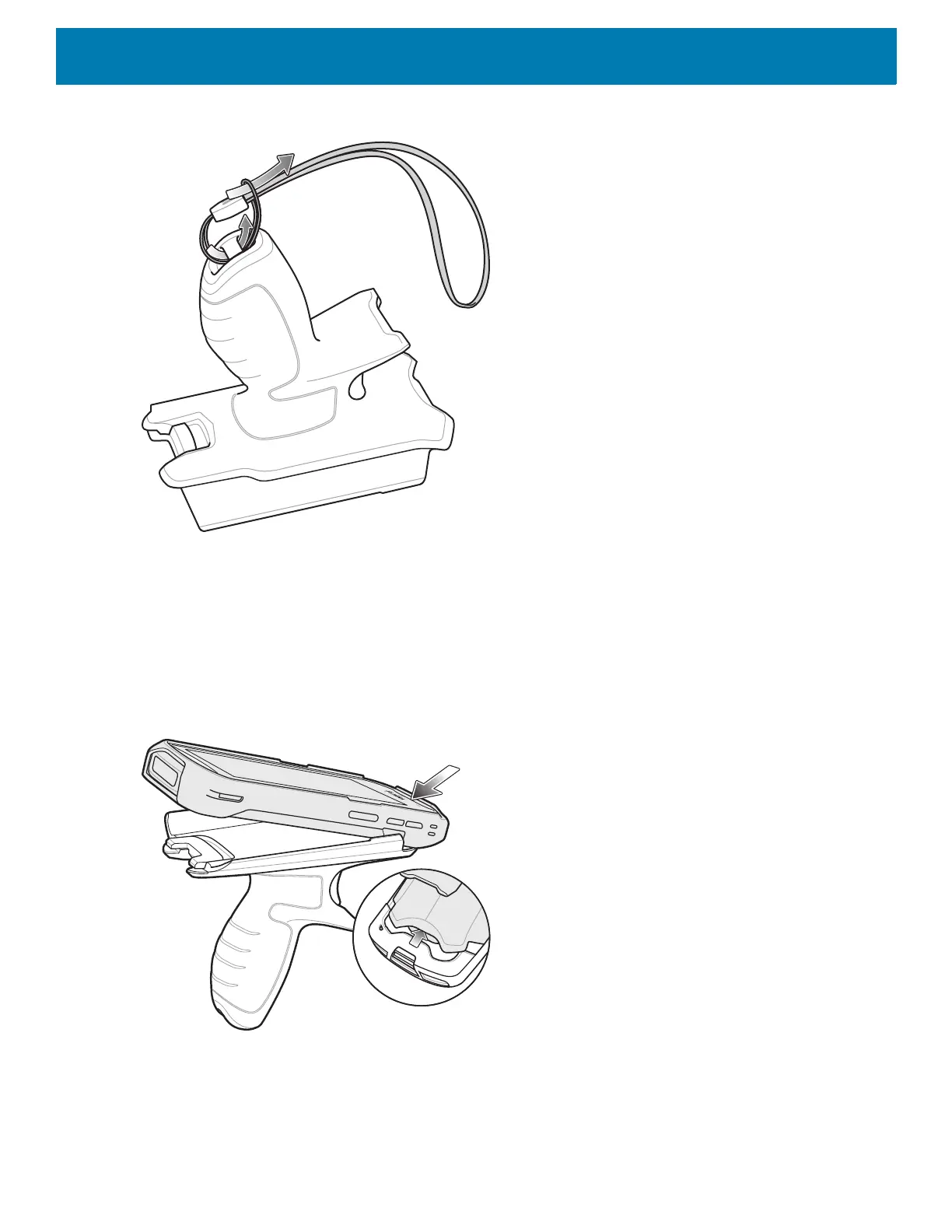

Figure 163 Install Attachment Plate to Handle
3. Pull the lanyard until the loop tightens.
Inserting the Device into the Trigger Handle
To install the device onto the Trigger handle:
1. Align and insert the flange of the Trigger Handle with the top of the Rugged Boot.
Figure 164 Connect Device to Trigger Handle
2. Rotate the device down and press down until it snaps into place.
1
2

Zebra TC52 Specifications

General

RFID reader	-
Scanner type	2D
Product color	Black
Phone function	Yes
Display diagonal	5 \
Touch technology	Dual-touch
Touchscreen type	Capacitive
Display resolution	1280 x 720 pixels
USB 2.0 ports quantity	1
Flash memory	32 GB
Internal memory	4 GB
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	256 GB
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Battery capacity	4150 mAh
Number of cores	8
Processor model	660
Processor family	Snapdragon
Processor frequency	2.2 GHz
Processor manufacturer	Qualcomm
GPS (satellite)	No
Operating system installed	Android
Bluetooth version	5.0
Rear camera aperture number	2.2
Front camera aperture number	2
Rear camera resolution (numeric)	13 MP
Front camera resolution (numeric)	5 MP

Weight and Dimensions

Depth	18.6 mm
Width	75.5 mm
Height	155 mm
Weight	249 g
