Zebra TC52 User Manual

Accessories
167

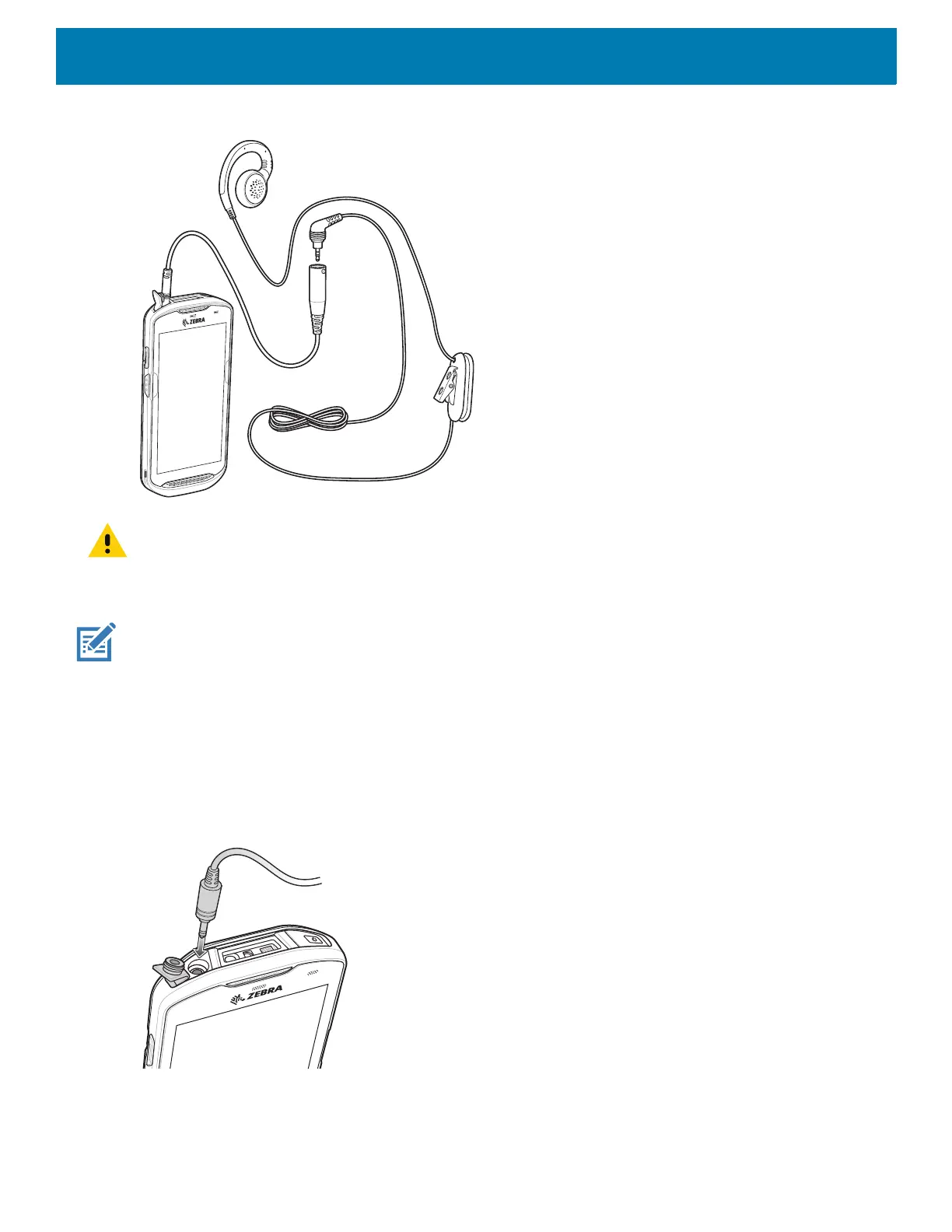

Figure 148 Connect Headset to Audio Adapter
CAUTION: After removing headset, headset jack cover must be replaced and securely seated to ensure proper device
sealing.
3.5 mm Audio Adapter
NOTE: The Audio Adapter is available for the device standard configuration.
The 3.5 mm Audio Adapter plugs into the device and connects to a wired headset with a 3.5 mm plug.
To attach a 3.5 mm headset:
1. Open the headset jack cover.
2. Insert the 3.5 mm Audio Adapter plug into the headset jack.
Figure 149 Audio Adapter Installation
3. Connect the 3.5 mm connector plug of the headset into the 3.5 mm Audio Adapter.

Zebra TC52 Specifications

General

RFID reader	-
Scanner type	2D
Product color	Black
Phone function	Yes
Display diagonal	5 \
Touch technology	Dual-touch
Touchscreen type	Capacitive
Display resolution	1280 x 720 pixels
USB 2.0 ports quantity	1
Flash memory	32 GB
Internal memory	4 GB
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	256 GB
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Battery capacity	4150 mAh
Number of cores	8
Processor model	660
Processor family	Snapdragon
Processor frequency	2.2 GHz
Processor manufacturer	Qualcomm
GPS (satellite)	No
Operating system installed	Android
Bluetooth version	5.0
Rear camera aperture number	2.2
Front camera aperture number	2
Rear camera resolution (numeric)	13 MP
Front camera resolution (numeric)	5 MP

Weight and Dimensions

Depth	18.6 mm
Width	75.5 mm
Height	155 mm
Weight	249 g
