Getting Started
18

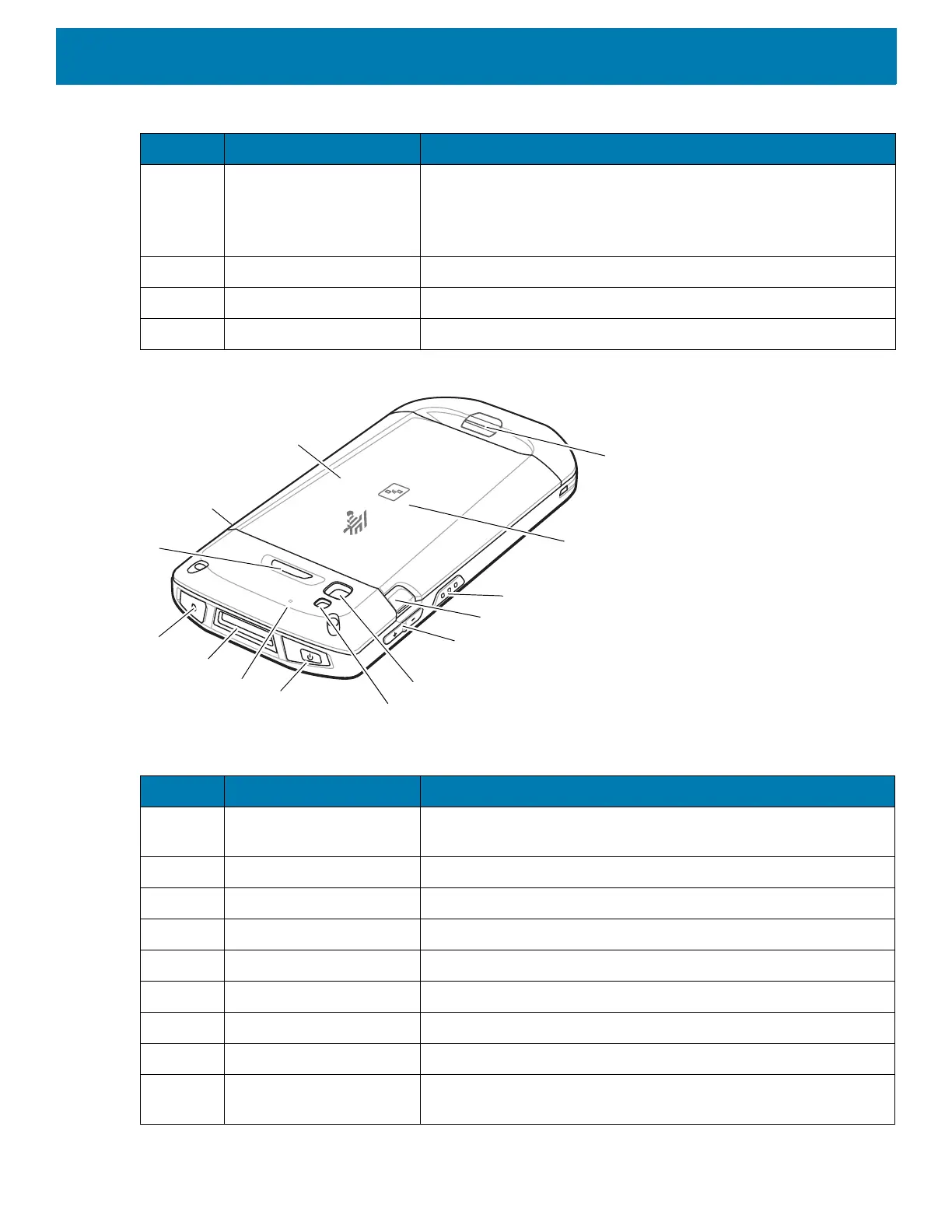

Figure 3 Rear View
11 Interface Connector Provides USB host and client communications, audio and device
charging via cables and accessories.
CAUTION: Do not remove the interface connector to ensure proper
device sealing.
12 Microphone Use for communications in Handset mode.
13 Scan Button Initiates data capture (programmable).
14 PTT Button Initiates push-to-talk communications (programmable).
Table 2 Back View Features
Number Item Function
15 Battery 4,300 mAh (typical)/4,050 mAh (minimum) PowerPrecision+
Lithium-ion battery.
16 Basic Hand Strap Mount Provides mounting point for Basic Hand Strap accessory.
17 NFC Antenna Provides communication with other NFC-enabled devices.
18 Scan Button Initiates data capture (programmable).
19 Battery Release Latches Press to remove the battery.
20 Volume Up/Down Button Increase and decrease audio volume (programmable).
21 Rear Camera Takes photos and videos.
22 Camera Flash Provides illumination for the camera.
23 Power Button Turns the display on and off. Press and hold to reset the device,
power off or swap battery.
Table 1 Front View Features (Continued)
Number Item Function
27
18
20
21
15
23
26
19
19
22
17
16
25
24
