Getting Started 1 - 3
1. Remove access cover.
2. Insert a SAM card into the SAM slot with the cut edge toward the middle of the device and the contacts facing
down.

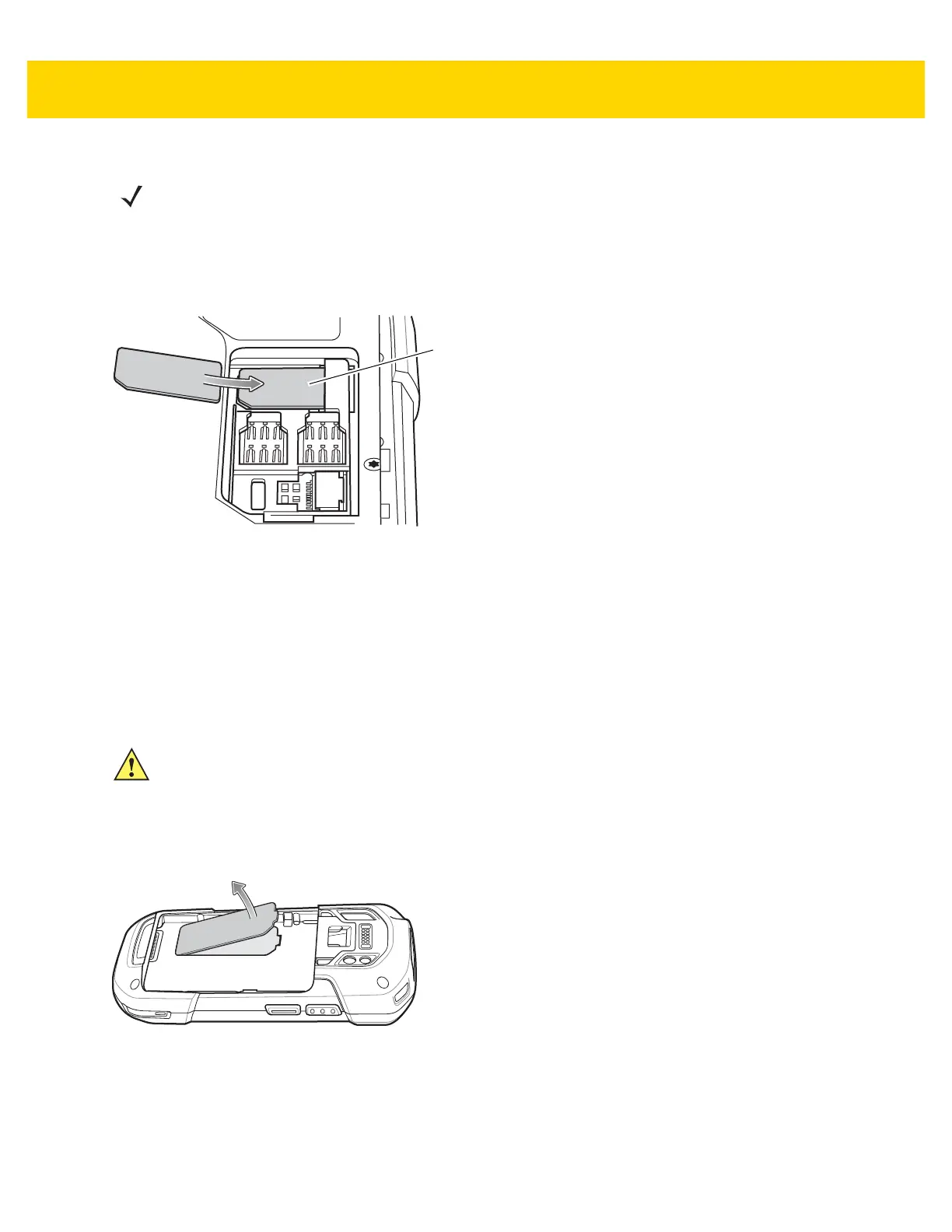

Figure 1-4 SAM Card Installation
3. Ensure that the SAM card is seated properly.
Installing a microSD Card
The microSD card slot provides secondary non-volatile storage. The slot is located under the battery pack. Refer to
the documentation provided with the card for more information, and follow the manufacturer’s recommendations for
use.
1. Remove the hand strap, if installed.
2. Lift the access door.
Figure 1-5 Lift Access Door
3. Insert the microSD card into the card holder door ensuring that the card slides into the holding tabs on each
side of the door.
NOTE The TC70x/TC75x contains one slot for a mini SAM card. If using a micro SAM card, a third-party adapter
is required. On the TC75x, when using a SAM card, only a nano SIM card can be used.
CAUTION For proper electrostatic discharge (ESD) precautions to avoid damaging the SIM card. Proper ESD
precautions include, but not limited to, working on an ESD mat and ensuring that the user is properly
grounded.
