2 - 36 TC70x/TC75x Integrator Guide
11. Connect the output power plug into the power port on the 4-Slot Battery Charger.

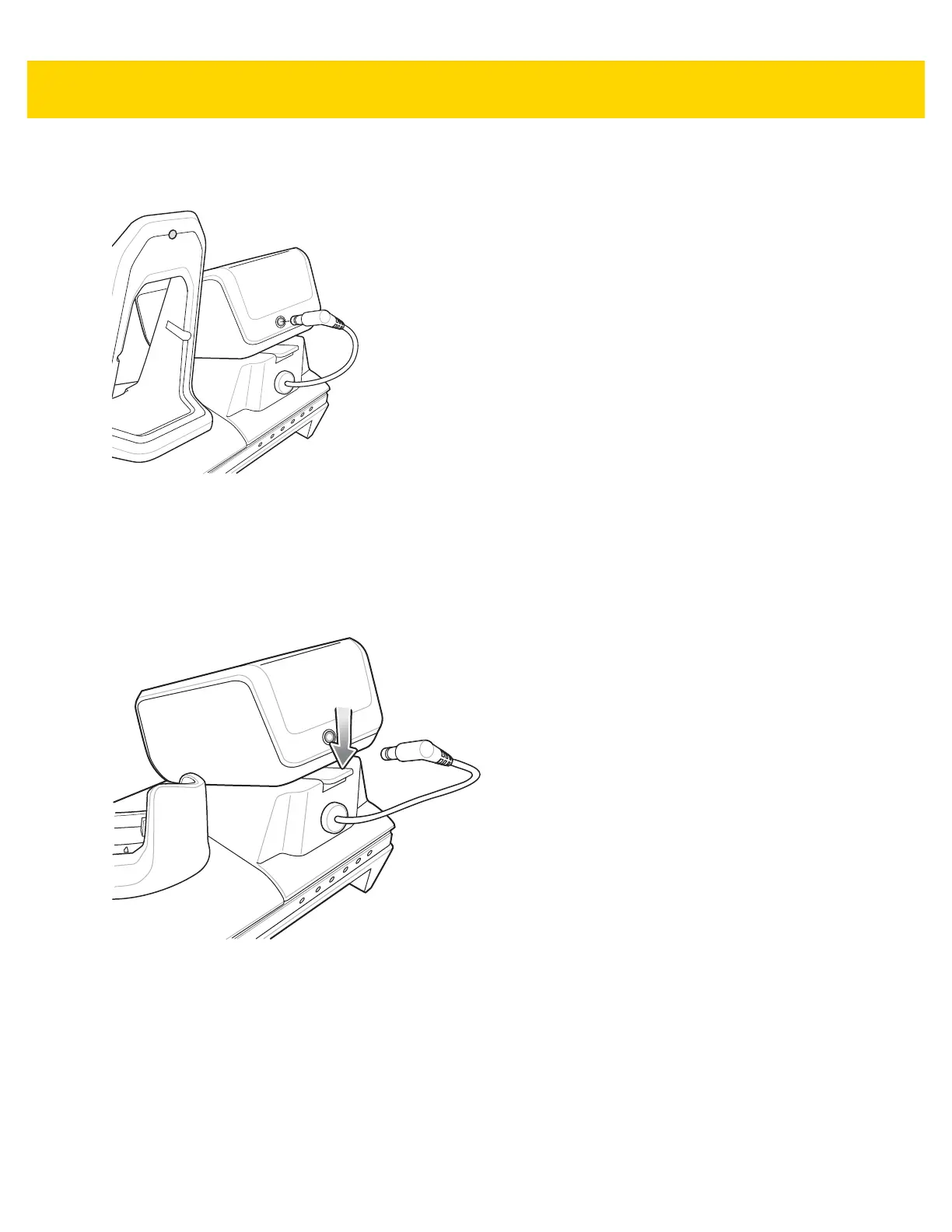

Figure 2-42 Connect Adapter Power Cable
Removing the 4-Slot Battery Charger
1. Disconnect the output power plug from the 4-Slot Battery Charger.
2. At the back of the cup, press down on the release latch.
Figure 2-43 Press Release Latch
3. Slide the 4-Slot Battery Charger toward the front of the cradle.
4. Lift the 4-Slot off the cradle cup.
