TC70x/TC75x Integrator Guide

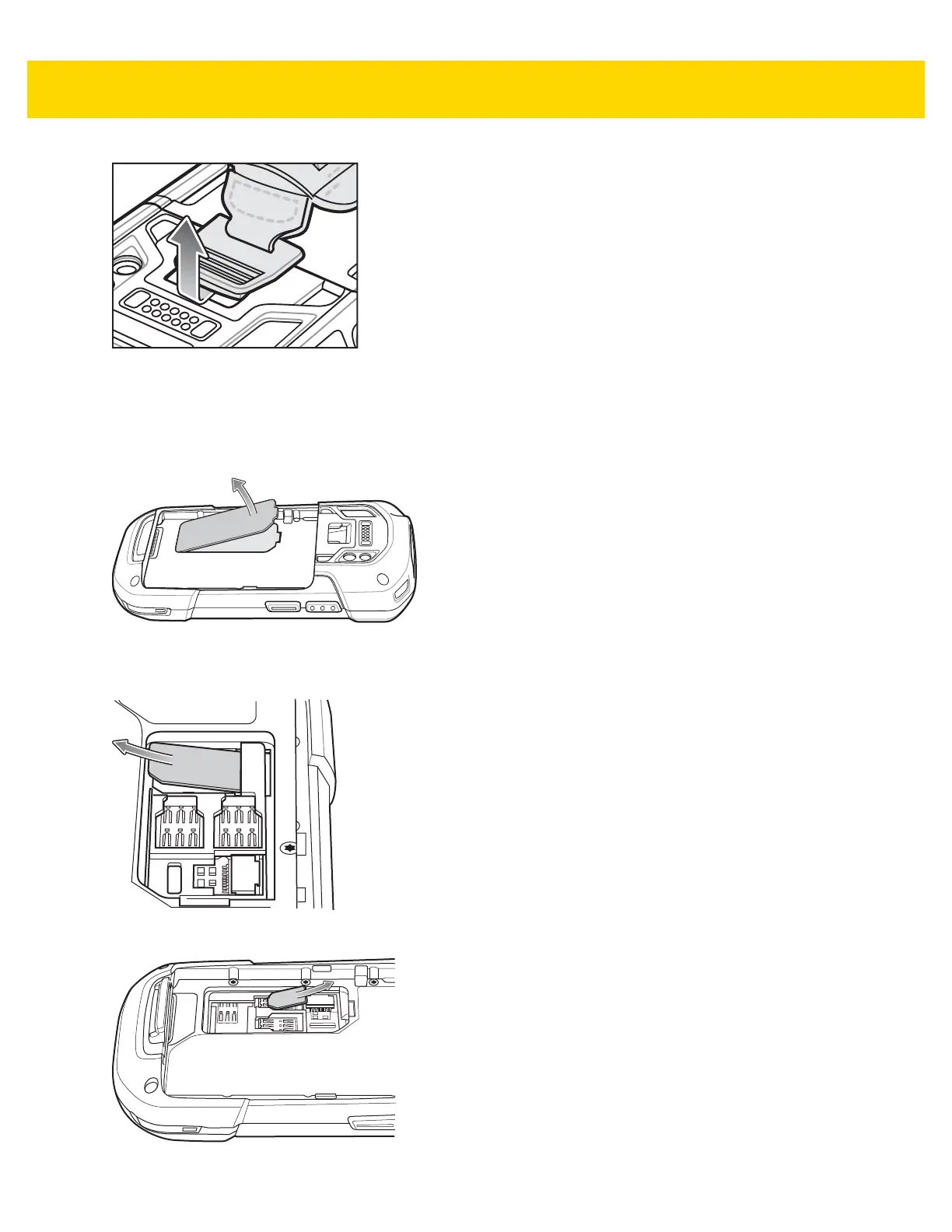

Figure 1-17
Remove Hand Strap Clip
5.
Press the two battery latches
in.
6.
Lift the battery from th
e TC70x/TC75x.
7.
Lift the access door
.
Figure 1-18
Remove Acce
ss
Door
8.
Remove card from holder
.
Figure 1-19
Remove Min
i SIM/SAM Ca
rd
Figure 1-20
Remove Nano SIM Card
29
31
