OPERATION
ZEISS Image orientation for camera outputs for the… Axio Observer
170 431004-7244-001 12/2016

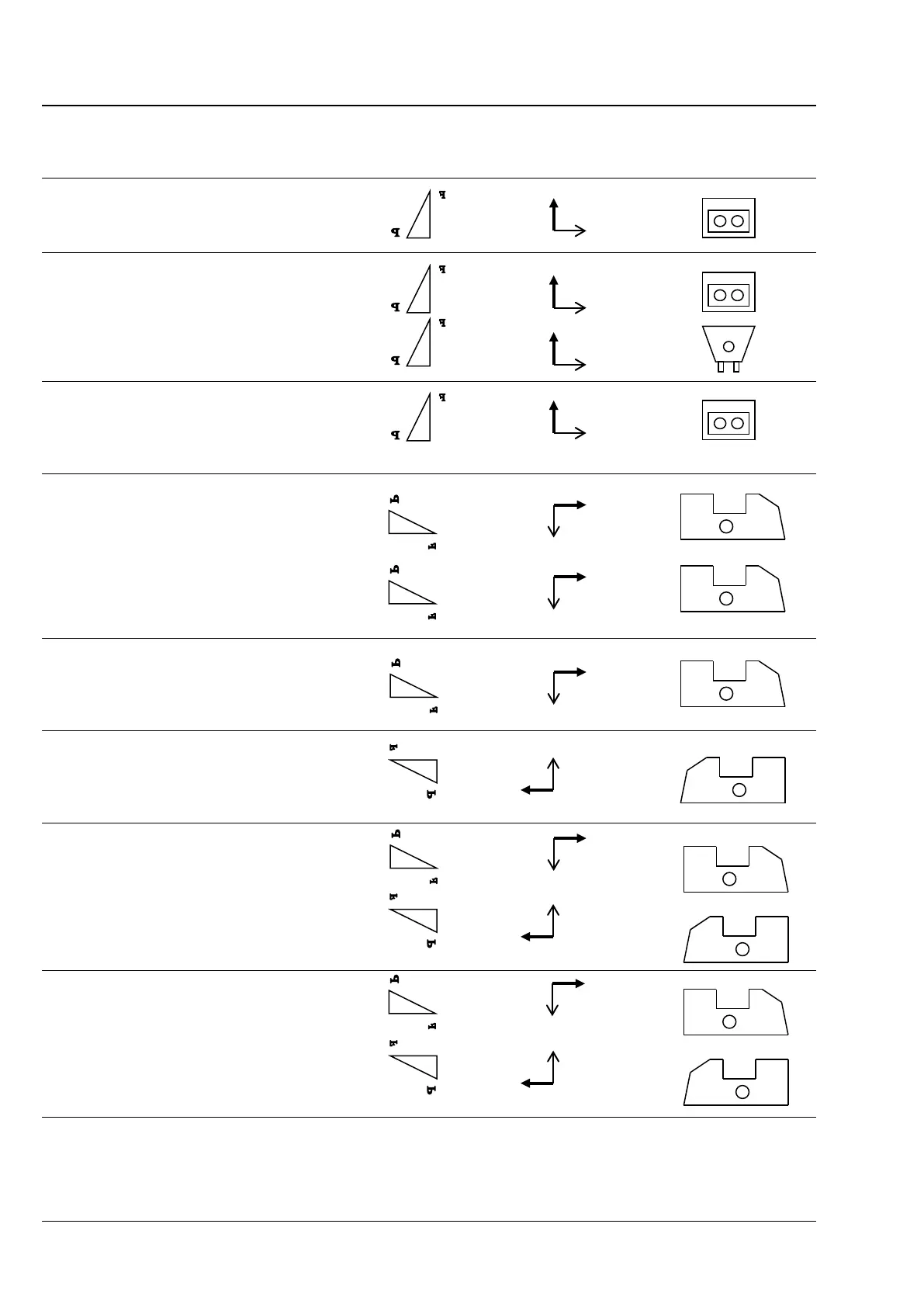

Catalog number/ Viewed with / Intermediate image / Direction of Viewing direction
Description switch position monitor object motion schematic
425537-0000-000 Eyepieces (100% vis)
Binocular tube
425536-0000-000 (100% vis): 0% doc
Binocular
photo tube
50% vis : 50% doc
0% vis: 100% doc
425535-0000-000 Eyepieces (100% vis)
Binocular
ergotube
425150-0000-000 20% vis : 80% doc
Sideport 60N, left,
2 switch positions
425151-0000-000 0% vis : 100% L
Sideport 60N, left,
2 switch positions
425152-0000-000 50% vis : 50% L
Sideport 60N, left, 0% vis: 100% L
3 switch positions
425153-0000-000 (50% vis): 50% R
Sideport 60N, right, 0% vis: 100% R
3 switch positions
425154-0000-000 0% vis : 100% L
Sideport 60N left
and right,
3 switching positions 20% vis : 80% R
425155-0000-000 0% vis : 100% L
Sideport 60N left
and right,
3 switch positions 0% vis : 100% R
