OPERATION

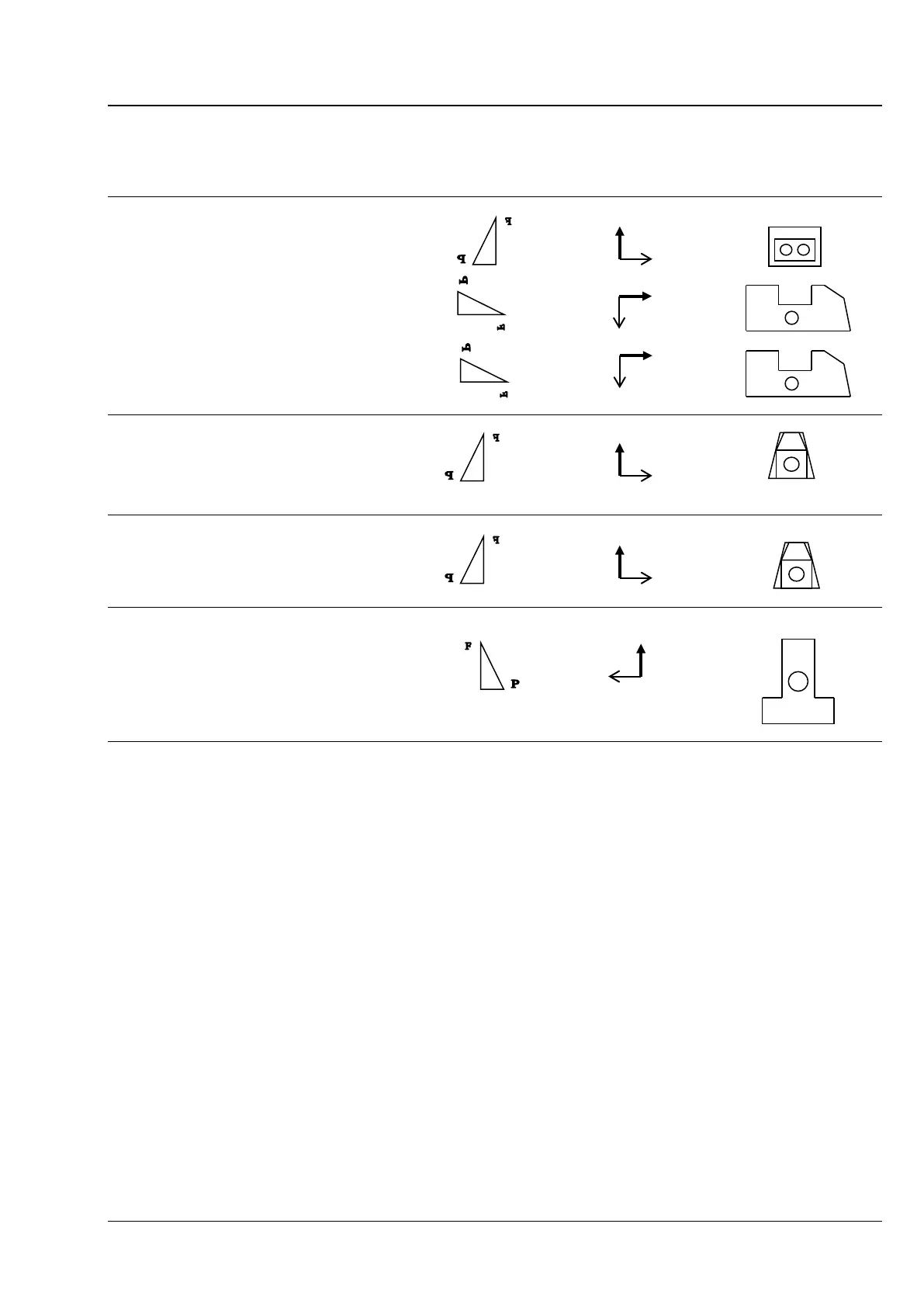

Axio Observer Image orientation for camera outputs for the… ZEISS
12/2016 431004-7244-001 171
Catalog number/ Viewed with / Intermediate image / Direction of Viewing direction
Description switch position monitor object motion schematic
425165-0000-000
Sideport 60N 0% doc left/right
L80 /R100,
3 switch positions
20 vis : 80% doc left
0 vis : 100% doc right
000000-1069-228 100% frontport
Beam path
switching
00-1069-229 100% frontport
Beam path
switching mot.
425126-0000-000 100% doc
baseport
Use of camera adapters which work without using intermediate imaging does not affect image
orientation. The same applies to the frontport with connectors V200 T2 2.5x for SLR (000000-1279-493)
and video adapter V200 C 2/3” 0.63x (000000-1071-171).
The use of Optovars (e.g. 1.25x or 1.6x) also does not change the image orientation.
The above description applies equally to all other specimens.
