Zeiss Stemi 305 - Interfaces on the Microscope Body Stemi 305

Stereo microscope DESCRIPTION
Stemi 305 Interfaces on the microscope body Stemi 305 ZEISS
01/2015 435063-7044-001 15
2.4 Interfaces on the microscope body
Stemi 305
1
Optional mount for eyepiece plates
∅ 26 mm
2
Eyepiece tube
∅
30 mm to replace the
eyepieces
3
Integrated camera adapter 0.5x with
C-mount connector for cameras up to
2/3"(only for Stemi 305 trino)
4
Internal thread M52x1.0 to accommodate
front optics and other accessories
5
Mount
∅
66 mm for ring illuminator
6
Mount
∅
76 mm for microscope body
7
Mount
∅
84 mm for tables, insert plates
8
Guide for mounting a reflected-light spot
illuminator
9
M8 thread to mount retaining arms (only
stand K)
Thanks to the interface ∅ 76 mm, the Stemi 305
can also be used in conjunction with other stands
of the modular kit of the Stereo system – and
other ZEISS stereo microscopes such as e.g. the
Stemi 508, may also be inserted in the stands K.
Front optics, Stemi 305
− External thread M52x1.0 for fastening in the
zoom body Stemi 305
− Internal thread M49x0.75 to accommodate
optical filters and analyzer for pol.

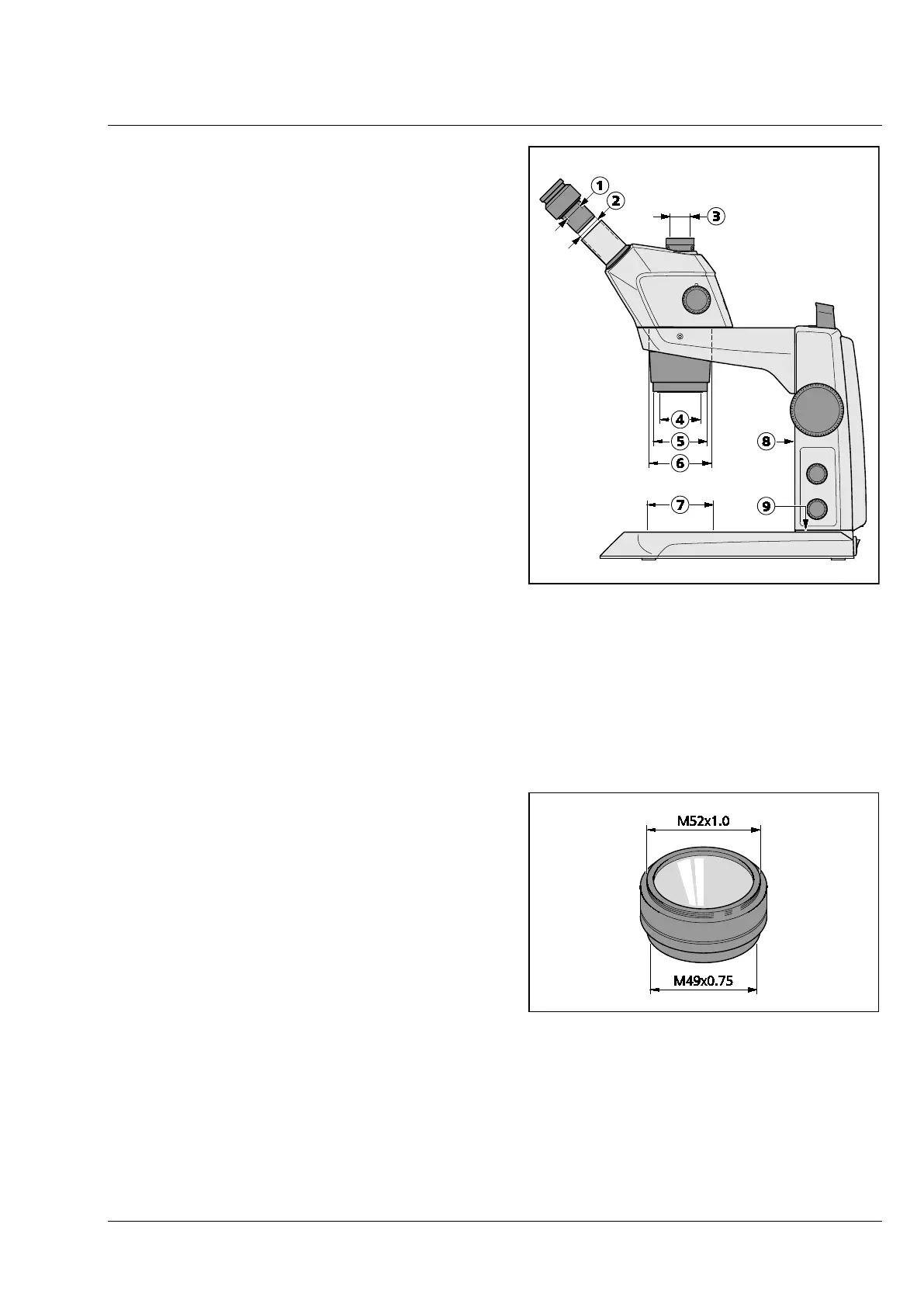

Fig. 7 Interfaces on the Stemi 305
with stand K LED (schematic diagram)
Fig. 8 Front optics, Stemi 305 (example)
