5.2.3 Opening the stand cover plate,
stand K LAB
The transmitted-light base (Fig. 29/1) can be
removed from the stand cover plate (Fig. 29/3) for
cleaning or for removal of any foreign matter
which might have fallen in inadvertently.
• Release the three screws (Fig. 29/2) from the
stand cover plate (Fig. 29/1) using an Allen key
SW 2.5 and put them aside.
• Carefully lift the stand cover plate (Fig. 29/3) off
the transmitted-light base (Fig. 29/1) and put
the stand aside.
Make sure that the cable (Fig. 29/4) is
not disconnected from the transmitted-
light base (Fig. 29/1).
To clean the LED, the optical elements
and the mirror, use a soft lint
free cloth,
a cotton wool bud wound around a
round wooden stick or a natural hair
brush, possibly moistened slightly in
distilled water.

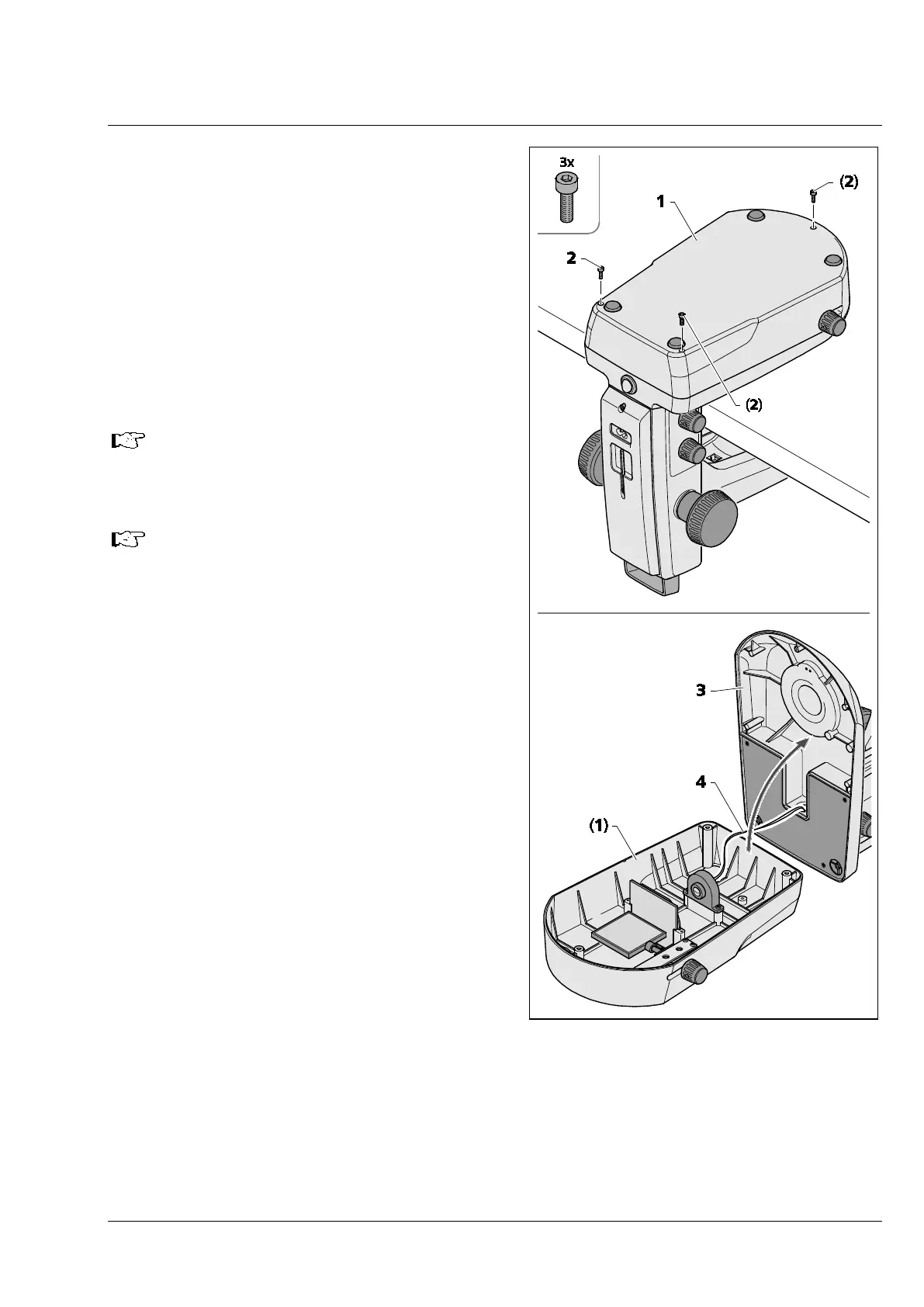

Fig. 29 Opening the stand cover plate,
stand K LAB
