INSTALLATION Stereo microscope
ZEISS Connecting stereo microscope to the power supply Stemi 305
26 435063-7044-001 01/2015
The slight image offset which is due to the additional glass distance is taken into account on the diopter
scale by the zero position not being indicated by the white dot (Fig. 16/W), but by a red dot (Fig. 16/R).
Eyepieces with pre-inserted eyepiece plates are available directly from ZEISS.
3.4 Connecting stereo microscope to
the power supply
• Insert the mains cable (Fig. 17/2) in the mains
supply socket (Fig. 17/1) of the stand.
• Connect the mains cable (Fig. 17/2) to a mains
supply socket outlet.
3.5 Switching stereo microscope ON or
OFF
• Use the power switch (Fig. 17/3) to switch the
stereo microscope ON or OFF.
Safe disconnection from the power supply is ensured exclusively by removing the mains plug.
The switch on the stereo microscope only switches into standby mode.
Do not replace detachable mains cables by inadequately designed mains cables. Only the
specified power supply lines may be used.

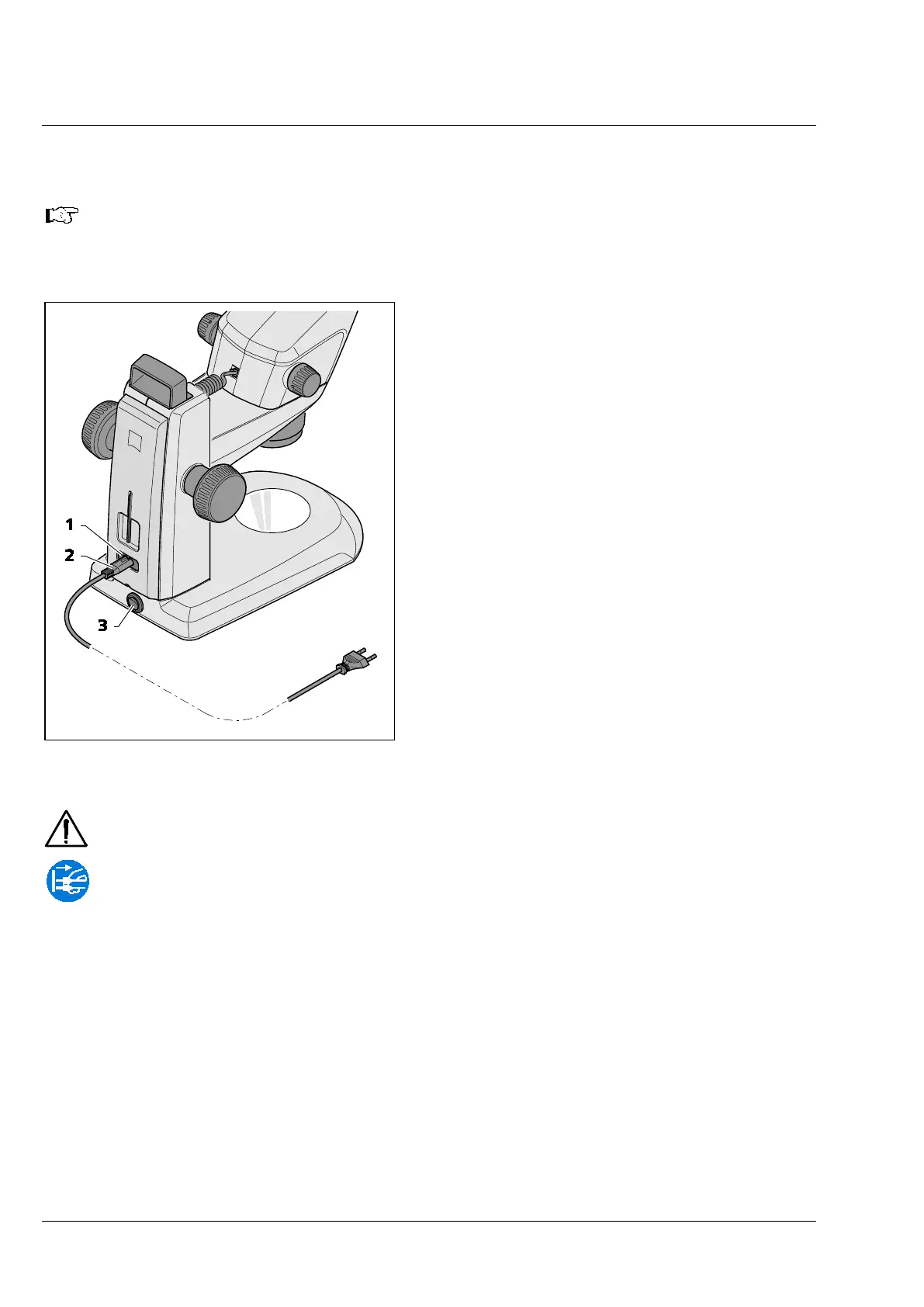

Fig. 17 Connecting the stereo microscope
