Zenith Presentation H25D46DT - Antenna

206-3602
PAGE 15
Mini glossary
75 OHM RF CABLE The wire that comes from an off-air antenna or cable service provider. Each end looks like a hex shaped nut with a wire
sticking through the middle, and it screws onto the threaded jack on the back of your TV.
A small device that connects a two-wire 300 ohm antenna to a 75 ohm RF jack. They are usually about an inch long with two screws
on one end and a round opening with a wire sticking out on the other end.

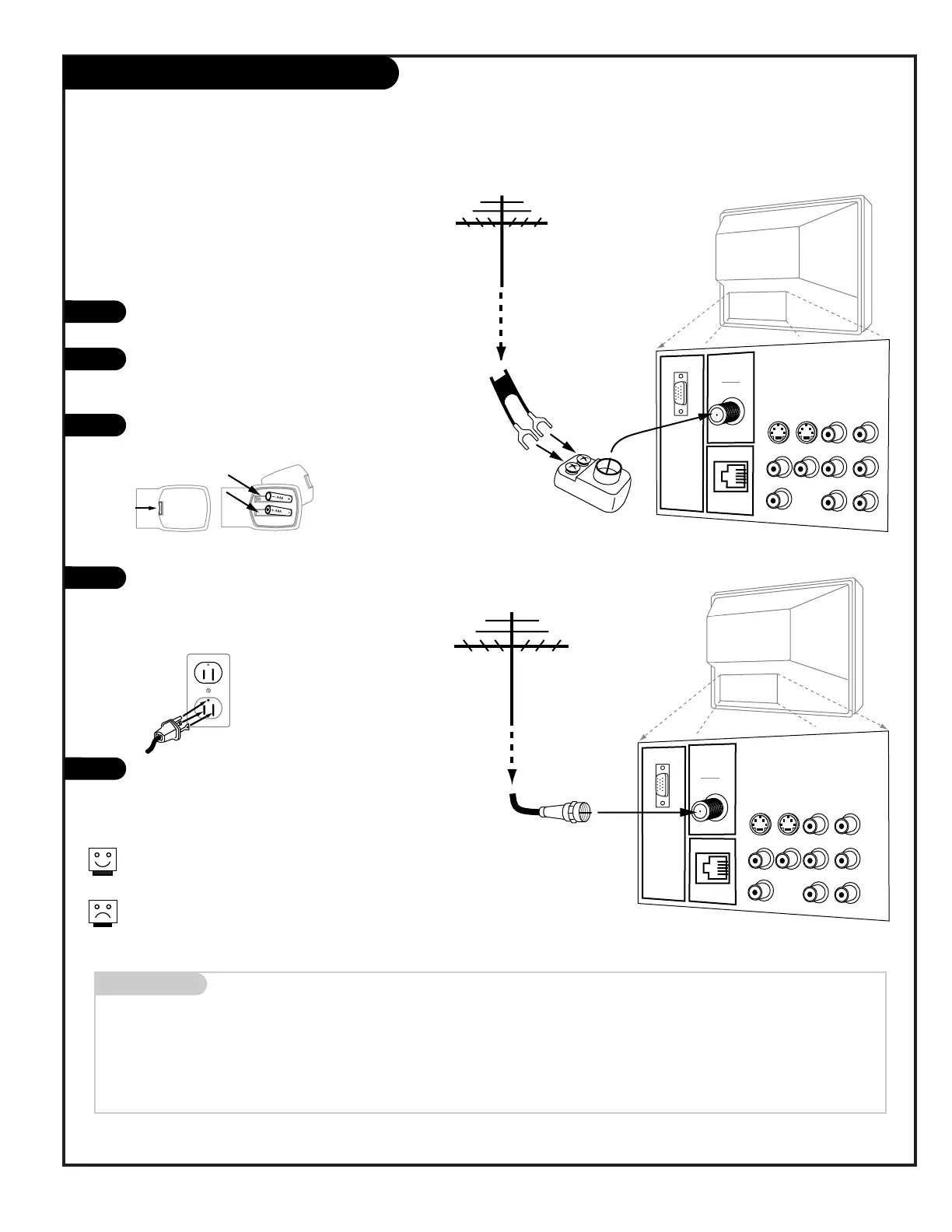

Hook Up Your Antenna to the TV
Connect an off-air antenna to the
Presentation TV
If you have a 75 ohm RF cable, then you
don’t need any adapters!
A 300 to 75 ohm adapter is not included with
the Zenith Presentation TV.
300 TO 75 OHM
ADAPTER
TV Back
VIDEO
ANTENNA
CABLE
R- AUDIO- L
S-VIDEO IN
COMPUTER
AUDIO
R
L
AUX IN
M.P.I.
R- AUDIO- L
R- AUDIO- L
S-VIDEO OUT
COMPUTER
IN
AUDIO OUT
Flat wire
(300 ohm)
Antenna
300/75 ohm
Adapter
RF Coaxial Wire
(75ohm)
Antenna
TV Back
VIDEO
ANTENNA
CABLE
R- AUDIO- L
S-VIDEO IN
COMPUTER
AUDIO
R
L
AUX IN
M.P.I.
R- AUDIO- L
R- AUDIO- L
S-VIDEO OUT
COMPUTER
IN
AUDIO OUT
Locate the Antenna/Cable jack on the back of
the Presentation TV.
Connect the cable that runs from the wall
directly to this jack, according to one of the
diagrams at the right.
Remove the back of the remote and put in two
AAA batteries.
Plug in the TV. This Entertainment Machine is
designed to operate on standard current, 120-
volt 60 Hertz AC. Do not attempt to operate it
on DC Current.
Go to page 21 to Auto Program the
Presentation TV.
Back of
Remote
1
2
3
4
5
