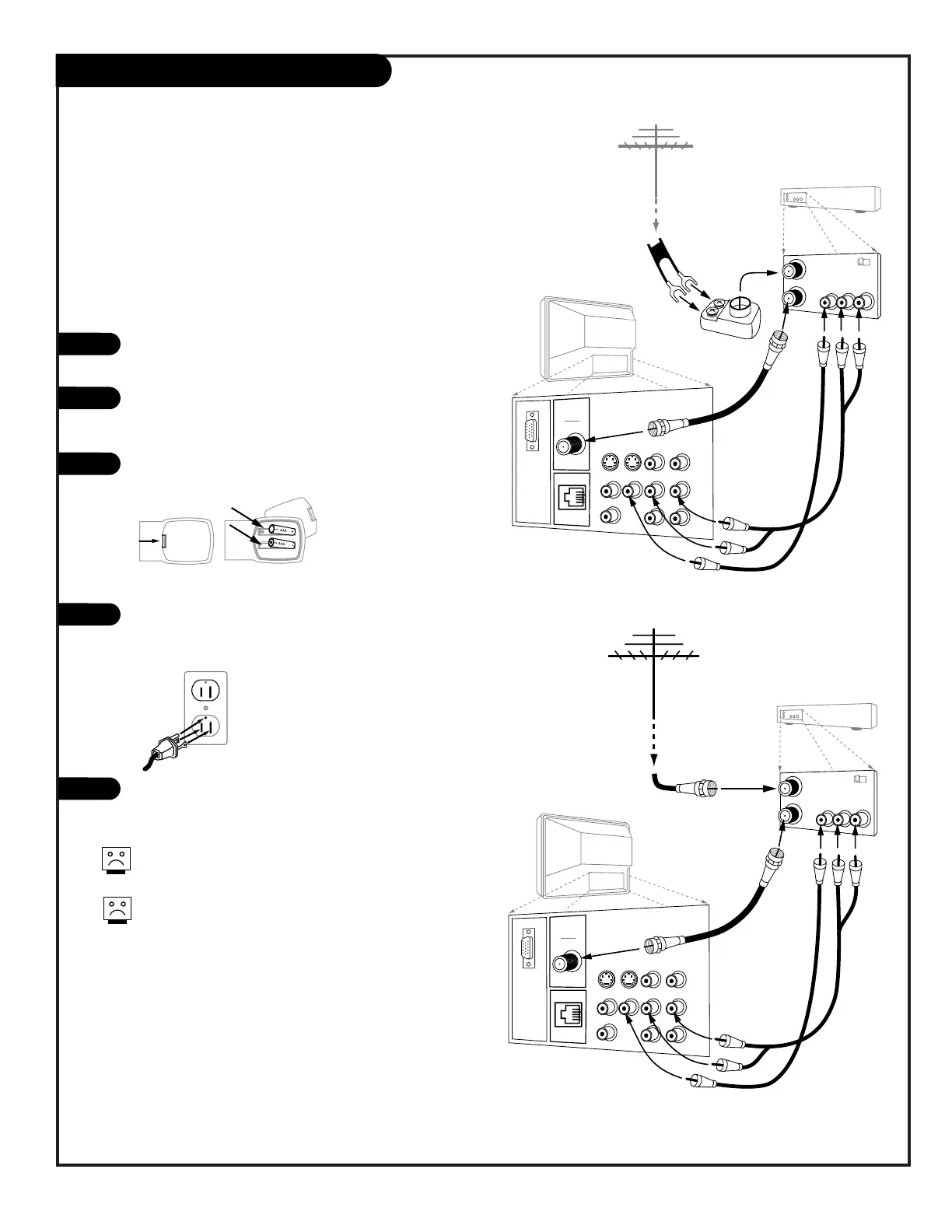

Hook Up Antenna and VCR to the TV
Connect an off-air antenna and VCR to the Presentation TV
No A/V cables are included with the Zenith Presentation
TV.
Without A/V cables, most VCRs will not play videocas-
settes in stereo sound.
In
Out
Audio
Video
3 4
VCR Back
VCR Back AV Panel
output
switch
A/V cables
not included
with TV
VIDEO
ANTENNA
CABLE
R- AUDIO- L
S-VIDEO IN
COMPUTER
AUDIO
R
L
AUX IN
M.P.I.
TV Back
R- AUDIO- L
R- AUDIO- L
S-VIDEO OUT
COMPUTER
IN
AUDIO OUT
Flat Wire
(300 ohm)
Antenna
300/75 ohm
Adapter
RF Coaxial Wire
(75ohm)
Antenna
In
Out
Audio
Video
3 4
VCR Back
VCR back AV panel
output
switch
A/V cables
not included
with TV
VIDEO
ANTENNA
CABLE
R- AUDIO- L
S-VIDEO IN
COMPUTER
AUDIO
R
L
AUX IN
M.P.I.
TV Back
R- AUDIO- L
R- AUDIO- L
S-VIDEO OUT
COMPUTER
IN
AUDIO OUT
Locate the Antenna/Cable In jack on the back of the
VCR.
Connect the cable that runs from the antenna directly
to this jack, according to one of the diagrams to the
right.
Remove the back of the remote and put in two AAA
batteries.
Plug in the TV. The Presentation TV is designed to
operate on standard current, 120-volt 60 Hertz AC.
Do not attempt to operate it on DC Current.
Go to page 21 to Auto Program the Presentation TV.
1
2
3
4
5
Back of
Remote
