YS-S4 Multi-rotor Autopilot User Manual V1.4

18



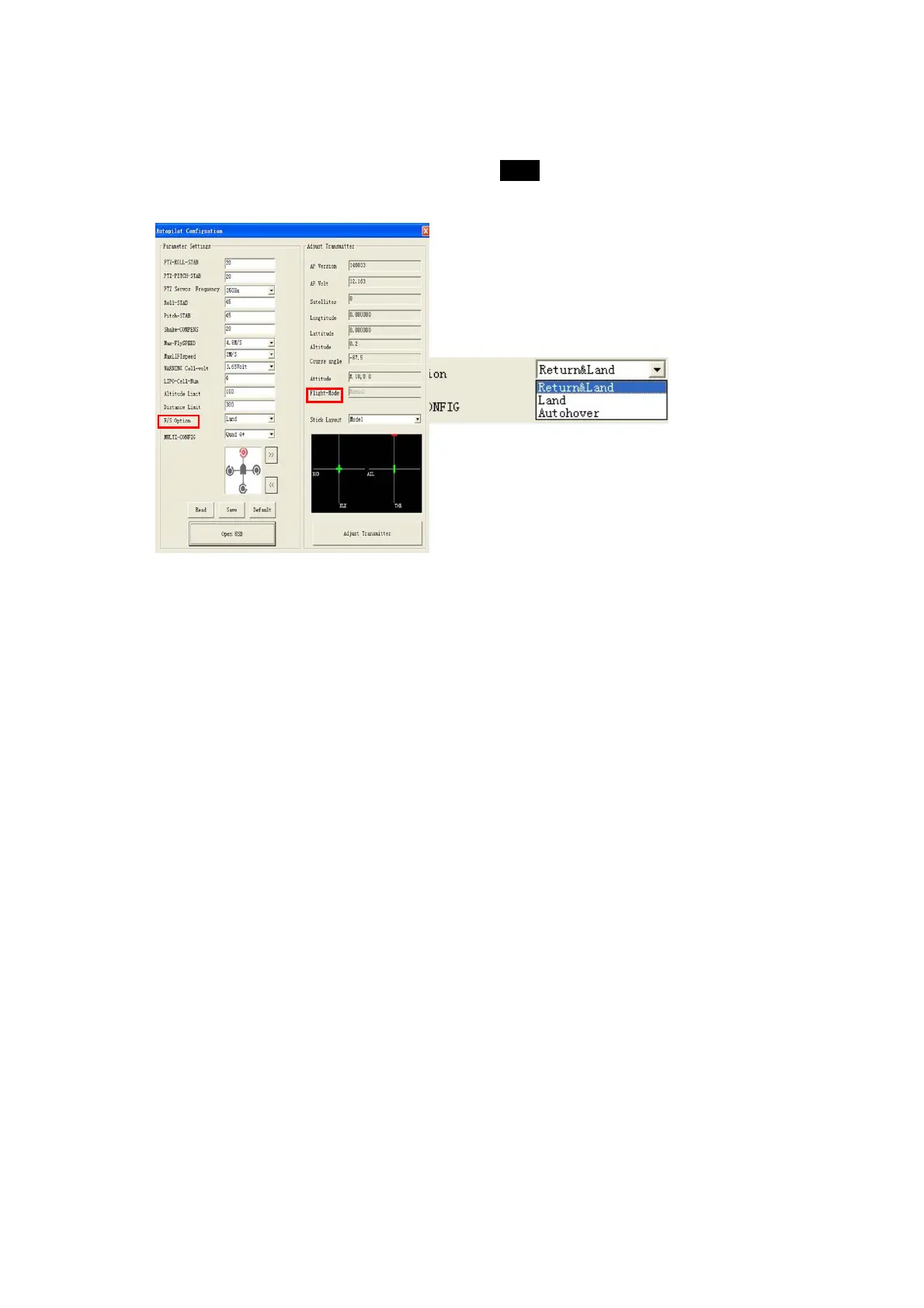

SWITCHOFFtheRCT r ansmitterwhilsttheautopilotisstillpoweredon,the‘FlightMode’shouldswitchtodisplay

"ReturnandLand",“Land”or“Autohover”(theseoptionsarethechose nF/SsettingsfromyourPCGCS)the

throttlestickindicatorshouldbeinthemiddleanddisplayedinGREEN.Ifnot,pleasesetupthefail‐safe(F/S)

again.







7.  AdjustmentOutdoors

7.1  GPS/CompassCalibration

WhenusingtheS4V2autopilotforthefirsttime,theGPS/COMPASSmustbecalibratedbeforearmingthe

motors.



IMPORTANT:

（1）Compasscalibrationdoesnotneedtobedoneeverytimeyouflybutshouldbedonewhencomponentsare

movedoriftheaircraftfliesinunexpectedways,like

incircles,forexample.



(2)ALWAYScarryoutthiscalibrationoutdoors,farawayfrommetallicobjects(cars,radiotowers,powerlines

etc.).



Therearetwowaystocalibratethecompass:bySmartphone(withWI‐FImodule)orbyPC.Thereare3stepsto

follow:

1.Levelcalibration

2.Vertical

calibration

3.SaveGPS/COMPASSdata.
