YS-S4 Multi-rotor Autopilot User Manual V1.4
10



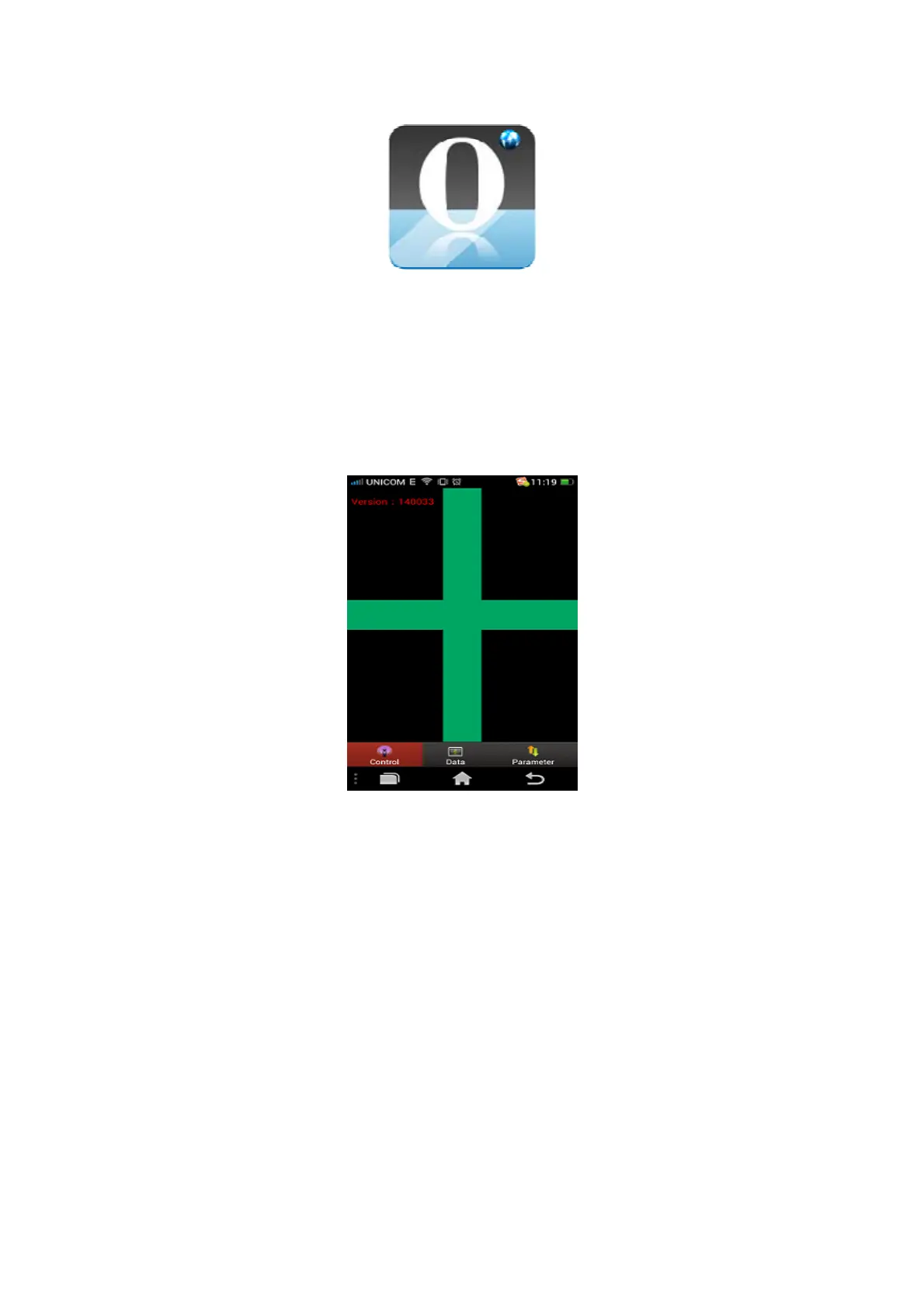

S4V2‐GCS

StarttheGCS;youwillseetheserialnumberandfirmwareversionfortheautopilotontheinterfaceoncethe
datahasconnected.

AfterconnectingyourWI‐FItotheGCSsuccessfully,youcanalsoseethereal‐timeupdateddataonthe"Data"
Page.


6.2 TXSetup
1) Selectfixedwingmodelonyourtransmitter.Removeanychannelmixing.
2) FUTABARadio:AllchannelsshouldbeNormal(notreversed).
3) JR,JTm,SpektrumandWFLYRadios:Reverseallchannels.

Step1:SelectTwoSwitches
Ensureyourradiohastwosetsoftwo‐wayswitches.ProgrammeCH5andCH6
totheseswitchestocontrolthe
flightmodes:

