YS-S4 Multi-rotor Autopilot User Manual V1.4

14







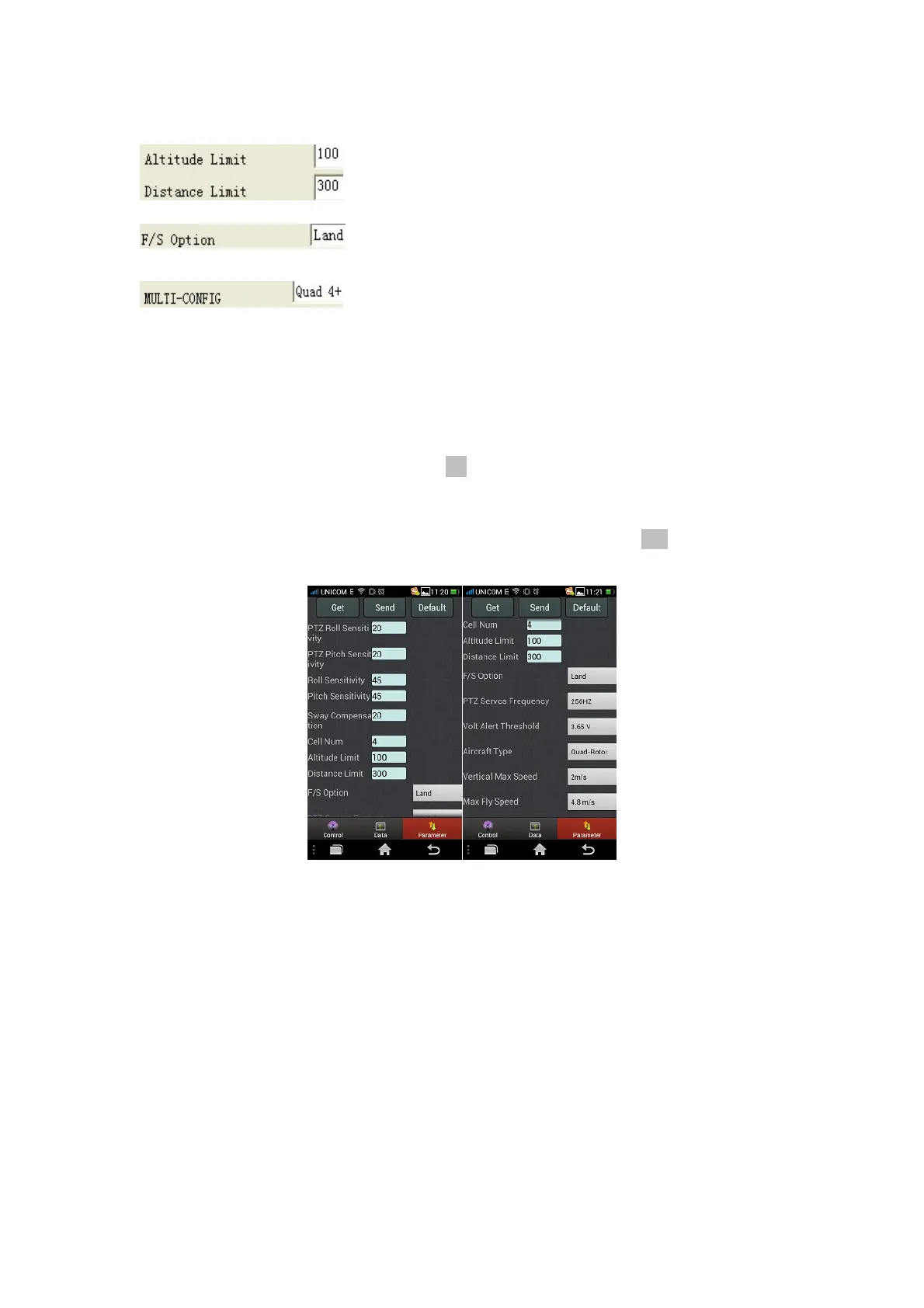

6.3.2 PhoneParameterAdjustment

Pressthe“Parameter”optionontheGCSwhentheWI‐FImoduleisconnectedanddataisbeingcommunicated.

Togetthecurrentparametersoftheaircraft,clicktheGetbuttontogetthe currentparameters(Clickseveral

timesifitfails).



AfterchanginganyparametersettingsawayfromthecurrentsettingsyoumustclicktheSavebutton(clickseveral

timesifitfails),and therevisedparameterstotheautopilotwillbesaved.



6.4 TXCali bration

TheremotecalibrationoftheYS‐S4canbeachievedintwoways:mobilephone(mustbeconnectedtotheWI‐FI)

orPCcalibration.



6.4.1 TransmitterchannelcalibrationbyPC

Step1:Selectthecorrectsticklayout



Enter your aircraft type.

The maximum height and distance allowed can be specified. The

maximum is 1500 meters, min 10 meters.

Set up Fail/Safe mode（Auto RTH and Land, Auto Land and Auto Hover are the

options)
