YS-S4 Multi-rotor Autopilot User Manual V1.4

8



g. OnlytheUSBinterfacecanbeusedforParameterSettingandFirmwareUpgrade.TheCOMportisalsoan

interfacetoconnecttoaWI‐FImodule.



h. TheYS‐S4DOESNOTsupportESCcalibr ationTheESCsshouldbecalibratedindependentlyreferringtothe

manufacturersupplied

ESCmanual.ItisagoodideatodisabletheESClow‐voltagecutout.WithmostESCsall

youneeddoisconfigurethemtoNiMH.

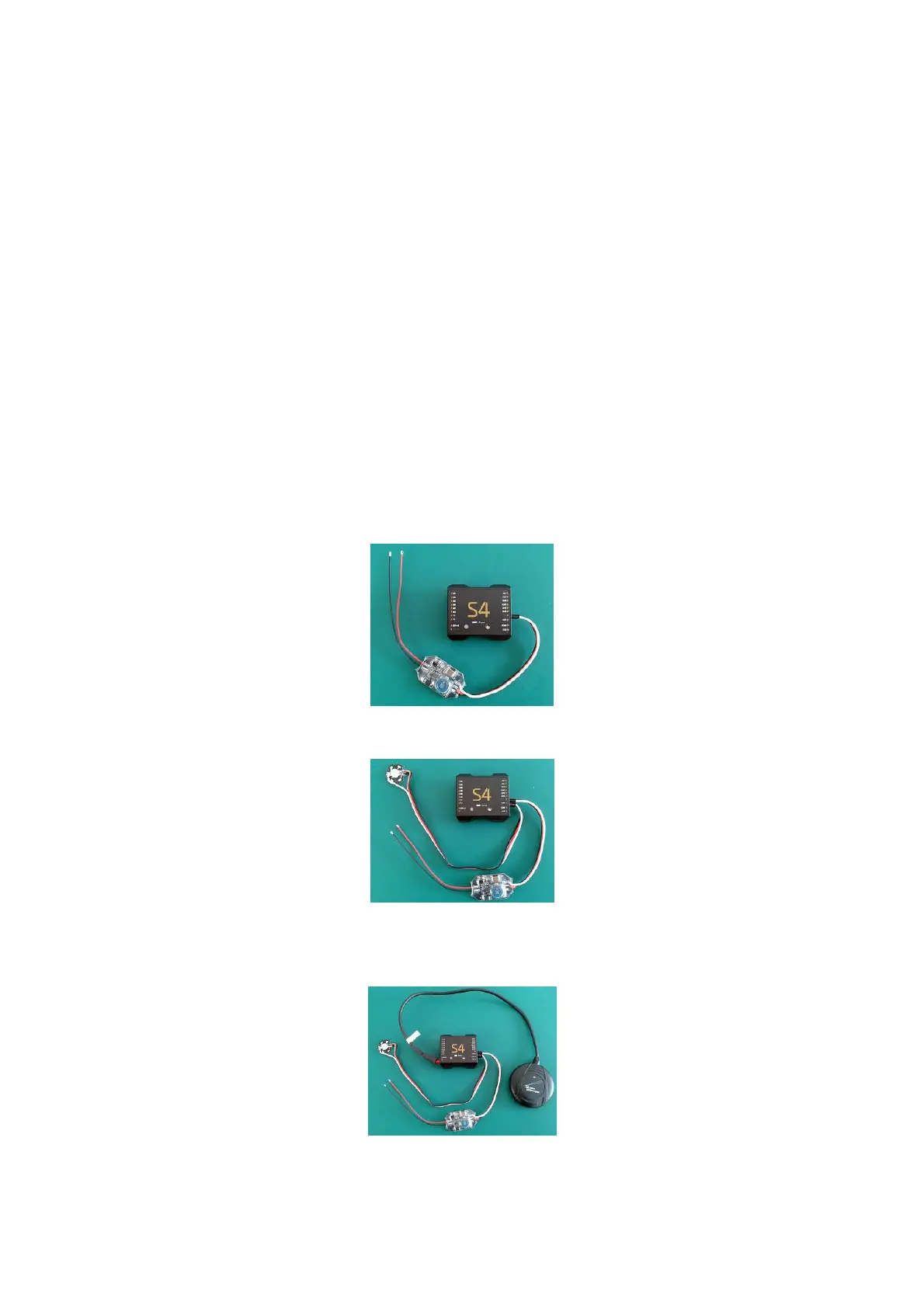

5.2  HowtoConnecttheModules

1)Connectthepowersupplymodule



Asshownbelow,one3‐corecableisusedtoconnecttheS4tothepowerunit,theWHITE‐coreisup,the

RED‐coreisinthemiddleandtheBLACK‐coreisbelow.



TheREDandBL ACKbarewiresshouldtobesoldered

tothePositiveandNegativepoleofthebatterypack

connector(3S‐6SLipo).



2) ConnecttheLEDmodule

TheLEDmoduleshouldbeconnectedtotheLEDinterfaceoftheS4maincontr ollerasshown.



3)ConnecttheGPSmodule

TheGPSmodulehasredandblackends;theREDendisconnectedtotheS4GPS‐Rinterface,andtheblackendto

theGPS‐Binterface.Thesideoftheslotfacesup.



4)Connectthereceiver
