ZF AV 110 - Page 101

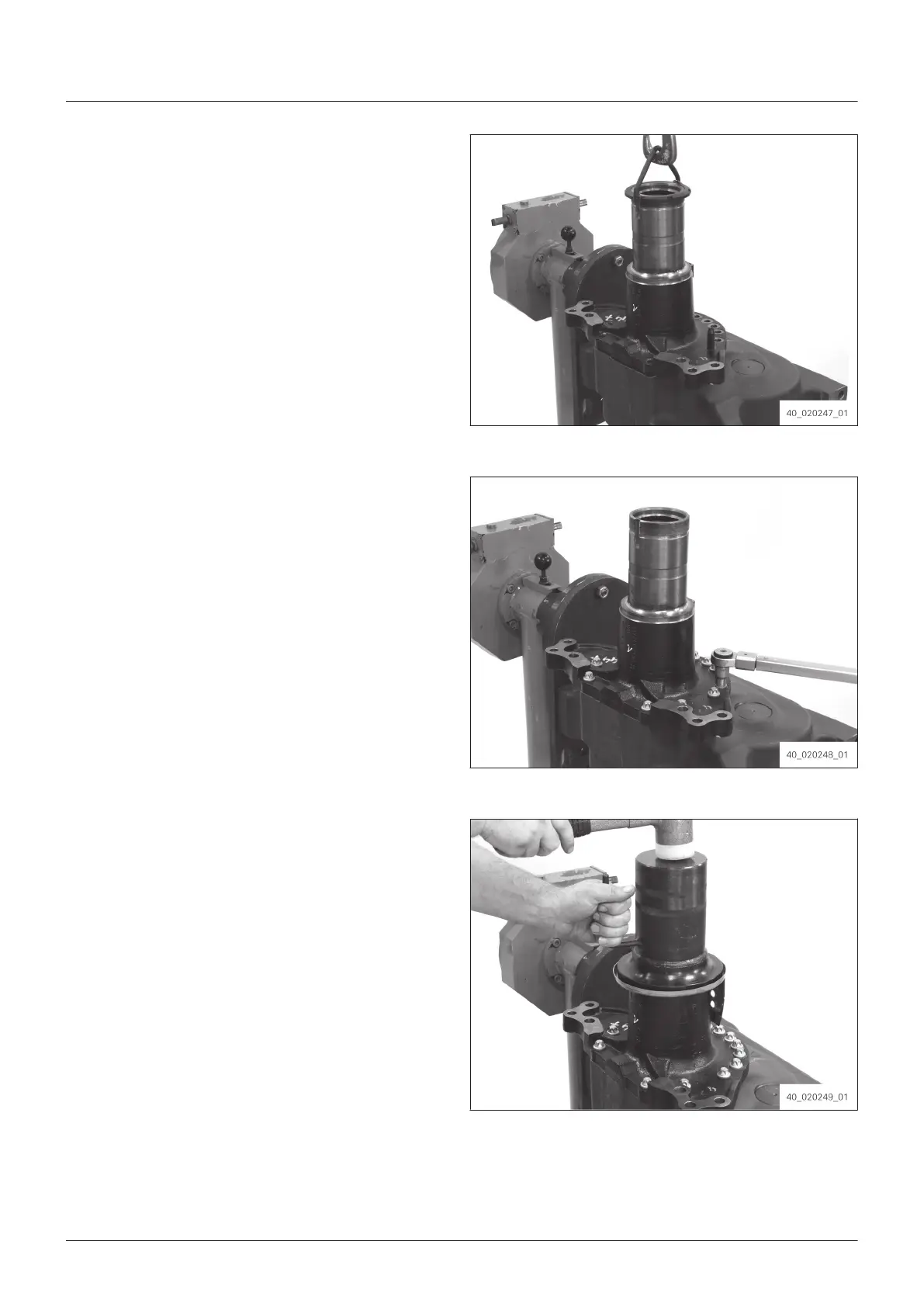

64. Place hub carrier with 5870.281.054 [Eye
nut]
and crane onto the portal housing.
Fig. 193
65. Fix hub carrier with Torx screws.
T
ightening torque: 185 Nm
Fig. 194
66. Put the screen sheet onto the hub carrier.
67.
Align the recess of the screen sheet on the
boss of the hub carrier.
68. Align the recess of the
AA00.387.830 [Pressing fixture no.] on the
boss of the hub carrier.
69. Use AA00.387.830 [Pressing fixture no.] to
force the screen sheet onto the hub carrier.
Fig. 195
Assembly
EN 4472.751.001 - 2015-11
101
