9.4 Install shaft seal onto the drive
Special tools:
▪ AA02.016.086 Plug inser
t
▪ AA00.640.418 Support fixture
▪ 5870.203.002 Power screwdriver
▪ 5870.240.002 Locking mechanism
▪ 5870.048.216 Driver tool
Operating supplies and auxiliary materials:
▪ 0666.690.191 Spirit
▪ 0666.690.313 Sealing compound

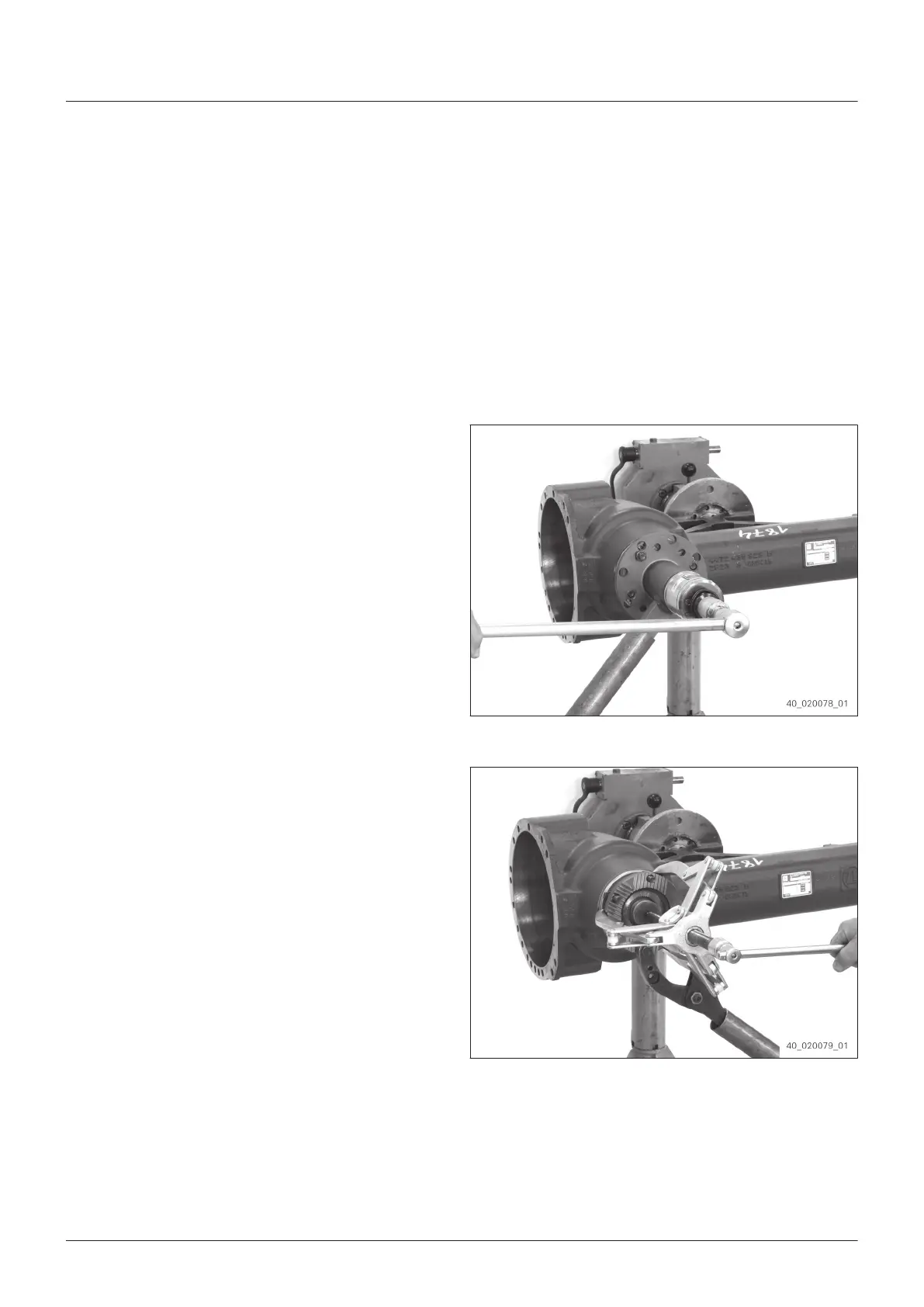

1. Use AA02.016.086 [Plug insert],
AA00.640.418 [Suppor
t fixture] and
5870.203.002 [Power screwdriver] to loosen
the double hexagon nut.
Fig. 152
2. Use 5870.240.002 [Locking mechanism] to
pull t
he input flange with a three-armed
puller from the pinion.
Fig. 153
Assembly
86
EN 4472.751.001 - 2015-11
