ZF AV 110 - Hub and Portal Drive Dismantling

8.5 Remove and dismantle hub.
8.5.1 Remove hub
Special tools:
▪ 5870.345.036 Pr
y bar
▪ 5870.401.146 Slotted nut wrench
▪ AA01.395.095 Load carrying fixture

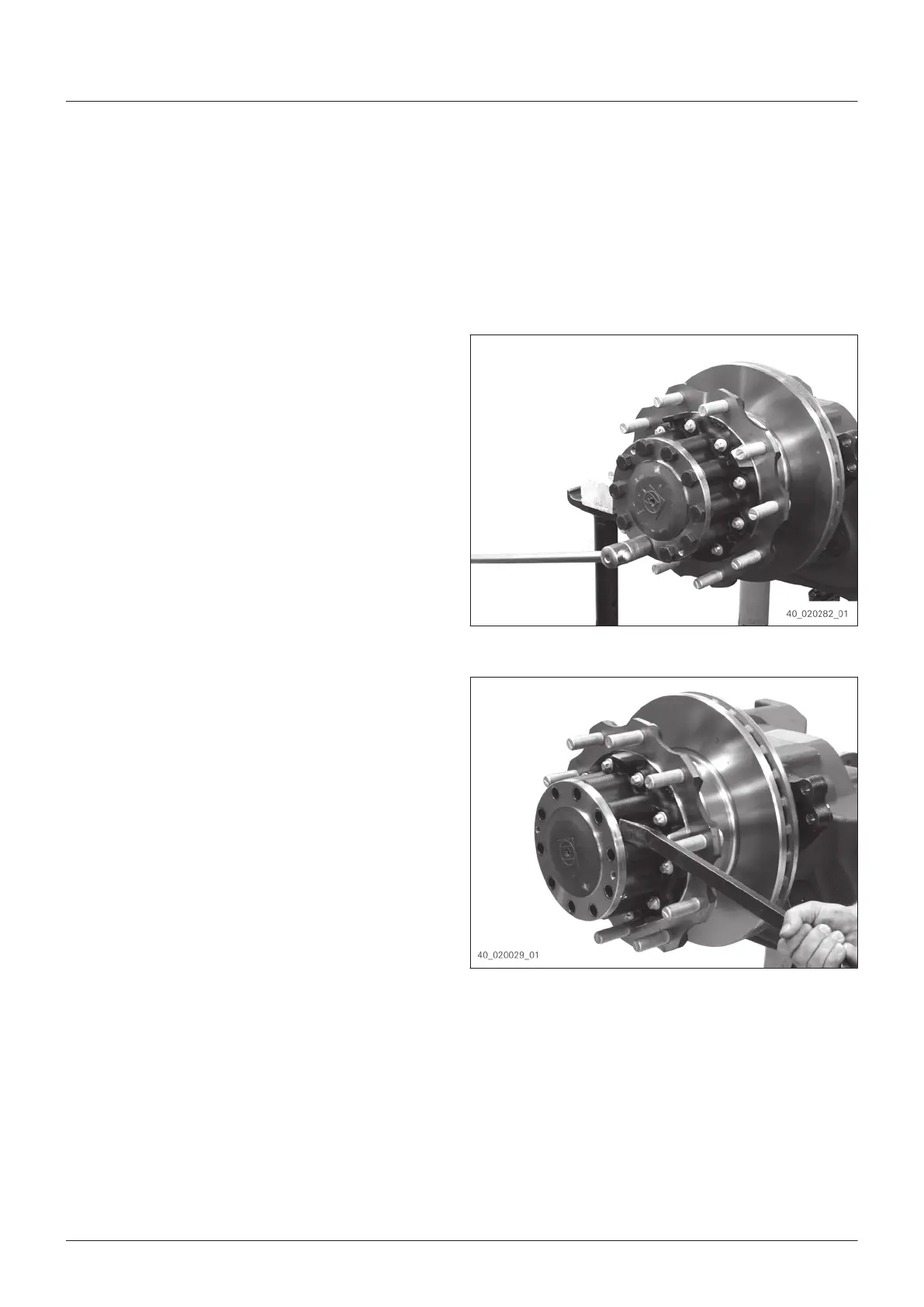

1. Fix hub. Loosen bolted connection of the
f
lange shaft.
Fig. 34
2. Pull out flange shaft with 5870.345.036 [Pry
bar] and remove.
Fig. 35
Dismantling
42
EN 4472.751.001 - 2015-11
