ZF AV 110 - Workshop Equipment; Special tools

7 Workshop Equipment
7.1 Special tools
The required quantity is listed. Please inquire as to packaging unit before ordering.

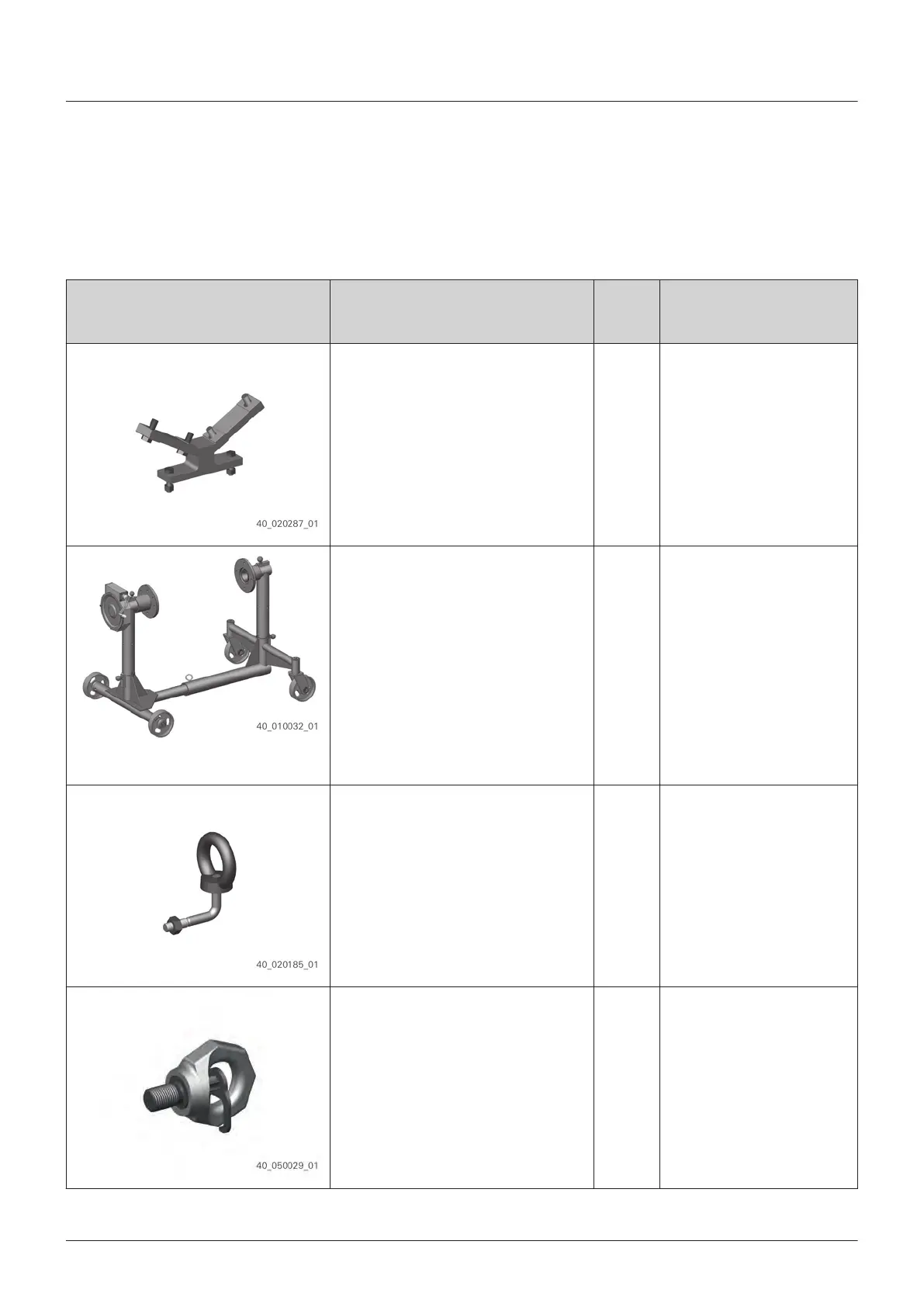

Figure Order no.
Designation
Chap
ter/section
Quantit
y
Comment
5870.350.093
F
ixture
▪
Clamp the axle, page 36
1
5870.350.000
Assembl
y truck
▪
Clamp the axle, page 36
▪
Dismantling left portal drive,
page 48
▪
Dismantle right portal drive,
page 58
▪
Assemble left portal drive,
page 88
▪
Assemble right portal drive,
page 103
1
5870.281.046
Load car
rying fixture
▪
Removal of brake, page 39
▪
Install brake, page 127
1
5870.204.084
Ey
ebolt
▪
Removal of brake, page 39
▪
Install brake, page 127
1 M16
Workshop Equipment
EN 4472.751.001 - 2015-11
17
