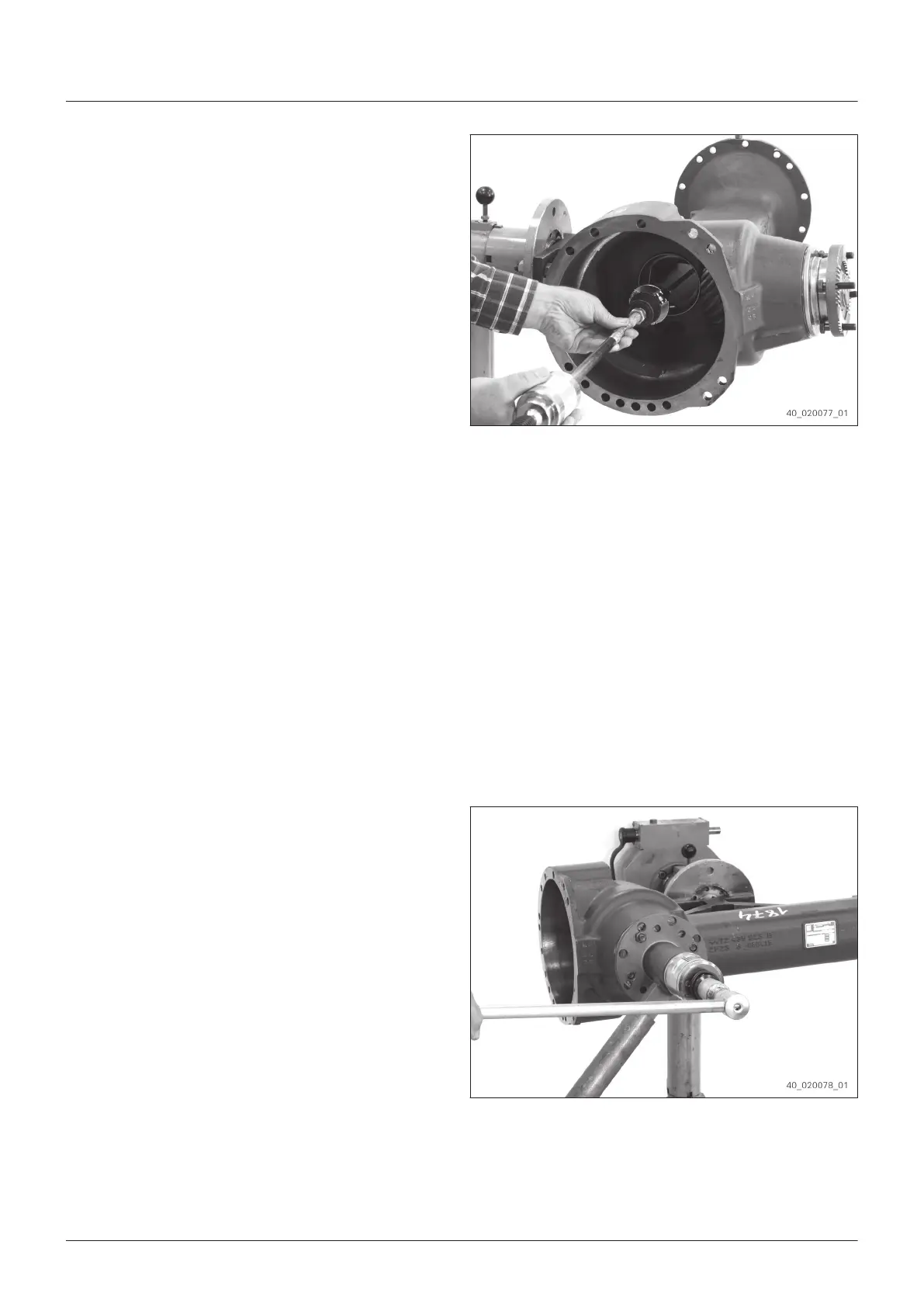

5. Use a striker to remove the bearing outer
r
ing.
6. Remove shim.
Fig. 111
8.11 Remove input
Special tools:
▪ AA02.016.086 Plug inser
t
▪ AA00.640.418 Support fixture
▪ 5870.203.002 Power screwdriver
▪ 5870.240.002 Locking mechanism
▪ 5870.400.001 Offset screwdriver
▪ 5870.080.044 Press-out device
▪ 5873.002.051 Gripping device
▪ 5873.002.001 Basic tool
▪ 5870.300.019 Extracting device
▪ 5870.300.020 Extracting device
1. Use AA02.016.086 [Plug insert],
AA00.640.418 [Suppor
t fixture] and
5870.203.002 [Power screwdriver] to loosen
the double hexagon nut.
Fig. 112
Dismantling
70
EN 4472.751.001 - 2015-11
