9.5.2 Install left portal drive
Special tools:
▪ AA00.844.345 Load r
ing
Operating supplies and auxiliary materials:
▪ 0666.790.037 Sealing compound
1.
Risk of crushing due to moving load.
Slight or moder
ate injury possible.
ð
Move load slowly and carefully.
ð
Do not reach into danger area!

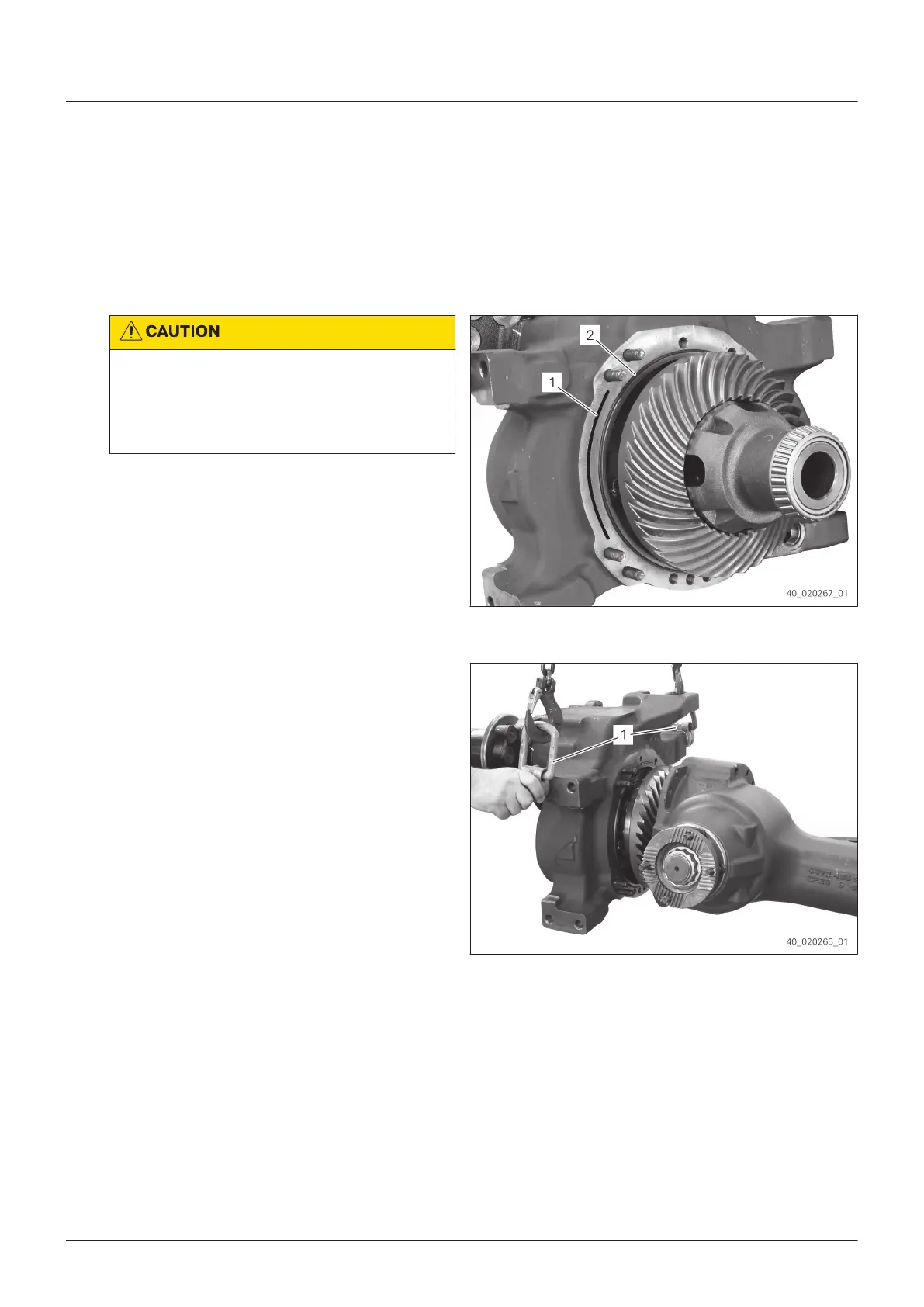

Slide differential onto the drive gear.
2.
Apply 0666.790.037 [Sealing compound] (1)
onto the portal housing.
3. Grease O‑ring (2) and insert it into the
annular groove on the portal housing.
Fig. 196
4. Bolt in two pieces AA00.844.345 [Load ring]
(1) ont
o the portal housing.
Fig. 197
Assembly
102
EN 4472.751.001 - 2015-11
