ZF AV 110 - Install Mounting Parts

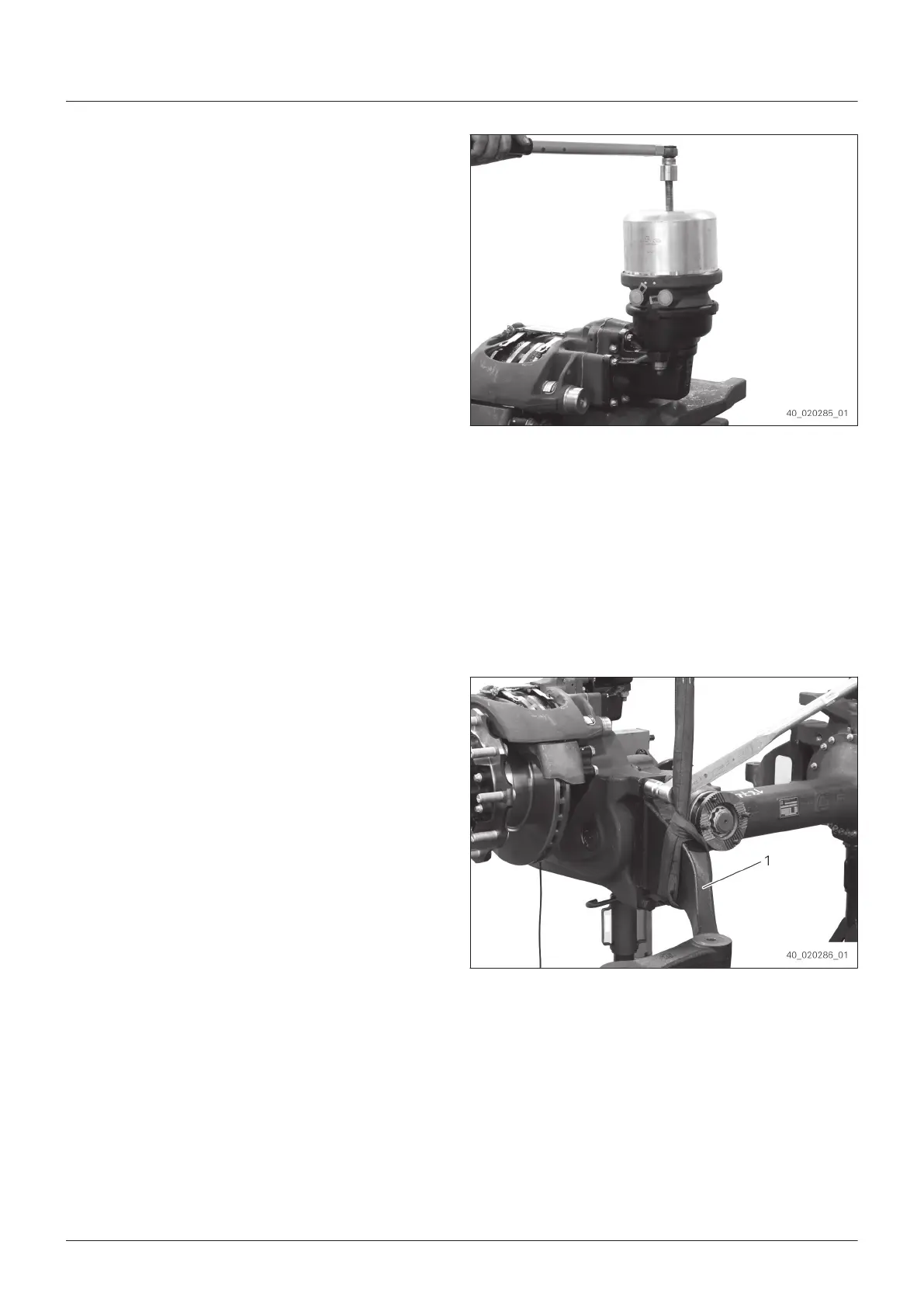

11. Bolt in emergency loosening screw at the
br
ake cylinder.
Tightening torque: 20 Nm (+5 Nm)
Fig. 267
9.12 Install mounting parts
Special tools:
▪ 5870.204.044 Locating pin
Oper
ating supplies and auxiliary materials:
▪ 0666.690.078 Sealing compound
1. Screw in two units 5870.204.044 [Locating
pin].
2.
Fix spring carrier (1) by means of lifting
device.
3. Push on spring carrier (1) and align in
horizontal position.
4. Manually bolt in two screws with disks into
the axle.
5. Remove two pieces 5870.204.044 [Locating
pin].
6. Manually bolt in two screws with disks into
the axle.
7. Tighten hexagon screws.
Tightening torque: 620 Nm
Fig. 268
Assembly
EN 4472.751.001 - 2015-11
129
