ZF AV 110 - Remove and Dismantle Left Portal Drive; Remove Left Portal Drive; Dismantling Left Portal Drive

8.7 Remove and dismantle left portal drive
8.7.1 Remove left portal drive
Special tools:
▪ AA00.844.345 Load r
ing

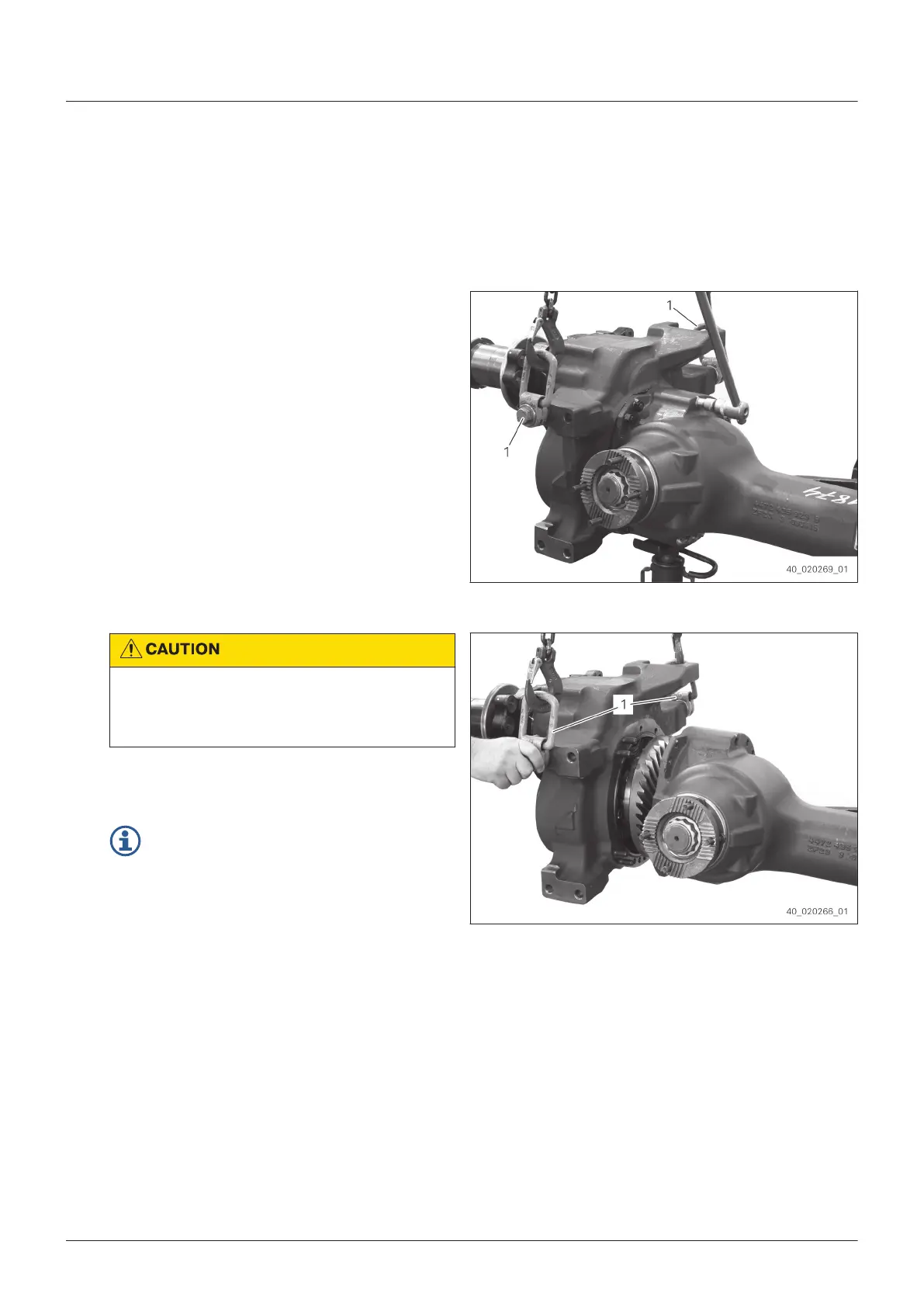

1. Bolt in two pieces AA00.844.345 [Load ring]
(1)
onto the portal housing. Loosen Torx
screws and hexagon nuts.
Fig. 50
2.
Risk of injury due to falling parts.
Slight or moderate injury possible.
ð
Secure parts against falling down.
Remove portal with differential and stub
shaf
t.
Stub shaft can also be removed from the
r
ight side.
3. Pull stub shaft out of the differential.
4.
Pull differential from portal.
5. Remove two pieces AA00.844.345 [Load
ring] (1).
Fig. 51
8.7.2 Dismantling left portal drive
Special tools:
▪ 5870.350.
110 Connection plate
▪ 5870.350.000 Assembly truck
▪ AA02.041.051 Driver tool
▪ AA01.311.408 Rapid grip
Dismantling
