8 Dismantling
8.1 Clamp the axle
Special tools:
▪ 5870.350.093 F
ixture
▪ 5870.350.000 Assembly truck

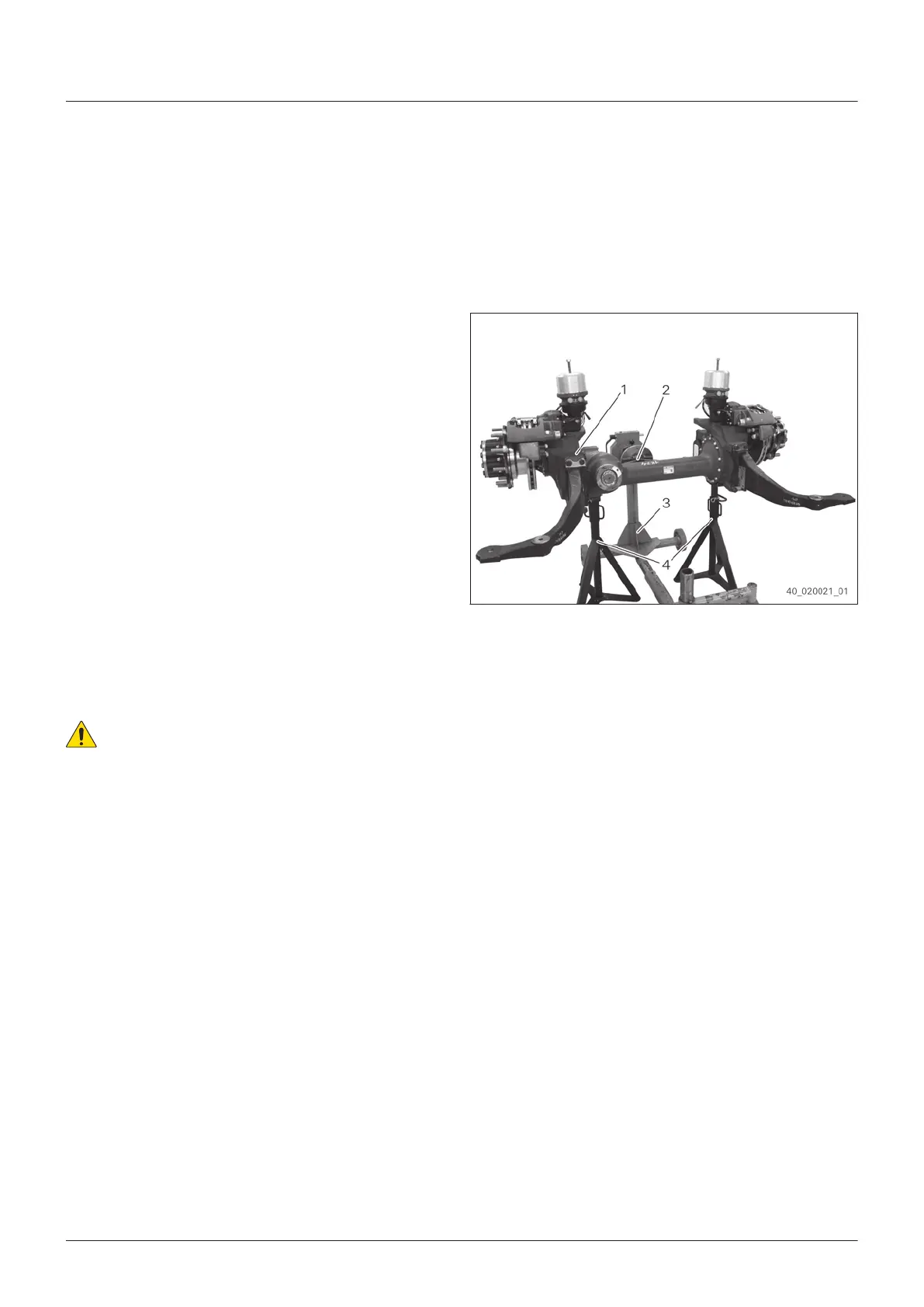

1. Fix axle (1) with 5870.350.093 [Fixture] (2) to
5870.350.000 [Assembl
y truck] (3). Support
axle from below (4).
Fig. 21
8.2 Drain oil
Observe the environmental regulations
(see General safety instructions) .
