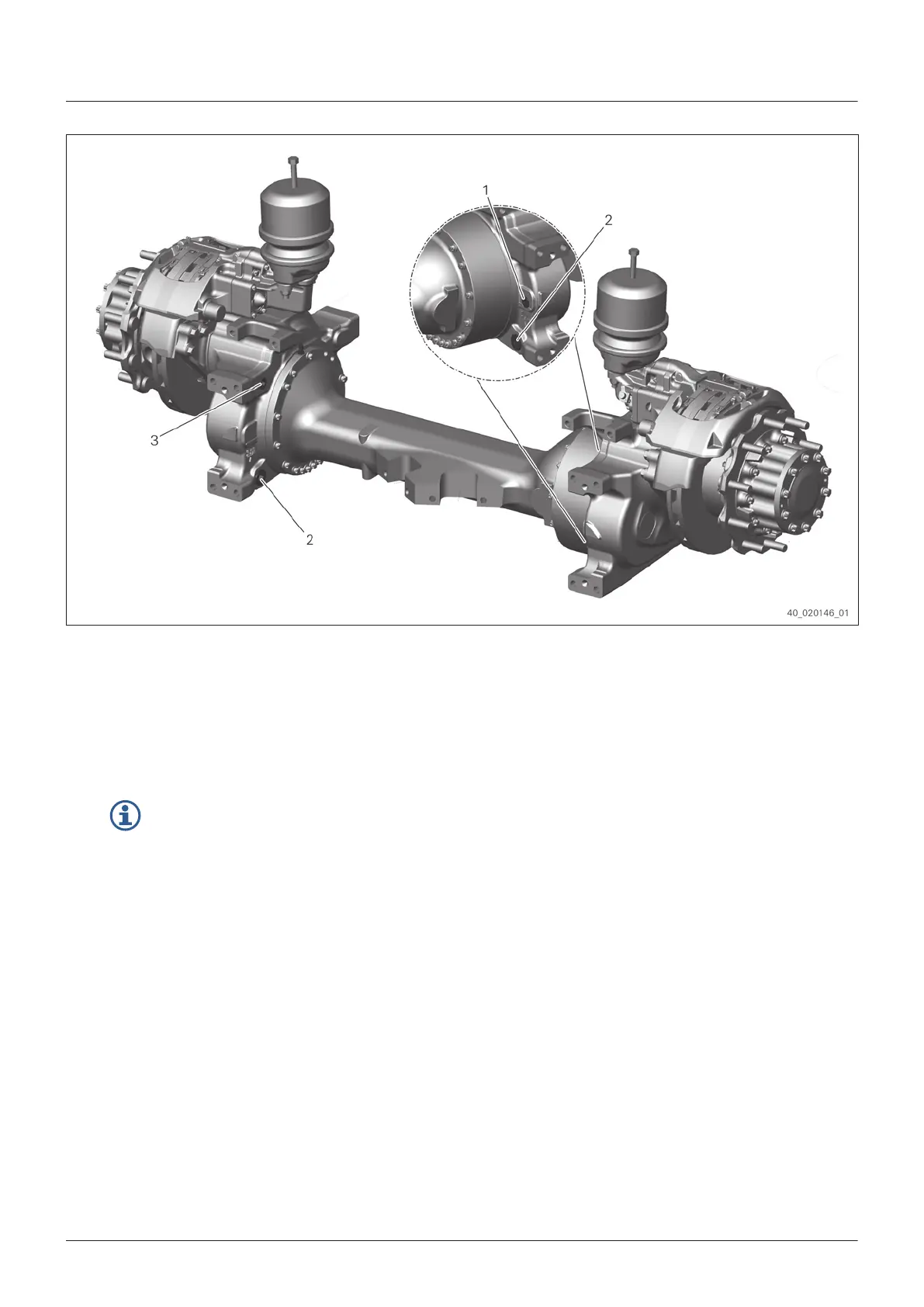

Fig. 22
1 Screw plug oil level
3 Screw plug oil fill
2 Screw plug oil drain
1. Place suitable containers under the oil drain screw plugs (2).
2.
Remove screw plug oil filling (3).
In case of the version with mounted breather, slight overpressure can build up in the axle.
3. Remove screw plug oil level (1) and O‑ring.
4.
Remove screw plugs oil drain (2) and O‑ring.
5. Completely drain oil into the containers.
Dismantling
