ZF AV 110 - Setting Backlash and Bearing Torque

9.3 Setting backlash and differential bearing rolling torque and checking axial run-out and contact
patt
ern.
Special tools:
▪ 5870.058.070 Driver tool
▪ 5870.260.003 Handle
▪ AA01.266.870 Load-lifting equipment
▪ AA02.060.628 Test device
▪ AA00.844.345 Load ring
Setting backlash

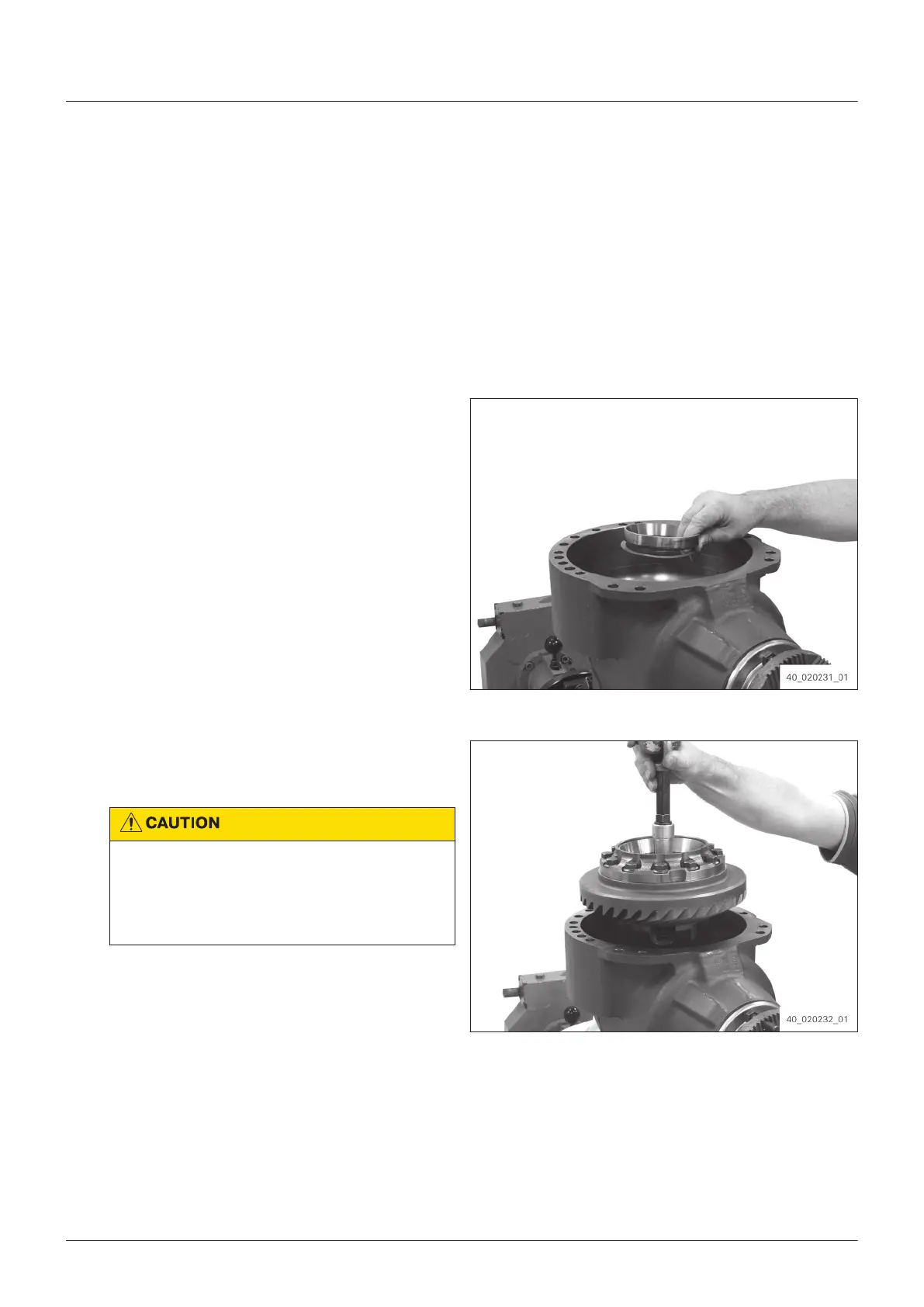

1. Insert shim with s = e. g. 1 mm into the axle
housing.
2.
Use 5870.058.070 [Driver tool] and
5870.260.003 [Handle] to insert the bearing
outer ring.
Fig. 141
3. Cover several drive and coast flanks on the
cr
own wheel with marking ink.
4.
Risk of crushing due to moving load.
Slight or moder
ate injury possible.
ð
Move load slowly and carefully.
ð
Do not reach into danger area!
Use AA01.266.870 [Load-lifting equipment]
t
o insert the differential into the axle housing.
Fig. 142
Assembly
EN 4472.751.001 - 2015-11
81
