ZF AV 110 - Dismantling Hub

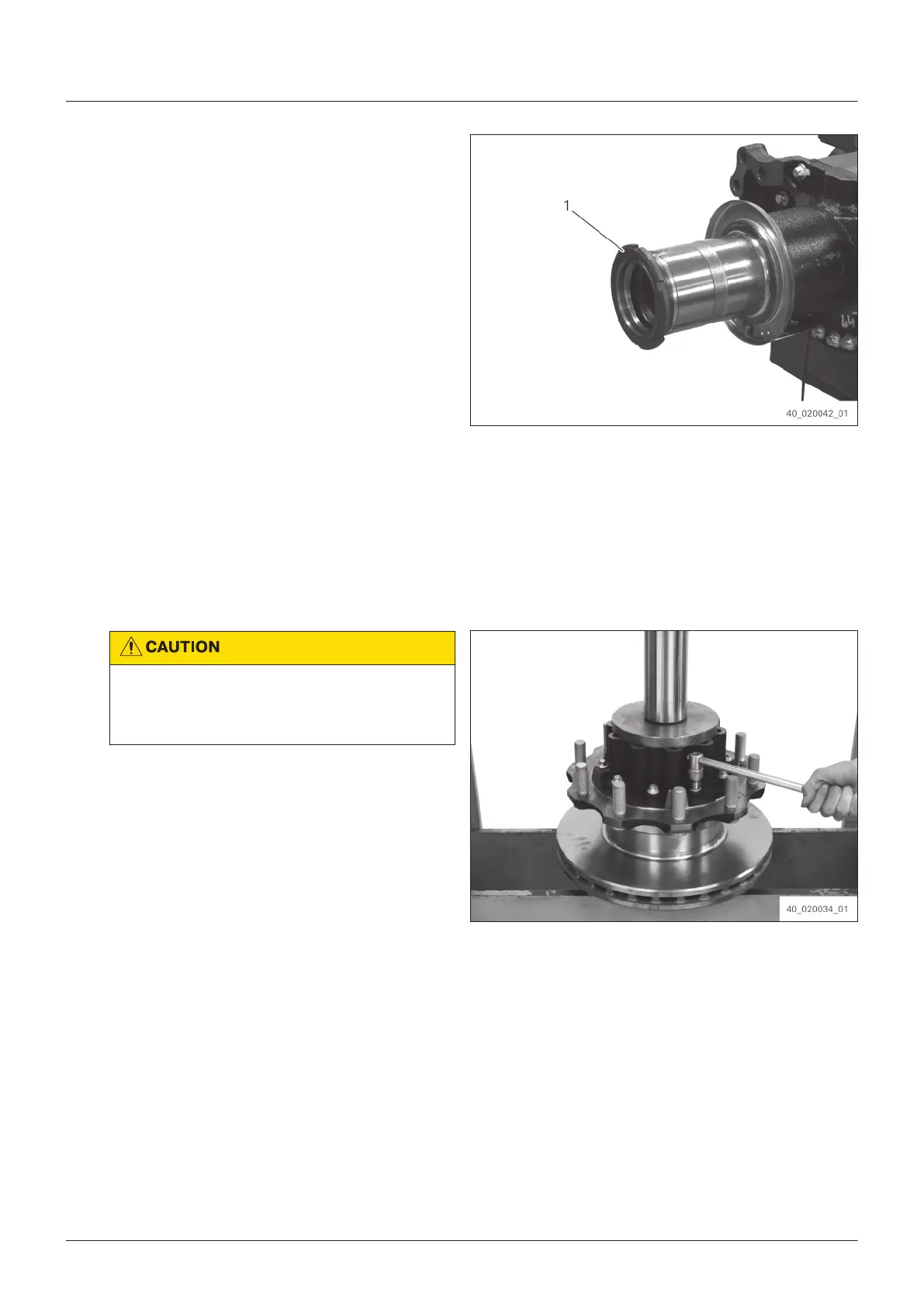

10. To protect the thread from damage, bolt the
slo
tted nut (1) flush onto the hub carrier.
Fig. 39
8.5.2 Dismantling hub
Special tools:
▪ 5870.345.036 Pr
y bar
▪ 5870.100.069 Assembly fixture
1.
Risk of crushing due to hydraulic tool.
Slight t
o moderate injury possible.
ð
Do not reach into danger area.
Use press to fix hub.
2.
Loosen Torx screws.
3. Remove hub.
Fig. 40
Dismantling
44
EN 4472.751.001 - 2015-11
