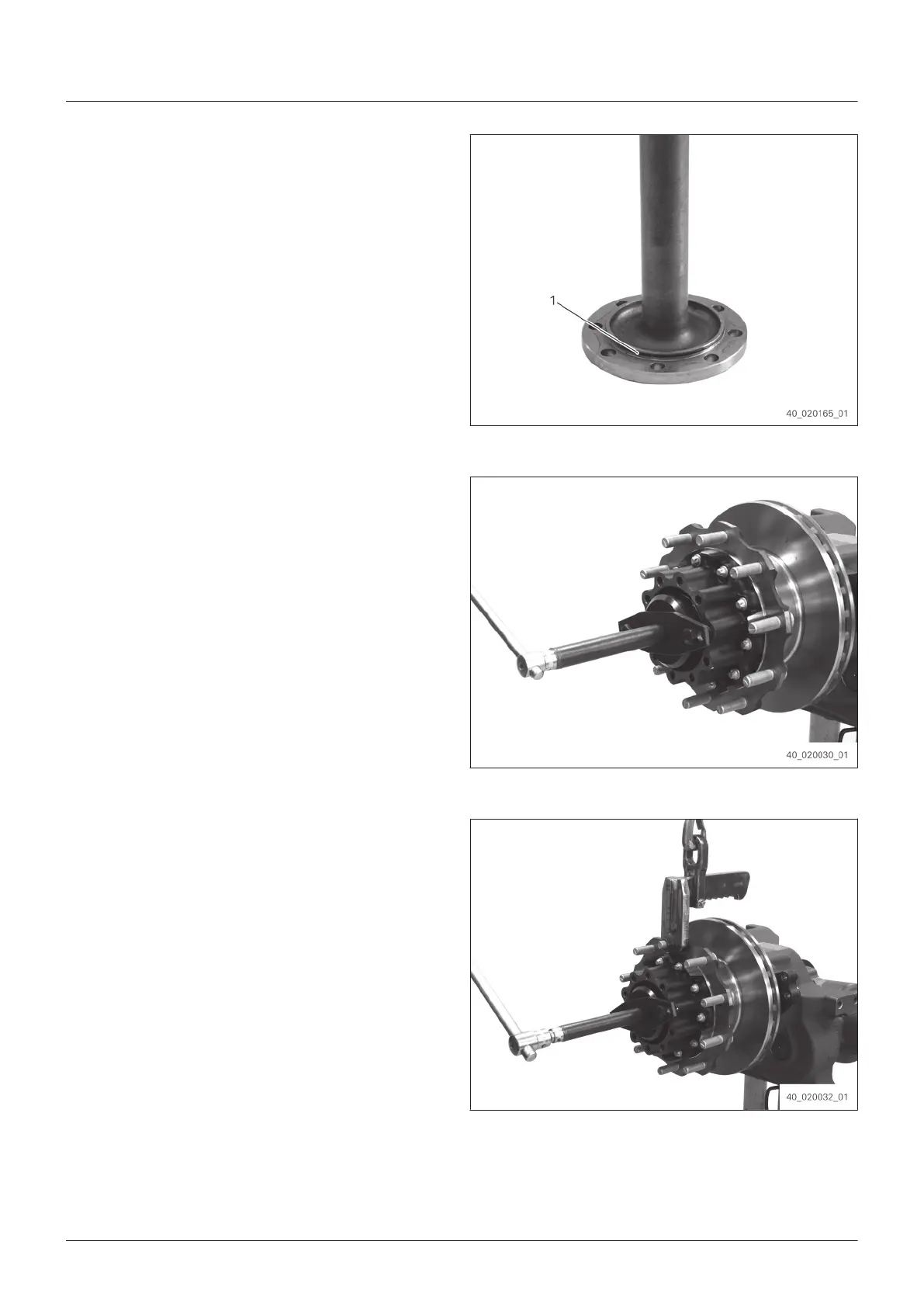

3. Remove O‑ring (1) from flange shaft.
Fig. 36
4. Unlock slotted nut.
5.
Loosen slotted nut with
5870.401.146 [Slotted nut wrench].
6. Remove retaining plate.
Fig. 37
7. Use AA01.395.095 [Load carrying fixture] to
f
ix the hub to the crane.
8. Loosen slotted nut with
5870.401.146 [Slotted nut wrench].
9. Pull hub from the hub carrier.
Fig. 38
Dismantling
EN 4472.751.001 - 2015-11
43
