ZF AV 110 - Install Right Portal Drive

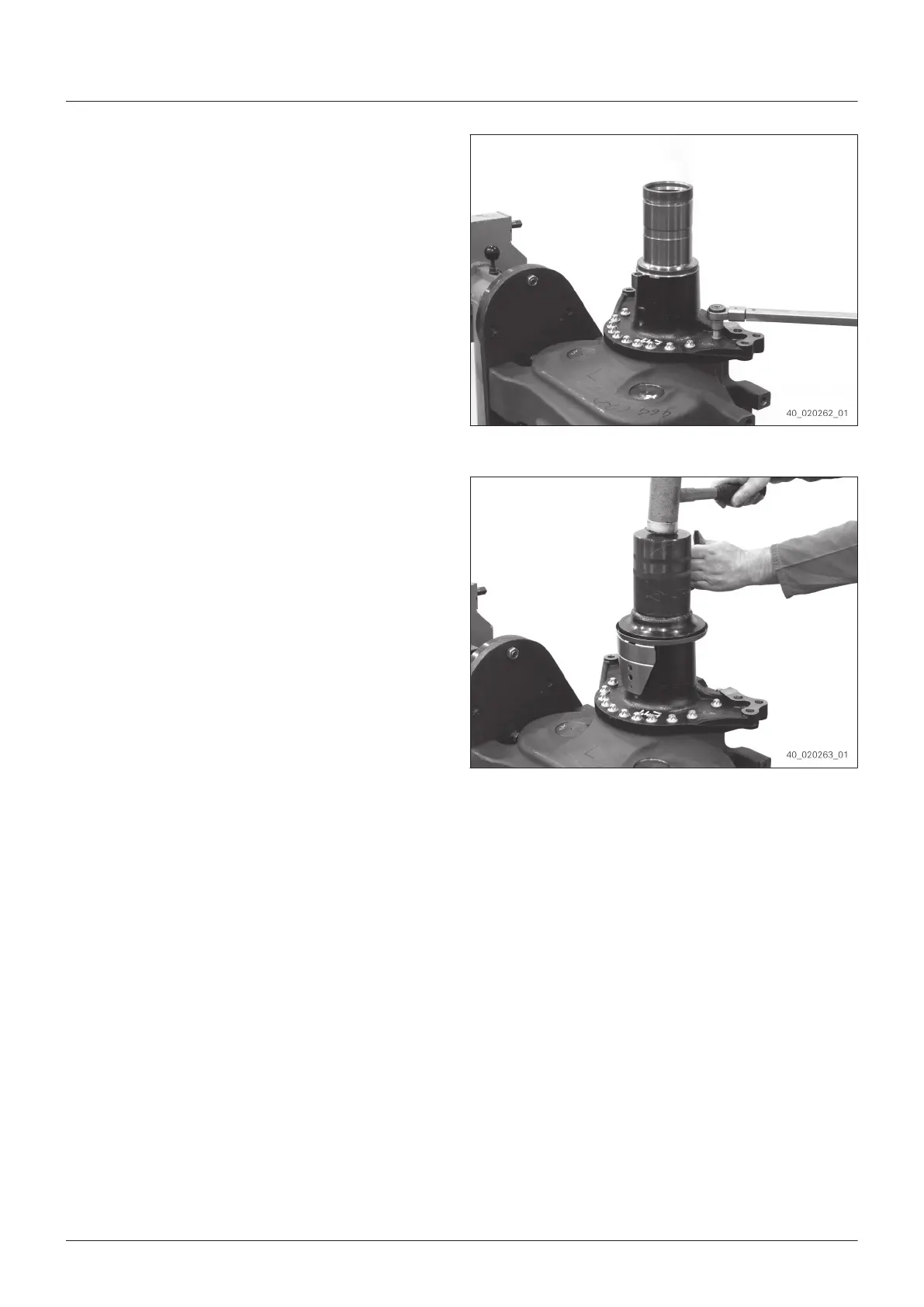

64. Fix hub carrier with Torx screws.
T
ightening torque: 185 Nm
Fig. 235
65. Put the screen sheet onto the hub carrier.
66.
Align the recess of the screen sheet on the
boss of the hub carrier.
67. Align the recess of the
AA00.387.830 [Pressing fixture no.] on the
boss of the hub carrier.
68. Use AA00.387.830 [Pressing fixture no.] to
force the screen sheet onto the hub carrier.
Fig. 236
9.6.2 Install right portal drive
Special tools:
▪ AA00.844.345 Load ring
Assembly
